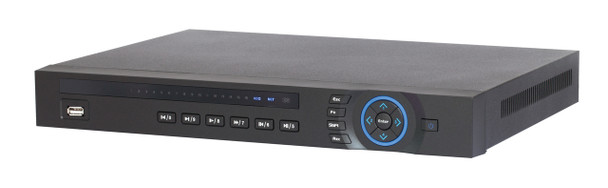

Dahua OEM HCVR5216A-V2 16 channel Hybrid DVR HD-CVI CCTV IP

  • HCVR5216A-V2 16ch Hybrid Digital Video Recorder HD-CVI CCTV IP
  • OEM HCVR5216A-V2 16 channel Hybrid DVR HD-CVI CCTV IP
  • Dahua PSS Remote Client Surveillance Software
  • Dahua Smart PSS CMS Remote Client Surveillance Software
  • Dahua Mobile Viewing Applications
  • HCVR5216A-V2 Video Recorder System Diagram
No Longer Available - Contact Us

Product Description

Dahua OEM HCVR5216A-V2 16ch Hybrid Digital Video Recorder is your next generation surveillance solution with maximum cost effectiveness yielding pro performance. The sleek 1U unit delivers up to real-time 720P HD CCTV (HD-CVI) or IP Video as well as 960H CCTV Analog support in any combination on any of its sixteen (16) channels. The Device can also provide real-motion (15fps) 1080P HD video recording on all channels as well as 1080P real-time live viewing. Dual Streaming H.264 delivers flexibility for bandwidth requirements while numerous remote viewing applications from CMS software to web browser and mobile viewing for fully professional, convenient operation. Even further a Local display output of HDMI for 1080P monitors to front panel control, USB interface and more prove a versatile surveillance system at minimal cost. Be it for new security systems or upgrades of existing CCTV deployments, there is few market options comparable to this hybrid video recorder.

Dahua OEM HCVR5216A-V2 Main Features:

  • Linux Embedded 16ch Hybrid Video Recorder "Tribrid"
  • 16 channel each allowing Analog CCTV at 960H, HD CVI or IP Video at up to 1080P
  • Advanced H.264 dual-streaming, 480fps or 30fps per channel Real-time viewing up to 1080P HD
  • Real-time 30fps per channel at 720P HD Video Recording or Real-motion 15fps per channel at 1080P HD
  • 1080P HDMI, VGA & BNC TV offer simultaneous output plus Second HDMI for extra HD output
  • Remote monitoring / System Settings: Multi-Web Browser support, CMS Surveillance Software (PSS/Smart PSS)
  • Mobile Viewing DMSS App for iPhone, iPad, Android plus Windows Smart Phones
  • Support Multi-brand network cameras: Dahua, ACTi, Arecont Vision, AXIS, Bosch, Brickcom, Canon, Honeywell, Panasonic, Pelco, Samsung, Sony, Vivotek, etc.
  • Numerous Network Protocols: ONVIF Version 2.2 compliant, HTTP, IPv4/IPv6, TCP/IP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, Alarm Server
  • 4, 8 or 16 channel synchronous real-time playback, GRID interface plus smart search
  • Scheduled Continuous, Motion Detection (IP Edge only) or Alarm Recording plus Manual Start/Stop Recording
  • Alarm Triggers: FTP, Email Notification, Video Push, Monitor, PTZ, Tour, Audible Alert, Visual Screen Indicators
  • 3D intelligent positioning for Dahua PTZ cameras
  • 1x RJ-45 Ethernet Ports (10/100M/1000M)
  • 2x SATA On-board HDDs up to 8TB Internal Storage
  • 2x USB 2.0 (Support Export, Mouse)
  • Alarm I/O: 16x Alarm Input, 6x Relay Output
  • Two Way Audio: 16x Audio Input, 1 Audio Output
  • RS-485: PTZ Telemetry
  • Dimension (W×D×H): 1U, 14.76" × 11.22" × 2.17"
  • Weight: 5.18 lbs (without HDD)
  • NOTE: OEM and Branded Dahua Units Available for Most Models
  • Base Model sold without Hard Drive, Numerous Storage Size Options Available, Contact us today!


Small but Powerful Hybrid Digital Video Recorder:
The benefits are clear with this Dahua 16ch Hybrid Video Recorder, it delivers all-in-one functionality of a traditional CCTV DVR, a new breed of HD CCTV (HD-CVI) DVRs and an IP Network Video Recorder in a single ultra-compact, feature packed device. The Real-time (480fps, 30fps per cam) 720P HD video or real-motion (240fps, 15fps per cam) 1080P HD video recording meets and exceed most professional requirements. Individually configured channels support CCTV, HD-CVI or IP Cameras in any combination and of course with the latest H.264 compression. The units are equipped with many high-end features despite their attractive price, users can enjoy Real-time 1080P viewing locally via HDMI while remote monitoring is possibly even more impressive. The Full range of web browser, CMS Client Software (PSS / Smart PSS) and Mobile Viewing Apps (DMSS) manage multiple surveillance systems, simultaneously FREE of charge.

Smart Functions, Easy Operation:
Whether you are a pro installer or a D-I-Y individual installing the unit, setup can be completed in but a few minutes using the built-in setup wizard. The ICON and Menu driven GUI locally provides easy navigation for all sorts of pro-level system settings. The units can even be configured in full remotely by utilizing web browser or client software. Full featured operation is supported in HD via the local HDMI, but flexible and advanced search methods to channel event time-lines or synchronized multi-channel playback with many playback options all stand-out as excellent product advantages. The comprehensive surveillance experience is richly delivered with well developed, consistently updated, remote viewing applications that are all included with the purchase, requiring no future upgrade fees. A truly innovative Linux Embedded recorder, you will experience effective multi-format security camera support, added device integration and easy to use remote monitoring at a cost that will amaze you compared to its results, especially when using 1080P HD CCTV cameras.

Sleek 1U Construction, Best in Class functions:

Even though the Dahua OEM HCVR5216A-V2 16ch Hybrid Digital Video Recorder is small in size, 1U to be exact, the unit is packed with pro attributes. You can make use of Two Way audio with 4 separate channel inputs and 1 channel output or utilizes the sixteen (16) alarm inputs and 3 relay outputs for all sorts of Alarm I/O possibilities. This unit supports RS-485 for PTZ Camera Control while additionally includes a Gigabit network interface again proving it’s geared for performance. On-board support for two SATA hard drives for up to 8TB local storage and USB device or network back-up/export (or optional disc burner) allow easy video management. All around a superior solution to traditional CCTV Digital Video Recorders the units are sure to give you satisfaction for every penny spent.

A2Z Security Expert Product Review/Tips:
The Dahua surveillance equipment (including OEM versions) is known for offering high performance per cost ratio and with a good quality. A2Z Security Cameras recommends these products for applications demanding high performing results with maximum cost effectiveness. The units are absolutely great for the majority of projects, especially CCTV and easy migration to HD CCTV HD CVI 1080P format using existing coaxial cabling. However for IP Cameras, unless it’s a Dahua (or OEM version Dahua) IP Camera we recommend testing or checking for compatibility to support certain functions like VMD.


Last Updated March 25, 2016
