Dahua OEM HCVR7416L 16ch Hybrid DVR 1080P HD-CVI CCTV IP

Write a Review
  • Dahua HCVR7416L 16ch Hybrid DVR 1080P HD-CVI CCTV IP

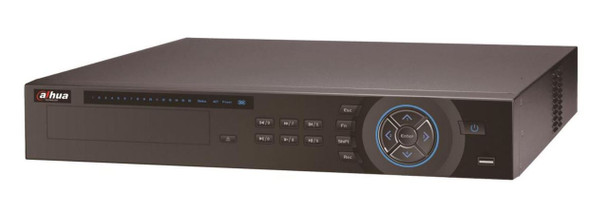

  • OEM Dahua HCVR7416L 16ch Hybrid Digital Video Recorder

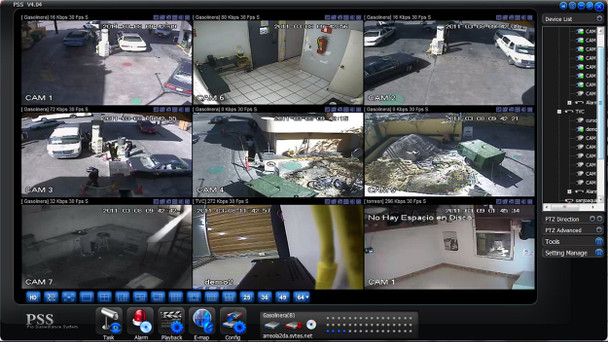

  • Dahua PSS Remote Client Surveillance Software
  • Dahua Mobile Viewing Applications

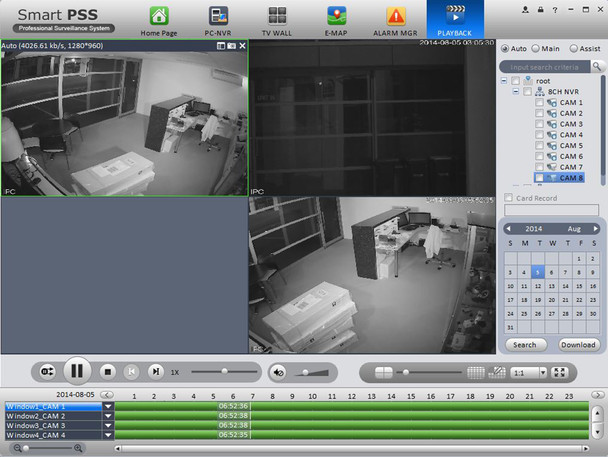

  • Dahua Smart PSS CMS Remote Client Surveillance Software
  • HCVR7416L DVR security system diagram
No Longer Available - Contact Us

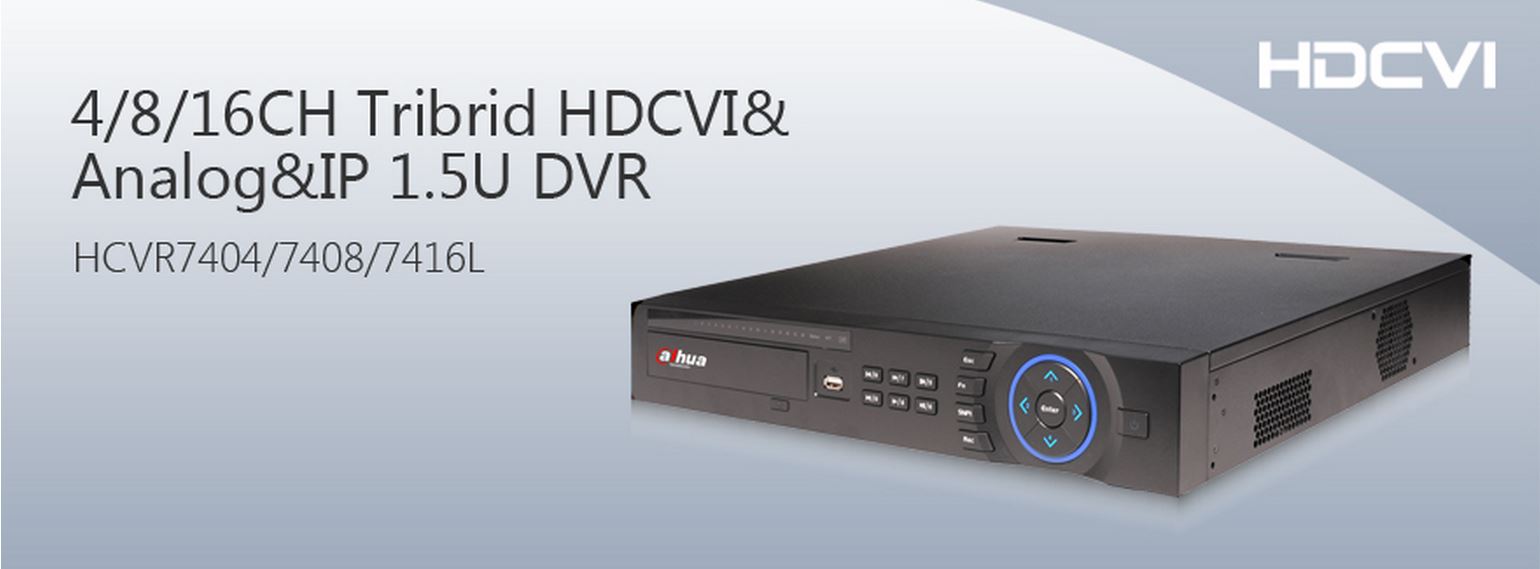

Dahua HCVR7416L Hybrid 16ch Digital Video Recorder is a powerful solution for the latest HD-CVI HD CCTV 1080P video surveillance. The unit is backwards compatible with Analog CCTV supporting up to 960H resolution while even IP Cameras can be integrated at up to 1080P HD as well, allowing a choice of three different security cameras per every channel, in any combination. This combined with H.264 compression and Real-time 480fps in full high definition promise professional results. Encased in a 1.5U slim rack-mountable design, these units also offer a low profile desktop mount that is loaded with hardware advantages from local display with Dual HDMI to USB mouse or optional keyboard joystick system controllers. The full range of professional qualities from external storage to two way audio and alarm interface is all on-board. You will also undoubtedly appreciate a feature rich, easy to navigate user interface, regardless of whether viewing from a web browser to utilizing the also Free CMS Software or Mobile Viewing Applications.

Dahua OEM HCVR7416L Main Features:

  • Linux Embedded 16ch Hybrid Video Recorder "Tribrid"
  • 16 channel each allowing Analog CCTV at 960H, HD CVI or IP Video at up to 1080P
  • Advanced H.264 dual-streaming, 480fps or 30fps per channel Real-time at up to 1080P HD
  • 1080P HDMI, VGA & BNC TV offer simultaneous output plus Second HDMI for extra HD output
  • Remote monitoring / System Settings: Multi-Web Browser support, CMS Surveillance Software (PSS/Smart PSS)
  • Mobile Viewing DMSS App for iPhone, iPad, Android plus Windows Smart Phones
  • Support Multi-brand network cameras: Dahua, ACTi, Arecont Vision, AXIS, Bosch, Brickcom, Canon, Honeywell, Panasonic, Pelco, Samsung, Sony, Vivotek, etc.
  • Numerous Network Protocols: ONVIF Version 2.2 compliant, HTTP, IPv4/IPv6, TCP/IP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, Alarm Server
  • 4, 8 or 16 channel synchronous real-time playback, GRID interface plus smart search
  • Scheduled Continuous, Motion Detection (IP Edge only) or Alarm Recording plus Manual Start/Stop Recording
  • Alarm Triggers: FTP, Email Notification, Video Push, Monitor, PTZ, Tour, Audible Alert, Visual Screen Indicators
  • 3D intelligent positioning for Dahua PTZ cameras
  • 2x RJ-45 Ethernet Ports (10/100M/1000M)
  • 4x SATA On-board HDDs up to 16TB Internal Storage
  • 1x eSATA up to 16TB External Storage
  • 4x USB 2.0 (Support Export, Mouse)
  • Alarm I/O: 16x Alarm Input, 6x Relay Output
  • Two Way Audio: 16x Audio Input, 1 Audio Output, and 1 Two-Way Talk Channel
  • RS-232, RS-485, RS-422: PC Communication, Keyboard/Joystick, PTZ Telemetry
  • Dimension (W×D×H) 1.5U, 17.32" × 16.14" × 2.76"
  • Weight: 13.22 lbs (without HDD)
  • NOTE: OEM and Branded Dahua Units Available for Most Models
  • Base Model sold without Hard Drive, Numerous Storage Size Options Available, Contact us today!


Unique Linux Embedded HD Hybrid DVR:
Built to deliver high performing, versatile video surveillance these all new triple format recorders from Dahua yield tremendous advantages. Simply stated you can now acquire a good quality, cost effective, do it all (almost*) video recording solution. As mentioned real-time 30fps per channel (480fps total), the up to 1080P HD display/recording as well as H.264 compression are all the right ingredients for high performance video security. The ability to individually support CCTV, HD-CVI (HD CCTV) or IP Camera video per channel opens a world of potential for new system designs to existing security system upgrades. The device is well rounded beyond these features including aspects that satisfy both Enterprise to small scale operations. Local Display is outfitted nicely with Dual, independent 1080P HDMI output, plus a VGA and BNC TV spot monitor output. Local controls are likewise accommodated well from an IR Remote to USB mouse or even full function front panel ensuring truly professional operation. A high level of device integration to an equally high level of storage capacity is matched with detailed device, event, user and other system settings that will meet your needs at practically any level.

Smart Software, Simple Use, Convenient Setup:
The OEM (Dahua) HCVR7416L 16 channel Hybrid Video Recorders include a unified software suite that enables familiar operations between different models (locally on the recorder) and for remote software applications allows universal brand device support. That is these units are supported by the Smart PSS, PSS and DMSS remote and mobile viewing applications. Those solutions provide a single program capable of monitoring, even simultaneously, multiple sites, recorders or even other devices like IP Cameras. Smart PSS, PSS and DMSS have a sharp, easy to navigate, feature rich interface that includes amazing quality rivalling leading surveillance brands. You can perform remotely countless actions from live viewing, search, playback, export and even system settings all with in-depth functionality. Everything is modernized so smart search functions, time-line, Digital Zoom on Live or synchronized multi-channel playback. This advanced remote viewing is all there FREE of charge, supporting cross browser platforms, CMS capable remote software to mobile viewing so satisfying, you can brag about it on your iPhone, iPad, Android or Windows Smart Phone.

Professional Installation, Simple Integration:
The AZ-HCVR7416L Dahua OEM Digital Video Recorders are among the most well equipped DVR/NVR systems currently offered. Especially at such a price. Though they are not meant for every applications needs, undoubtedly they are well equipped for a wide range of pro surveillance systems. Whether installation is for a single unit or multiple recorders, this model specifically offers local interfaces like RS-485, RS-422 or RS-232 for options such as Joystick System Controllers for commanding multiple recorders with ease. Local storage is plentiful with 4 internal SATA Drives and an added eSATA connection brings local storage to powerful 16TB internally and 16TB externally. Just about every interface option such as PTZ Cameras, USB export, Alarm I/O or Two Way Audio is fully accessible plus enhanced with smart software options. Likewise setup is easy regardless of if you use a local Setup wizard or go at it remotely, menus, settings and selections are easily navigated. For CCTV and HD CCTV (HD-CVI) Security Camera Systems it doesn't get much better than this, Contact our experts today to learn more.


A2Z Security Expert Product Review/Tips:
The Dahua (including OEM models) surveillance equipment is known for high performance per cost ratio and with a good quality. A2Z Security Cameras recommends these products for applications demanding high end results with maximum cost effectiveness. The units are absolutely great for the majority of projects, especially CCTV and easy migration to HD CCTV HD CVI 1080P format using existing coaxial cabling. However for IP Cameras, unless it’s a Dahua (or OEM version Dahua) IP Camera we recommend testing or checking for compatibility to support certain functions like VMD.

Last Updated March 25, 2016
