Dahua OEM HCVR7208A-V2 8ch 1080P Hybrid DVR HD-CVI CCTV IP

Write a Review
  • Dahua HCVR7208A-V2 8ch 1080P Hybrid DVR HD-CVI CCTV IP

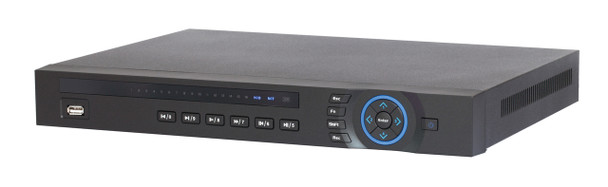

  • OEM HCVR7208A-V2 8 channel 1080P Hybrid DVR HD-CVI CCTV IP

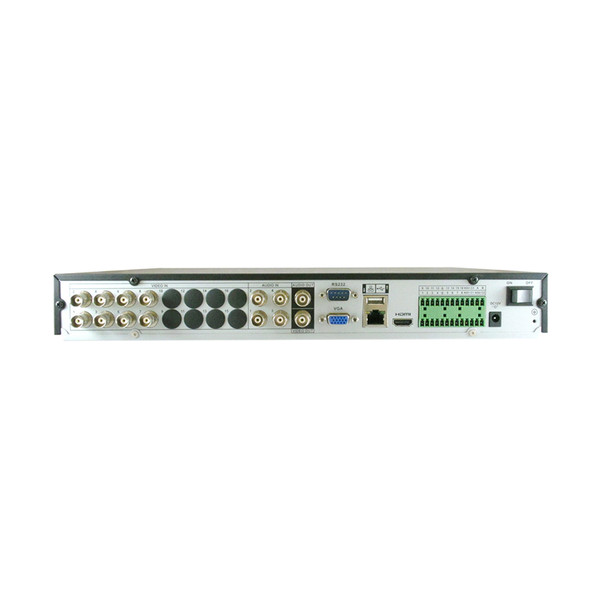

  • HCVR7208A-V2 8ch Hybrid DVR rear panel
  • PSS Remote Surveillance Software
  • DMSS Mobile Surveillance Software
  • Smart PSS CMS Surveillance Software
  • HCVR7208A-V2 DVR Security System Diagram
No Longer Available - Contact Us


Dahua OEM HCVR7208A-V2 8ch Hybrid Digital Video Recorder is an innovative and cost effective solution yielding pro grade qualities plus performance in an ultra-slim form factor. Encased in a 1U rack-mountable or desktop design, this Linux Embedded DVR and NVR in one boast up to 1080P HD resolution and dual H.264 video streaming. Most notable is the 8 channel, triple format in any channel combination of 960H Analog CCTV Security Cameras or the latest HD CVI and IP Cameras at up to 1080P High Definition. Despite being an affordable unit the HCVR7208A-V2 OEM Dahua DVR System is a feature rich device that likewise proves a powerhouse with adequate storage options to real-time 240fps video monitoring or recording. You and your installer will absolutely appreciate the solid, yet well-developed applications from local setup to the many forms of remote operation. The local HDMI high definition display is impressive while the FREE multi-web browser, CMS Surveillance Software or versatile mobile viewing apps promise convenient small scale benefits to multi-device (recorder, IP camera, encoder) unified security system management.


Dahua OEM HCVR7208 Main Features:

  • Linux Embedded 16ch Hybrid Video Recorder "Tribrid"
  • 8 channel each allowing Analog CCTV at 960H, HD CVI or IP Video at up to 1080P
  • Advanced H.264 dual-streaming, 240fps or 30fps per channel Real-time at up to 1080P HD
  • 1080P HDMI and VGA simultaneous output
  • Remote monitoring / System Settings: Multi-Web Browser support, CMS Surveillance Software (PSS/Smart PSS)
  • Mobile Viewing DMSS App for iPhone, iPad, Android plus Windows Smart Phones
  • Support Multi-brand network cameras: Dahua, ACTi, Arecont Vision, AXIS, Bosch, Brickcom, Canon, Honeywell, Panasonic, Pelco, Samsung, Sony, Vivotek, etc.
  • Numerous Network Protocols: ONVIF Version 2.2 compliant, HTTP, IPv4/IPv6, TCP/IP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, Alarm Server
  • 4 or 8 channel synchronous real-time playback, GRID interface plus smart search
  • Scheduled Continuous, Motion Detection (IP Edge only) or Alarm Recording plus Manual Start/Stop Recording
  • Alarm Triggers: FTP, Email Notification, Video Push, Monitor, PTZ, Tour, Audible Alert, Visual Screen Indicators
  • 3D intelligent positioning for Dahua PTZ cameras
  • 1x RJ-45 Ethernet Ports (10/100M/1000M)
  • 2x SATA On-board HDDs up to 8TB Internal Storage
  • 2x USB 2.0 (Support Export, Mouse)
  • Two Way Audio: 4x Audio Input, 1 Audio Output
  • RS-485: PTZ Camera Telemetry
  • Dimension (W×D×H): 1U, 14.76" × 11.22" × 2.17"
  • Weight: 5.18 lbs (without HDD)
  • NOTE: OEM and Branded Dahua Units Available for Most Models
  • Base Model sold without Hard Drive, Numerous Storage Size Options Available, Contact us today!


Unique Linux Based Hybrid Digital Video Recorder:
This OEM (or branded Dahua) HCVR7208A-V2 Hybrid DVR System is a "Tribrid" video recorder as they call it based on its ability to record Analog, HD CCTV (HD-CVI) and IP Camera video streams in any combination of its 8 channels. This all-in-one concept once was primarily only offered in PC based video recorders, however newly innovative Linux embedded, hardware/software recorder combinations including the latest HD CCTV Technology with up to 1080P High Definition at real-time 30fps is now readily available. Considering cost, and likewise the cost of HD-CVI Security Cameras, never before has HD Megapixel Video Surveillance been so accessible. Analog CCTV at 960H Real-time is also supported so a combination or migration to HD is a certain benefit you can take advantage of unlike standard digital video recorders. Numerous IP Cameras brands including ONVIF standards can be integrated. These all new digital video recorders deliver professional grade video security with extremely reasonable pricing. Otherwise all the common video recording, schedules, alerts, back up to search methods are delivered with grace.

Intelligent Design, Smart Functions:
The Dahua OEM HCVR7208A-V2 (Dahua/OEM) DVR / NVR Hybrid Digital Recorder is furthermore enhanced by the diverse level of interface, software and hardware capabilities. You will find nearly any task easy to achieve, be it local display with HD monitors or frequent swapping between mobile viewing, quick web browser monitoring or multi-site, multi-system CMS management everything needed there is included free. Locally multiple monitor outputs, front panel control, IR remote or USB mouse control you can deploy small to large scale surveillance in endless varieties. The Units Local GUI is simple to operate and even gives you a quick setup wizard allowing security system operation in minutes. The remote viewing like most other attributes on this unit rival the industry's top tier surveillance systems. You can't help but appreciate cleanly built, web browser, remote client and mobile viewing applications that provide effective monitoring, even of multiple systems including remote system configurations. These impressive applications like DMSS (mobile app), PSS and Smart PSS CMS Software are consistently being updated, giving you a wealth of simple to enterprise level functions with maximum flexibility to manage DVRs, NVRs and even IP Cameras from multiple sources simultaneously. The smallest features like Digital Zoom on your Smart Phone to time-line search methods or alarm triggers are all likewise available.

Simplified Integration, Easy Installation:
This Hybrid Digital Video Recorder is outfitted with a great combo of hardware to software perks to ensure all types of installation needs. 1080P HD HDMI and VGA output offer flexible local display while Microphones or Speakers are also easy to integrate with 4 inputs, 1 output allowing Two Way Audio Support. Even further the units give USB mouse control, support a reasonable storage capacity of up to 8TB via 2 internal SATA Drives and surely includes RS-485 for all your PTZ Camera Controls. Whether installing multiple video recorders, working towards upgrades or needing a step by step migration for existing CCTV security systems, the latest Hybrid HD CVI Video Recorders can be the perfect choice for budget friendly, Megapixel HD video security.

A2Z Security Expert Product Review/Tips:
The Dahua (including OEM) surveillance equipment is recognized for performing at ground breaking levels for minimal investment and with a good quality. A2Z Security Cameras highly recommends these products for applications demanding high end results on the maximum budget restraint. The units are absolutely great for the majority of projects, especially CCTV and easy migration to HD CCTV HD CVI 1080P format using existing coaxial cabling. However for IP Cameras, unless it’s a Dahua (or OEM version Dahua) IP Camera we recommend testing or checking for compatibility to support certain functions like VMD.

Last Updated March 25, 2016
