Dahua OEM HCVR5208A-V2 8 channel Hybrid DVR HD-CVI CCTV IP

  • OEM HCVR5208A-V2 8 channel Hybrid DVR HD-CVI CCTV IP
  • Dahua HCVR5208A-V2 8ch Hybrid Digital Video Recorder Front

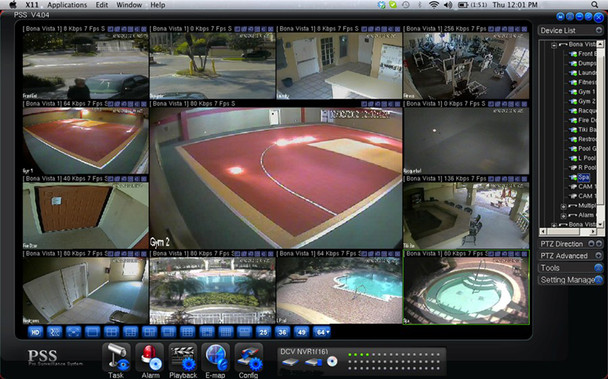

  • Dahua or OEM PSS Remote Surveillance Software
  • Dahua Smart PSS CMS Remote Surveillance Software
  • Dahua Mobile Viewing Applications

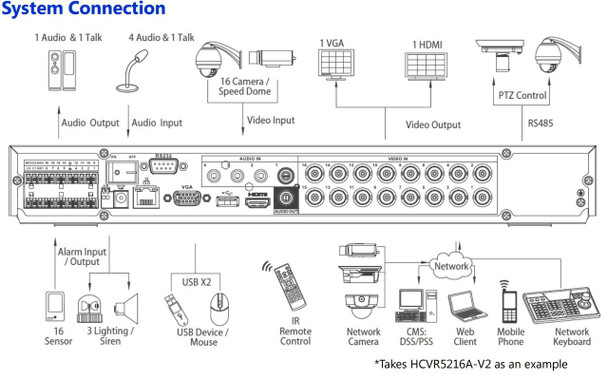

  • HCVR5208A-V2 Hybrid Video Recorder System Diagram
No Longer Available - Contact Us

Product Description

Dahua HCVR5208A-V2 OEM 8 channel Hybrid Digital Video Recorder is a high performing, feature rich and even cost effective video recording solution. Truly versatile this modern Digital Video Recorder and Network Video Recorder in one provides support for Analog CCTV, HD CCTV (HD-CVI) and even IP Video in any combination for its available 8 channels. Boasting up to Real-time 1080P Display and Real-time 720P recording, these units also provide up to real-motion recording in full HD 1080P. Local to remote monitoring is all well-equipped including HDMI HD Display output to a complete set of Professional Grade Surveillance Software applications. The units include adequate local storage, easy network to USB export and a wealth of other satisfying features. As an ultra-slim, 1U design, it provides a low profile device that is equipped for true versatility, comprehensive security system deployment and absolutely budget friendly pricing.

Dahua OEM HCVR5208A-V2 Main Features:

  • Linux Embedded 8ch Hybrid Video Recorder "Tribrid"
  • 8 channel each allowing Analog CCTV at 960H, HD CVI or IP Video at up to 1080P
  • Advanced H.264 dual-streaming, 240fps or 30fps per channel Real-time viewing at up to 1080P HD
  • Real-time 30fps per channel at 720P HD Video Recording or Real-motion 15fps per channel at 1080P HD
  • 1080P HDMI, VGA & BNC TV offer simultaneous output plus Second HDMI for extra HD output
  • Remote monitoring / System Settings: Multi-Web Browser support, CMS Surveillance Software (PSS/Smart PSS)
  • Mobile Viewing DMSS App for iPhone, iPad, Android plus Windows Smart Phones
  • Support Multi-brand network cameras: Dahua, ACTi, Arecont Vision, AXIS, Bosch, Brickcom, Canon, Honeywell, Panasonic, Pelco, Samsung, Sony, Vivotek, etc.
  • Numerous Network Protocols: ONVIF Version 2.2 compliant, HTTP, IPv4/IPv6, TCP/IP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, Alarm Server
  • 4, 8 channel synchronous real-time playback, GRID interface plus smart search
  • Scheduled Continuous, Motion Detection (IP Edge only) or Alarm Recording plus Manual Start/Stop Recording
  • Alarm Triggers: FTP, Email Notification, Video Push, Monitor, PTZ, Tour, Audible Alert, Visual Screen Indicators
  • 3D intelligent positioning for Dahua PTZ cameras
  • 1x RJ-45 Ethernet Ports (10/100M/1000M)
  • 2x SATA On-board HDDs up to 8TB Internal Storage
  • 2x USB 2.0 (Support Export, Mouse)
  • Alarm I/O: 16x Alarm Input, 6x Relay Output
  • Two Way Audio: 16x Audio Input, 1 Audio Output
  • RS-485: PTZ Camera Telemetry
  • Dimension (W×D×H): 1U, 14.76" × 11.22" × 2.17"
  • Weight: 5.18 lbs (without HDD)
  • NOTE: OEM and Branded Dahua Units Available for Most Models
  • Base Model sold without Hard Drive, Numerous Storage Size Options Available, Contact us today!


Advanced Linux Hybrid Digital Video Recorder:
This Linux Embedded HCVR5208A-V2 Dahua OEM 8ch Hybrid DVR is part of a new line of surveillance recorders providing maximum system flexibility. Its Triple format CCTV, HD-CVI (HD CCTV) and IP Camera support in any combination allow unrestricted security system design by enabling a wider selection of security camera options. You can easily migrate existing CCTV Camera Systems or create totally unique combos to suite your exact requirements. The device boast real-motion (15fps per camera) 1080P HD recording and real-time (30fps per cam) in 720P HD or 960H CCTV resolution formats. Dual H.264 Video Compression plus individually configured channel settings allow users to further optimize bandwidth to storage use. Local HDMI and VGA display, front panel control to IR Remote or Mouse operation, these DVRs offer powerful local monitoring abilities as well as even more powerful remote viewing options. All around you will find live viewing, search, playback, export and configuration is well developed with in-depth functions, plus visually pleasing and easy to manage.

Professional Video Surveillance, Flexible Functions:
The HCVR5208A-V2 8ch Hybrid DVR is packed with pro qualities despite its compact size or super low cost. Rivalling leading solutions many times its cost, this model doesn't claim to offer everything, but it undoubtedly sets new standards for system versatility and cost per performance ratio. Nearly every major function, from software capabilities to hardware interface has been included. You will find numerous selections regarding event detection, event triggers, users accounts, network management and beyond. Perfect as a stand-alone solution these units also easily integrate along-side multiple recorders, even of different models (from Dahua) for simplified, universal management from your PC or mobile device. Users to administrators are well equipped to handle all sorts of specialized requirements via video management software including web interface with multi-browser support, CMS Remote Viewing Software (PSS or Smart PSS) and DMSS mobile viewing applications for you iPhone, iPad, android or windows smart phone all free of charge. Detailed search and playback options, easy export to all sorts of live viewing tools like on-screen PTZ controls or Digital Zoom are equally available. Smart PSS, PSS and DMSS remote monitoring solutions can likewise support multiple streaming devices be it a DVR, NVR, encoder or IP camera simultaneously with ease.

Small Form Factor, Feature Packed 1U Design:
Regardless of this unit’s compact size, it is loaded with a wide variety professional attributes to ensure all kinds of security project requirements. Local storage at up to 8TB via 2 SATA drives, Alarm I/O with 4 inputs and 3 outputs as well as Two Way Audio (with mic and speaker input/output) deliver a comprehensive set of pro abilities. The Slick 1U rack-mount design is ultra-low profile taking the minimal space on your desktop or in your rack. You can easily establish 1080P HD video security be it your home, business or a multi-building complex, convenient and centralized remote monitoring is a breeze. Mix and Match your ideal security camera selections to create a fully customized security camera system or migrate your existing security system at your leisure.

A2Z Security Expert Product Review/Tips:
The Dahua surveillance equipment (including OEM versions) is known for offering high performance per cost ratio and with a good quality. A2Z Security Cameras recommends these products for applications demanding high performing results with maximum cost effectiveness. The units are absolutely great for the majority of projects, especially CCTV and easy migration to HD CCTV HD CVI 1080P format using existing coaxial cabling. However for IP Cameras, unless it’s a Dahua (or OEM version Dahua) IP Camera we recommend testing or checking for compatibility to support certain functions like VMD.
