Geovision GV-CBW220 Wireless HD IP Cube Camera

  • Geovision GV-CBW220 Wireless 1080P HD IP Cube Camera

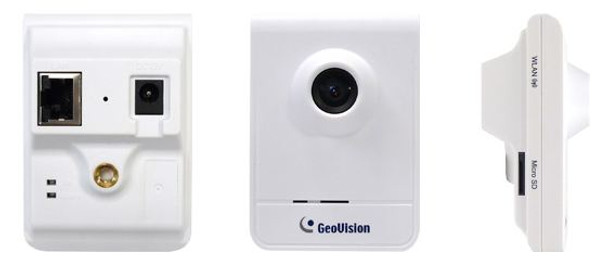

  • Geovsion GV-CBW Series side viewall sides
  • Geovsion CBW220 Dimensions
Calculated at checkout

Product Description

Geovision GV-CBW220 Wireless HD IP Cube Camera is a powerful and versatile Network security camera delivering true 1080p High Definition Video. The camera is equipped with HD (high Definition) CMOS Image sensor and provides superior low light function with Digital Day/Night. Added WDR (Wide Dynamic Range) ensure the camera can overcome the most challenging lighting conditions such as high contrast scenes. The Cameras provide full HD in up to 30fps Real-time and utilizes the MJPEG and H.264 Video Codecs. Integrated Two Way Audio with built-in Microphone and Speaker further increase surveillance and also utilize quality codec formats like AAC. The Wireless Cameras Fixed wide angle lens allows the camera to provide a large field of view and High Definition ensures the smallest details are caught with clarity.
The Geovision GV-CBW220 Wireless Megapixel IP Cameras excellent flexibility is found in its Wireless WiFi network interface and its flexible mount. The Cameras is able to achieve installations that would otherwise be too difficult or impossible. Intelligent Function of the camera also include on-board event detection methods and local SD memory card slot for recording. The Cameras also provide a professional web interface for camera monitoring and configuration. Standard features include privacy masking, ip address filtering, multi-language support and a variety of other functions. The Geovision GV-CBW220 Wireless HD IP Cube Camera is ONVIF complaint meaning it can be integrated with other IP Camera Systems using the universal standard.

Geovision GV-CBW220 Main Features:

  • 1/2.5" Progressive Scan CMOS
  • Dual streams from H.264 and MJPEG
  • Up to 30 fps at 1920 x 1080
  • Day and night function (electronic)
  • Wireless connectivity: WiFi 802.11/b/g/n
  • Two-way audio
  • Memory Card Slot
  • G.711 and AAC audio codec
  • Wide Dynamic Range (WDR)
  • Defog
  • Motion detection
  • Tampering alarm
  • Privacy mask
  • IP address filtering
  • Megapixel lens
  • Supports iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF conformant

Geovision GV-CBW220 Specifications:

Image Sensor 1/2.5” progressive scan CMOS
Picture Elements 1920 (H) x 1080 (V)
Minimum Illumination Color 1 Lux (1/30 sec.), 0.5 Lux (1/5 sec.)
Shutter Speed Automatic, Manual(1/5 ~ 1/8000 sec.)
White Balance Automatic, Manual(2800K ~ 8500K)
Gain Control Automatic
S/ 45 dB
Megapixel Yes
Day/Night Yes(electronic )
Lens Type Fixed
Focal Length 3.35mm”
Max Aperture F/2.4
Mount M12mm
Image Format 1/3”
Operation Zoom
Video Compression H.264, MJPEG
Video Stream Stream1 fromH.264 and MJPEG
Frame Rate
30 fps at 1920 x 1080
* The frame rate and the performance may vary depending on the number of connections and data
bitrates(different scenes).
Image Setting Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation,
Shutter Speed, Backlight Compensation
Audio Compression G.711, AAC (24 kHz/ 16 bit)
* AAC is only supported byGV-SystemV8.5 or later
Two-way Audio Yes
Video Resolution
Main Stream
4:3 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240
16:9 1920 x 1080, 1280 x 720, 640 x 360, 448 x 252
5:4 1280 x 1024, 640 x 512, 320 x 256
Sub Stream
4:3 640 x 480, 320 x 240
16:9 640 x 360, 448 x 252
5:4 640 x 512, 320 x 256
Interface 10/100 Ethernet
Wireless LAN IEEE 802.11 b/g/n
Antenna Type Built-in
Temperature Detector No
Power DC Jack
Ethernet Ethernet(10/100 Base-T), RJ-45
Audio Built-in speaker microphone
Local Storage Micro SD/SDHC/SDXC memory card slot(for Class 6 card or above)
LED Indicator 2 LEDs: Status, LAN
Environment Temperature 0 °C ~ 40 °C (32 °F ~ 104 °F)
Humidity 10% to 90% (no condensation)
Power Source 5VDC
Max. Power Consumption 3.2 W
Dimensions 60 x 84.8 x 39mm(2.36 x 3.34 x 1.54”)
Weight 70 g (0.15 lb.)
Regulatory CE, FCC, C-Tick, RoHS compliant
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser Camera live view, video recording, change video quality, bandwidth control, image snapshot, audio,
Picture in Picture, Picture and Picture, Privacy Mask, Tampering Alarm, Text Overlay
Arabic / Bulgarian / Czech /Danish /Dutch / English / Finnish / French /German /Greek /Hebrew /
Hungarian /Indonesian /Italian /Japanese / Lithuanian /Norwegian / Persian / Polish / Portuguese /
Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai/
Traditional Chinese / Turkish
Network Storage GV-NVR,GV-System, GV-Backup Center, GV-Recording Server
Smart Device Access
GV-Eye for Android smartphone, tablet, iPhone, and iPod Touch
Live Viewing IE,mobile phone
CMS Server support GV-Control Center, GV-Center V2,GV-VSM
