Geovision GV-CAW120 Wireless Megapixel IP Cube Camera

Write a Review
Calculated at Checkout
  • Geovision GV-CAW120 Wireless Megapixel IP Cube Camera
  • Geovision GV-CAW120 IP Cube Camera from all sides

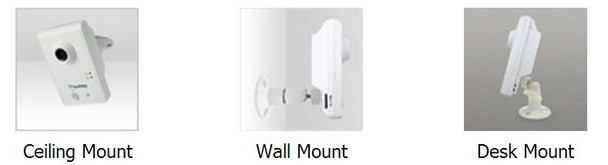

  • Geovision GV-CAW120 Mounting options
  • Geovision GV-CAW120 Tamper Detection Methods
  • Geovision GV-CAW120 dimensions


Geovision GV-CAW120 Wireless Megapixel IP Cube Camera is a cost effective, innovative and compact network security camera for professional grade Wireless IP Surveillance. The unit includes most notably a built-in WiFi Wireless Interface allowing the camera to be placed anywhere a power source is available and the wireless network is within range. The IP Cube Camera likewise includes the all most all of the same benefits as its non-wireless counterpart the GV-CA120. Such features include H.264 and MJPEG video codecs, Passive Infrared (PIR) Sensor for motion detection and built-in Two Way Audio. The unit is outfitted with a wide angle Lens and also provide digital Day/Night.
The Geovision GV-CAW120 Wireless IP Camera delivers superior 1.3 megapixel resolution and also includes WDR (Wide Dynamic Range) for consistent performance even in high contrast lighting conditions. The unit further provides built in event triggers and includes a Memory Card Slot for local recording. The compact wireless cameras are excellent solutions for indoor IP Surveillance and their built-in White Light LED illuminators enable superior low light performance. This camera is designed to be used for wireless deployment and though it offers a network interface this unit only accept 5VDC power input. A final advantage is the Geovision GV-CAW120 Megapixel Cube Camera provides ONVIF support for easy integration into other leading IP Camera Systems.

Geovision GV-CAW120 Main Features:

  • 1/2.5" progressive scan CMOS
  • Dual streams from H.264 and MJPEG
  • Up to 30 fps at 1280 x 1024
  • Passive infrared (PIR) sensor for detecting movement and activating the alarm LED
  • Wireless connectivity: WiFi 802.11b/g/n
  • Two-way audio
  • Memory Card Slot
  • Wide Dynamic Range (WDR)
  • Defog
  • Motion detection
  • Tampering alarm
  • Text overlay
  • Privacy mask
  • IP address filtering
  • DC 5V
  • Megapixel lens
  • Smart device access
  • 31 languages on Web interface
  • ONVIF conformant

Geovision GV-CAW120 Specifications:

Image Sensor 1/2.5" progressive scan CMOS
Picture Elements 1280 (H) x 1024 (V)
Color 1 Lux at F/2.4
Minimum Illumination B/W 0.5 Lux at F/2.4
LEDON 0.1 Lux at F/2.4
Shutter Speed Automatic, Manual(1/5 ~ 1/8000 sec.)
White Balance Automatic, Manual(2800 ~ 8500K)
Gain Control Automatic
S/ 45 dB
Megapixel Yes
Day/Night Yes(electronic)
Lens Type Fixed
Focal Length 3.35mm
Maximum Aperture F/2.4
Mount M12mm
Image Format 1/3"
Operation Zoom
Video Compression H.264, MJPEG
Video Streaming DualstreamsfromH.264 and MJPEG
Frame Rate
30 fps at 1280 x 1024
* The frame rate and performance may vary depending on the number of connections and data bitrates
(different scenes).
Image Setting Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation,
Shutter Speed, Backlight Compensation, WDR, Defog
Audio Compression G.711, AAC (24 kHz/ 16 bit)
* AAC (24 kHz/ 16 bit) is only supported byGV-SystemV8.5.6 or later.
Two-way Audio Yes
Video Resolution
Main Stream
4:3 1280 x 960, 640 x 480, 320 x 240
16:9 1280 x 720, 640 x 360, 448 x 252
5:4 1280 x 1024, 640 x 512, 320 x 256
Sub Stream
4:3 640 x 480, 320 x 240
16:9 640 x 360, 448 x 252
5:4 640 x 512, 320 x 256
Interface 10/100 Ethernet
Wireless LAN IEEE 802.11 b/g/n
Antenna Type Built-in
Temperature Detector No
Power DC Jack
Ethernet RJ-45
Audio Built-in speaker microphone
Local Storage Micro SD / SDHC / SDXC memory card slot(for Class 6 card or above)
LED Indicator 4 LEDs: Status x 3, LAN/Wi-Fi
PIR Sensor Built-in
White Illumination LED Yes
Max. PIR Sensor/White Illumination LED
Distance 5m(16.4 ft.)
Environment Temperature 0 °C ~ 50 °C (32 °F ~ 122 °F)
Humidity 10% to 90% (no condensation)
Power Source 5VDC
Max. Power Consumption 6 W
Dimensions 65.8 x 99.8 x 39mm(2.59 x 3.92 x 1.54”)
Weight 100 g (0.2 lb)
Regulatory CE, FCC, C-Tick, RoHS compliant
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade throughWeb Browser orUtility
Accessfrom Web Browser Camera live view, video recording, change video quality, bandwidth control, image snapshot, , audio,
Picture in Picture, Picture and Picture, Privacy Mask, Tampering Alarm, TextOverlay
Arabic / Bulgarian / Czech /Danish /Dutch / English / Finnish / French /German /Greek /Hebrew / Hungarian /Indonesian /Italian /Japanese / Lithuanian /Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai/ Traditional Chinese / Turkish
Network Storage GV-NVR,GV-System,GV-Backup Center,GV-Recording Server
SmartDevice Access
GV-Eye for Android smartphone,tablet, iPhone, and iPod Touch
Live Viewing IE,mobile phone
CMS Serversupport GV-Control Center,GV-Center V2,GV-VSM
