Geovision GV-CAW220 Wireless HD IP Cube Camera

Write a Review
Calculated at Checkout
  • Geovision GV-CAW220 Wireless 1080P HD IP Cube Camera
  • Geovision GV-CAW220 Side Views
  • Geovision GV-CAW220 mounting options

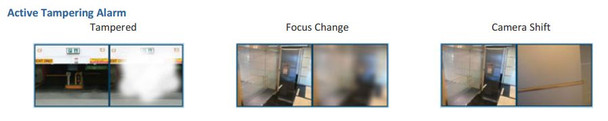

  • Geovision GV-CAW220 tamper detection features

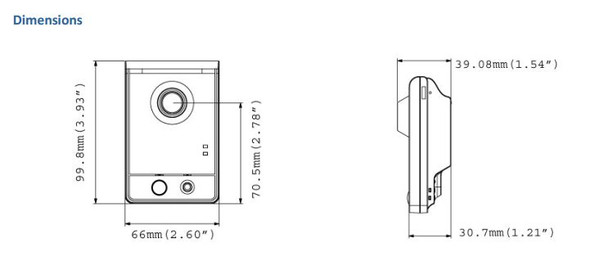

  • Geovision GV-CAW220 dimensions


Geovision GV-CAW220 Wireless HD Cube IP Camera is an innovative wireless network camera that delivers best in class performance and features. The device includes a progressive scan CMOS HD Image sensor delivering 1080p High Definition IP Surveillance in up to real-time 30fps. The Camera support leading codecs like H.264 and MJPEG with dual streaming and individually configurable video stream selection. The Geovision GV-CAW220 Wireless Megapixel IP Camera is packed with high performance attributes such as WDR (Wide Dynamic Range) function allowing superior image compensation for high contrast and adverse lighting. The Camera is built with a wide angle megapixel lens and is a low profile camera that has no problem delivering superior high definition coverage of even large areas.

Countless attributes combine in the Geovision GV-CAW220 1080P HD Wireless IP Camera to complete a truly professional unit. A built-in Passive Infrared (PIR) Sensor delivers the highest accuracy in motion detection and built-in SD card slot support local video recording. The unit offers other beneficial qualities like Video Motion Detection, Two Way Audio, Defog function, Text Overlay and Privacy mask. The compact wireless camera delivers a flexibility not found in fully wired solutions and the unit additionally support ONVIF for third party IP Security Camera Systems. The Geovision GV-CAW220 Wireless HD IP Cube Camera is the perfect choice for low cost high performance wireless video surveillance.

Geovision GV-CAW220 Main Features:

  • 1/2.5" progressive scan CMOS
  • Dual streams from H.264 and MJPEG
  • Up to 30 fps at 1920 x 1080
  • Passive infrared (PIR) sensor for detecting movement and activating the alarm LED
  • Wireless connectivity: WiFi 802.11b/g/n
  • Two-way audio
  • Memory Card Slot
  • Wide Dynamic Range (WDR)
  • Defog
  • Motion detection
  • Tampering alarm
  • Text overlay
  • Privacy mask
  • IP address filtering
  • DC 5V
  • Megapixel lens
  • Smart device access
  • 31 languages on Web interface
  • ONVIF conformant

Geovision GV-CAW220

Image Sensor 1/2.5" progressive scan CMOS
Picture Elements 1920 (H) x 1080 (V)
Color 1 Lux at F/2.4
Minimum Illumination B/W 0.5 Lux at F/2.4
LEDON 0.1 Lux at F/2.4
Shutter Speed Automatic, Manual(1/5 ~ 1/8000 sec.)
White Balance Automatic, Manual(2800 ~ 8500K)
Gain Control Automatic
S/ 45 dB
Megapixel Yes
Day/Night Yes(electronic)
Lens Type Fixed
Focal Length 3.35mm
Maximum Aperture F/2.4
Mount M12mm
Image Format 1/3"
Operation Zoom
Video Compression H.264, MJPEG
Video Streaming DualstreamsfromH.264 and MJPEG
Frame Rate
30 fps at 1920 x 1080
* The frame rate and performance may vary depending on the number of connections and data bitrates
(different scenes).
Image Setting Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation,
Shutter Speed, Backlight Compensation, WDR, Defog
Audio Compression G.711, AAC (24 kHz/ 16 bit)
* AAC (24 kHz/ 16 bit) is only supported byGV-SystemV8.5.6 or later.
Two-way Audio Yes
Video Resolution
Main Stream
4:3 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240
 16:9 1920 x 1080, 1280 x 720, 640 x 360, 448 x 252
5:4 1280 x 1024, 640 x 512, 320 x 256
Sub Stream
4:3 640 x 480, 320 x 240
16:9 640 x 360, 448 x 252
5:4 640 x 512, 320 x 256
Interface 10/100 Ethernet
Wireless LAN IEEE 802.11 b/g/n
Antenna Type Built-in
Temperature Detector No
Power DC Jack
Ethernet RJ-45
Audio Built-in speaker microphone
Local Storage Micro SD / SDHC / SDXC memory card slot(for Class 6 card or above)
LED Indicator 4 LEDs: Status x 3, LAN/Wi-Fi
PIR Sensor Built-in
White Illumination LED Yes
Max. PIR Sensor/White Illumination LED Distance 5m(16.4 ft.)
Environment Temperature 0 °C ~ 50 °C (32 °F ~ 122 °F)
Humidity 10% to 90% (no condensation)
Power Source 5VDC
Max. Power Consumption 6 W
Dimensions 65.8 x 99.8 x 39mm(2.59 x 3.92 x 1.54”)
Weight 100 g (0.2 lb.)
Regulatory CE, FCC, C-Tick, RoHS compliant
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser Camera live view, video recording, change video quality, bandwidth control, image snapshot, , audio,
Picture in Picture, Picture and Picture, Privacy Mask, Tampering Alarm, Text Overlay
Arabic / Bulgarian / Czech /Danish /Dutch / English / Finnish / French /German /Greek /Hebrew / Hungarian /Indonesian /Italian /Japanese / Lithuanian /Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai/ Traditional Chinese / Turkish
Network Storage GV-NVR,GV-System, GV-Backup Center, GV-Recording Server
Smart Device Access
GV-Eye for Android smartphone, tablet, iPhone, and iPod Touch
Live Viewing IE,mobile phone
CMS Server support GV-Control Center, GV-Center V2,GV-VSM
