Geovision GV-CA220 Megapixel HD IP Cube Camera

Write a Review
SKU:
GV-CA220
Shipping:
Calculated at Checkout
  • Geovision GV-CA220 1080P HD IP Cube Camera H.264
  • Geovision GV-CA220  From all sides
  • Geovision GV-CA220  mounting options

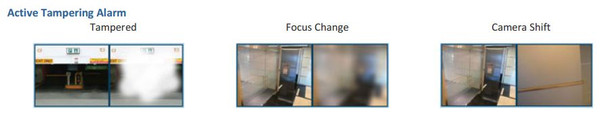

  • Geovision GV-CA220  tamper detection
  • Geovision GV-CA220  dimensions
$245.00

Description

Geovision GV-CA220 Megapixel HD Cube Camera is an innovative and compact IP Network Camera delivering superior performance in low cost, low profile form factor. The Geovision GV-CA220 IP Camera includes a 1/2.5" progressive scan CMOS image sensor capable of delivering full 1080p(1920 x 1080p) HD Video Surveillance in Real-time 30fps. The compact cube camera is also equipped with a range of the latest features including Dual Streaming with support for MJPEG and H.264 video compression. Support for Two Way Audio, a built-in Passive Infrared (PIR) Sensor for motion Detection and White Light LED enable a powerful security solution.
The Geovision GV-CA220 1080P HD IP Cube Camera provides other enhancements for professional IP camera Systems and surveillance applications. The unit provides integrated Memory Card Slot and offers several event triggers for on-board recording. The Camera also includes Wide Dynamic Range (WDR) for optimal imaging especially in challenging Lighting conditions. Other advantages can be found in the Geovision GV-CA220 HD Megapixel Cube Camera such PoE (Power over Ethernet) for simple single cable installation and ONVIF Compliance for universal support for third party IP Security Camera Systems.

Geovision GV-CA220 Main Features:

  • 1/2.5" progressive scan CMOS
  • Dual streams from H.264 and MJPEG
  • Up to 30 fps at 1920 x 1080
  • Passive infrared (PIR) sensor for detecting movement and activating the alarm LED
  • Two-way audio
  • Memory Card Slot
  • Wide Dynamic Range (WDR)
  • Defog
  • Motion detection
  • Tampering alarm
  • Text overlay
  • Privacy mask
  • IP address filtering
  • DC 5V / PoE
  • Megapixel lens
  • Smart device access
  • 31 languages on Web interface
  • ONVIF conformant


Geovision GV-CA220 Specifications:

Camera
Image Sensor 1/2.5" progressive scan CMOS
Picture Elements 1920 (H) x 1080 (V)
Color 1 Lux at F/2.4
Minimum Illumination B/W 0.5 Lux at F/2.4
LEDON 0.1 Lux at F/2.4
Shutter Speed Automatic, Manual(1/5 ~ 1/8000 sec.)
White Balance Automatic, Manual(2800 ~ 8500K)
Gain Control Automatic
S/ 45 dB
Lens
Megapixel Yes
Day/Night Yes(electronic)
Lens Type Fixed
Focal Length 3.35mm
Maximum Aperture F/2.4
Mount M12mm
Image Format 1/3"
Focus
Operation Zoom
Iris
Fixed
Operation
Video Compression H.264, MJPEG
Video Streaming DualstreamsfromH.264 and MJPEG
Frame Rate
30 fps at 1920 x 1080
* The frame rate and performance may vary depending on the number of connections and data bitrates
(different scenes).
Image Setting Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation,
Shutter Speed, Backlight Compensation, WDR, Defog
Audio Compression G.711, AAC (24 kHz/ 16 bit)
* AAC (24 kHz/ 16 bit) is only supported byGV-SystemV8.5.6 or later.
Two-way Audio Yes
Video Resolution
Main Stream
4:3 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240
16:9 1920 x 1080 (1080p), 1280 x 720 (720p), 640 x 360, 448 x 252
5:4 1280 x 1024, 640 x 512, 320 x 256
Sub Stream
4:3 640 x 480, 320 x 240
16:9 640 x 360, 448 x 252
5:4 640 x 512, 320 x 256
Network
Interface 10/100 Ethernet
Ethernet Protocol HTTP,HTTPS, TCP,UDP, SMTP, FTP,DHCP,NTP,UPnP,DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP,QoS
(DSCP),ONVIF
Mechanical
Temperature Detector No
Power DC Jack / PoE
Ethernet RJ-45
Audio Built-in speaker microphone
Connectors
Local Storage Micro SD / SDHC / SDXC memory card slot(for Class 6 card or above)
LED Indicator 4 LEDs: Status x 3, LAN/Wi-Fi
PIR Sensor Built-in
White Illumination LED Yes
Max. PIR Sensor/White Illumination LED
Distance 5m/(16.4 ft.)
General
Environment Temperature 0 °C ~ 50 °C (32 °F ~ 122 °F)
Humidity 10% to 90% (no condensation)
Power Source 5VDC, PoE
Max. Power Consumption 7 W
General
Dimensions 65.8 x 99.8 x 39mm(2.59 x 3.92 x 1.54”)
Weight 100 g (0.2 lb)
Regulatory CE, FCC, C-Tick, RoHS compliant
Power over Ethernet
PoE Standard IEEE 802.3af Class 3 Power over Ethernet/ PD
PoE Power Supply Type End-Span
PoE PowerOutput Per Port 48VDC, 350mA. Max. 15.4watts
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade throughWeb Browser orUtility
Accessfrom Web Browser Camera live view, video recording, change video quality, bandwidth control, image snapshot, , audio,
Picture in Picture, Picture and Picture, Privacy Mask, Tampering Alarm, TextOverlay
Language
Arabic / Bulgarian / Czech /Danish /Dutch / English / Finnish / French /German /Greek /Hebrew /
Hungarian /Indonesian /Italian /Japanese / Lithuanian /Norwegian / Persian / Polish / Portuguese /
Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai/
Traditional Chinese / Turkish
Application
Network Storage GV-NVR,GV-System,GV-Backup Center,GV-Recording Server
SmartDevice Access GV-Eye for Android smartphone,tablet, iPhone, and iPod Touch
GV-EyeHDforiPad
Live Viewing IE,mobile phone
CMS Serversupport GV-Control Center,GV-Center V2,GV-VSM
