Geovision GV-CBW120 Wireless Megapixel IP Cube Security Camera

Write a Review
Calculated at Checkout
  • Geovision GV-CBW120 Wireless 1.3 Megapixel IP Cube Camera

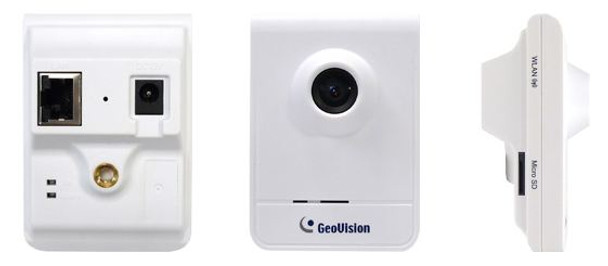

  • Geovision GV-CBW120 all sides
  • Geovision GV-CBW120 dimensions


Geovision GV-CBW120 Wireless Megapixel IP Cube Security Camera is a powerful indoor surveillance camera offering superior video and flexible installation. The Geovision GV-CBW120 utilizes a Megapixel CMOS Sensor to enable 1.3 Megapixel Real-time IP Video in both H.264 and MJPEG compression methods. This version of the Geovision Cube Cameras has a built-in WIFI Wireless network interface for wireless communication back to a local network. The Wireless Megapixel Camera includes other powerful features like WDR (Wide Dynamic Range) and Digital Day/Night for superior Low light imaging in High Definition. The Camera is built with a wide angle lens and additionally has integrated microphone and speaker for complete area surveillance.
The Wireless Geovision Megapixel Cube Cameras provide other great benefits including professional web GUI for simple camera setup and monitoring. The device also allows a variety of special operations and settings ranging from built-in motion detection to network security options. On-Board Video Recording with SD Memory card slot allows the Wireless Camera to provide redundant or stand-alone surveillance recording. With all this performance, a super compact design with ultra-flexible mounting and ONVIF compliance the Camera is an ideal choice for any IP Security Camera System.

Geovision GV-CBW120 Main Features:

  • 1/2.5" Progressive Scan CMOS
  • Dual streams from H.264 and MJPEG
  • Up to 30 fps at 1280 x 1024
  • Day and night function (electronic)
  • Wireless connectivity: WiFi 802.11/b/g/n
  • Two-way audio
  • Memory Card Slot
  • G.711 and AAC audio codec
  • Wide Dynamic Range (WDR)
  • Defog
  • Motion detection
  • Tampering alarm
  • Privacy mask
  • IP address filtering
  • Megapixel lens
  • Supports iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF conformant

Geovision GV-CBW120 Specifications
Image Sensor 1/2.5” progressive scan CMOS”
Picture Elements 1920 (H) x 1080 (V)
Minimum Illumination Color 1 Lux (1/30 sec.), 0.5 Lux (1/5 sec.)
Shutter Speed Automatic, Manual(1/5 ~ 1/8000 sec.)
White Balance Automatic, Manual(2800K ~ 8500K)
Gain Control Automatic
S/ 45 dB
Megapixel Yes
Day/Night Yes(electronic )
Lens Type Fixed
Focal Length 3.35mm
Max Aperture F/2.4
Mount M12mm
Image Format 1/3””
Operation Zoom
Video Compression H.264, MJPEG
Video Stream DualstreamsfromH.264 and MJPEG
Frame Rate
30 fps at 1920 x 1080
* The frame rate and the performance may vary depending on the number of connections and data
bitrates(different scenes).
Image Setting Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation,
Shutter Speed, Backlight Compensation
Audio Compression G.711, AAC (24 kHz/ 16 bit) (for 5V)/G.711, AAC (16 kHz/ 16 bit) (for 12V)
* AAC is only supported byGV-SystemV8.5 or later
Two-way Audio Yes
Video Resolution
Main Stream
4:3 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240
16:9 1920 x 1080, 1280 x 720, 640 x 360, 448 x 252
5:4 1280 x 1024, 640 x 512, 320 x 256
Sub Stream
4:3 640 x 480, 320 x 240
16:9 640 x 360, 448 x 252
5:4 640 x 512, 320 x 256
Interface 10/100 Ethernet
Temperature Detector No
Power DC Jack
Ethernet Ethernet(10/100 Base-T), RJ-45
Audio Built-in speaker microphone
Local Storage Micro SD/SDHC/SDXC memory card slot(for Class 6 card or above)
LED Indicator 2 LEDs: Status, LAN
Environment Temperature 0 °C ~ 50 °C (32 °F ~ 122 °F)
Humidity 10% to 90% (no condensation)
Power Source
Two types of models: 5V and 12VDC
*Be sure to use the supplied power adapter to power up the camera. To use your own power cable,
make sure you look up the power source value indicated at the camera’s back panel.
Max. Power Consumption Two types of models: 3.2 W(for 5VDC) and 4 W(for 12VDC)
Dimensions 60 x 84.8 x 39mm(2.36 x 3.34 x 1.54”)
Weight 80 g (0.18 lb.)
Regulatory CE, FCC, C-Tick, RoHS compliant
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser Camera live view, video recording, change video quality, bandwidth control, image snapshot, audio,
Picture in Picture, Picture and Picture, Privacy Mask, Tampering Alarm, Text Overlay
Arabic / Bulgarian / Czech /Danish /Dutch / English / Finnish / French /German /Greek /Hebrew / Hungarian /Indonesian /Italian /Japanese / Lithuanian /Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai/ Traditional Chinese / Turkish
Network Storage GV-NVR,GV-System, GV-Backup Center, GV-Recording Server
Smart Device Access GV-Eye for Android smartphone, tablet, iPhone, and iPod Touch
Live Viewing IE,mobile phone
CMS Server support GV-Control Center, GV-Center V2,GV-VSM
