Geovision GV-BX3400-4V 3 Megapixel IP Security Camera

Write a Review
Calculated at Checkout
  • Geovision GV-BX3400-4V 3 Megapixel IP Security Camera

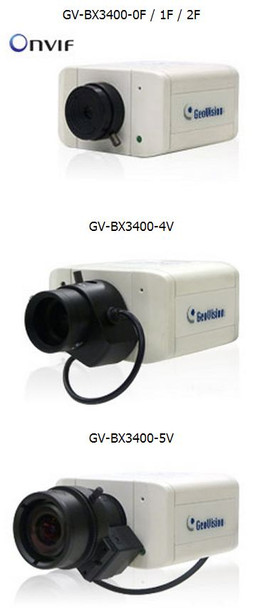

  • Geovision GV-BX3400 available models
  • Geovision GV-BX3400 ceiling mount
  • Geovision GV-BX3400 desktop mount
  • Geovision GV-BX3400 wall mounted
  • Geovision GV-BX3400 rear camera panel
  • Geovision GV-BX3400 dimensions


Geovision GV-BX3400 3 Megapixel IP Security Camera provides greater than HD IP Surveillance for absolute video security monitoring. The Geovision GV-BX3400-4V 3 Megapixel IP Camera is built on a 3 megapixel CMOS progressive scan sensor that provides 3MP (2048 x 1536) at 20fps or full 1080P HD at 30fos real-time. The Compact camera is packed with professional and best in class features such as True Day/Night operation and Wide Dynamic Range (WDR) for optimal image performance. The unit further provides dual streaming with both MPJEG and H.264 Codec streams supported. The Geovision GV-BX2400-4V is packaged with a 2.8-12mm varifocal lens with other fixed and varifocal lens (see model and specifications) options.
The Geovision GV-BX3400 series 3 Megapixel HD IP Cameras further enhances surveillance abilities such as integrated Microphone and external MIC and Speaker for two way Audio. The IP Camera also supports Digital Inputs, has a Mini USB slot for WIFI option and even a composite video TV output. The Geovision GV-BX3400-3V Megapixel IP Camera also provides stand-alone recording with built in event triggers and on board storage to Micro SD card slot. Geovision did not forget to make the camera installation flexible with both 12VDC and PoE (Power Over Ethernet) power options. Finally, the Geovision GV-BX3400-4V Megapixel IP Security Cameras are ONVIF capable allowing these excellent cameras to be used with 3rd party IP Camera systems.

Geovision GV-BX3400 Main Features:

  • 3 megapixel progressive scan CMOS
  • Dual streams from H.264 and MJPEG
  • Up to 20 fps at 2048 x 1536, 30 fps at 1920 x 1080
  • Built-in / external microphone
  • 2-way audio
  • One sensor input and alarm output
  • TV-out support
  • Memory Card Slot (MICRO SD /SDHC /SDXC)
  • Mini USB slot for WiFi Adapter (Optional)
  • Enhanced Imaging: Wide Dynamic Range pro (WDR pro)
  • Professional Functions: Defog, Motion detection, Tampering alarm, Privacy mask
  • IP address filtering
  • Power Option: 12VDC / PoE (Power Over Ethernet)
  • Removable IR-cut filter for Day/Night function
  • Varifocal megapixel lens
  • Supports iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF conformant

Geovision GV-BX3400 Specifications:

Camera Models: GV-BX3400-0F GV-BX3400-1F GV-BX3400-2F GV-BX3400-4V GV-BX3400-5V
Image Sensor 1/3.2" progressive scan CMOS
Picture Elements 2048 (H) x 1536 (V)
Color 0.08 Lux at F/1.4
Minimum Illumination B/W 0.05 Lux at F/1.4
IRON 0 Lux
Shutter Speed Automatic, Manual(1/5 ~ 1/8000 sec.)
White Balance Automatic, Manual(2800 ~ 8500K)
Gain Control Automatic
S/N Ratio 47 dB
WDR Pro Yes(with WDR sensor)
Megapixel Yes
Day/Night Yes(with removable IR-cut filter)
Lens Type Fixed Varifocal
Focal Length 4mm 8mm 12mm 3 ~ 10.5mm 2.8 ~ 6mm
Maximum Aperture F/1.5 F/1.6 F/1.4 F/1.3
Mount CS Mount
Image Format 1/3" 1/2.5" 1/2.7" 1/3"
Focus Manual Manual(w/lock)
Operation Zoom Fixed Manual(w/lock)
Iris Fixed DC drive
Torque (Focus/Zoom screws) 0.049N.m
Video Compression H.264, MJPEG
Video Streaming DualstreamsfromH.264 and MJPEG
Frame Rate
20 fps at 2048 x 1536
* The frame rate and performance may vary depending on the number of connections and data bitrates
(different scenes).
Image Setting Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation, Shutter Speed, D/N Sensitivity, Backlight Compensation, WDR, Defog
Audio Compression G.711, AAC (24 kHz/ 16 bit)
*AAC (24 kHz/ 16 bit) is only supported byGV-SystemV8.5.6 or later.
Two-way Audio Yes
Sensor Input 1 input(Dry Contact)
Alarm Output 1DigitalOutput(200mA 5VDC)
Video Resolution
Main Stream
4:3 2048 x 1536, 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240
16:9 1920 x 1080, 1280 x 720, 640 x 360, 448 x 252
5:4 1280 x 1024, 640 x 512, 320 x 256
Sub Stream
4:3 640 x 480, 320 x 240
16:9 640 x 360, 448 x 252
5:4 640 x 512, 320 x 256
Interface 10/100 Ethernet
Wireless LAN IEEE 802.11 b/g/n
Antenna Type External
Temperature Detector Yes
Power 2-pin terminal block, PoE
Ethernet RJ-45
Audio 1 In (Using the built-in microphone or externally connecting a microphone)
1Out(Stereo phone jack, 3.5mm/ 0.14”)
Digital I/O 3-pin terminal block, pitch 2.5mm(0.1”)
Auto Iris Yes
Local Storage Micro SD / SDHC / SDXC memory card slot(for Class 6 card or above)
TV-Out BNC connector(640 x 480 resolution)
 Yes (for GV-WiFi Adapter)
LED Indicator 2 LEDs: Power, Status
Operating Temperature 0 °C ~ 50 °C (32 °F ~ 122 °F)
Humidity 10% to 90% (no condensation)
Power Source 12VDC / PoE
Max. Power Consumption 9.5W
Dimensions(L X WXH) 75.5 x 75 x 54mm(2.97” x 2.95” x 2.13”)(without lens)
Weight 300 g (0.66 lb.)
Regulatory CE, FCC, C-Tick, RoHS compliant
Power over Ethernet
PoE Standard IEEE 802.3af Class 3 Power over Ethernet/ PD
PoE Power Supply Type End-Span
PoE Power Output Per Port 48VDC, 350mA. Max. 15.4watts
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Web Interface
Access from Web Browser
Camera live view, video recording, change video quality, bandwidth control, image snapshot, digital I/O control, audio, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm, Text Overlay
Arabic / Bulgarian / Czech /Danish /Dutch / English / Finnish / French /German /Greek /Hebrew / Hungarian /Indonesian /Italian /Japanese / Lithuanian /Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai/ Traditional Chinese / Turkish
Network Storage GV-NVR,GV-System, GV-Backup Center, GV-Recording Server
Smart Device Access GV-Eye for Android smartphone, tablet, iPhone, and iPod Touch
Live Viewing IE,mobile phone
CMS Server support GV-Control Center, GV-Center V2,GV-VSM

Available Models
Model    Iris    Focal Length (mm)    Maximum Aperture    Image Format
GV-BX3400-0F    Fixed    4 mm    F/1.5    1/3"
GV-BX3400-1F    Fixed    8 mm    F/1.6    1/2.5"
GV-BX3400-2F    Fixed    12 mm    F/1.6    1/2.5"
GV-BX3400-4V    DC Drive    3 ~ 10.5 mm    F/1.4    1/2.7"
GV-BX3400-5V    DC Drive    2.8 ~ 6 mm    F/1.3    1/3"
