Geovision GV-BX5300 5 Megapixel IP Security Camera

Write a Review
SKU:
GV-BX5300
  • Geovision GV-BX5300 5 Megapixel WDR Day/Night IP Camera
  • Geovision GV-BX5300 rear panel
  • Geovision GV-BX5300 desktop mounted
  • Geovision GV-BX5300 ceiling mounted
  • Geovision GV-BX5300 wall mounted

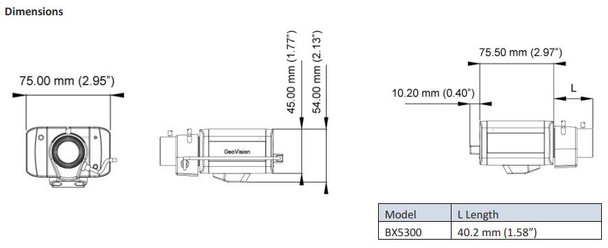

  • Geovision GV-BX5300 dimensions
Contact us on 855 376 6699

Description

Geovision GV-BX5300 5 Megapixel IP Security Camera is a top tier network surveillance camera with best in class features. The Geovision GV-BX5300 provides forensic level video security with ultra-High Definition video up to 2560 x 1920 pixels (5MP) at 10fps. The unit has a 5 megapixel progressive scan CMOS sensor and can also stream higher frame rate 3 megapixel and Real-time 1080p HD Video. The Geovision IP Camera is equipped with a IR Cut-filter for true day/night operation and includes the much desired WDR (Wide Dynamic Range) Function. The Geovision GV-BX5300 also allows dual streaming of MJPEG and H.264 video codecs. The Camera is perfect to provide large area coverage for indoor or outdoor applications when used with a weatherproof camera housing.

The Geovision GV-BX5300 5 Megapixel IP Camera like other Geovision security cameras is a market leading product with a wide range of impressive features. The Geovision GV-BX5300 is equipped with a Megapixel 4.5-10mm Varifocal  Manual Iris lens but supports other CS mount style lenses including DC Auto Iris Lens types. The IP security camera also includes a built-in Microphone with external Two Way Audio connections as well. The mini USB providing support for WiFi is in itself an incredible feature, not to mention Composite video output, Digital I/O with advanced web interface and network functions. The Geovision IP Cameras GV-BX5300 series in addition to that, offer on board recording with various event triggers and support for Micro SD, SDHC, or SDXC cards. The Geovision IP Security Camera line now support ONVIF allowing these top performance cameras to be used with third party IP Video Surveillance Systems.

Geovision GV-BX5300 Main Features:

  • 5 megapixel progressive scan CMOS
  • Dual streams from H.264 and MJPEG
  • Up to 10 fps at 2560 x 1920
  • Built-in / external microphone
  • 2-way audio
  • One sensor input and alarm output
  • TV-out support
  • Memory Card Slot
  • Mini USB slot for WiFi Adapter (Optional)
  • Wide Dynamic Range (WDR)
  • Defog
  • Motion detection
  • Tampering alarm
  • Privacy mask
  • IP address filtering
  • DC 12V / PoE
  • Removable IR-cut filter for Day/Night function
  • Varifocal megapixel lens
  • Supports iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF conformant


Geovision GV-BX5300 Specifications

Camera
Image Sensor 1/2.5" progressive scan CMOS
Picture Elements 2560 (H) x 1920 (V)
Color 0.15 Lux
Minimum Illumination B/W 0.10 Lux
IRON 0 Lux
Shutter Speed Automatic, Manual(1/5 ~ 1/8000 sec.)
White Balance Automatic, Manual(2800 ~ 8500K)
Gain Control Automatic
S/N Ratio 45 dB
BLC Yes
Lens
Megapixel Yes
Day/Night Yes(with removable IR-cut filter)
Lens Type Varifocal
Focal Length 4.5 ~ 10mm
Maximum Aperture F/1.6
Mount CS Mount
Image Format 1/2"
Focus Manual(w/lock)
Operation Zoom Manual(w/lock)
Iris Manual(w/lock)
Torque (Focus/Zoom screws) 0.049N.m
Operation
Video Compression H.264, MPEG4 and MJPEG
Video Streaming Stream1 fromH.264 or MJPEG;Stream2 fromH.264, MPEG4 or MJPEG
Frame Rate
30 fps at 1280 x 1024
* The frame rate and performance may vary depending on the number of connections and data bitrates
(different scenes).
Image Setting Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation,
Shutter Speed, D/N Sensitivity, Backlight Compensation, WDR, Defog
Audio Compression G.711, AAC (24 kHz/ 16 bit)
*AAC (24 kHz/ 16 bit) is only supported byGV-SystemV8.5.6 or later.
Two-way Audio Yes
Sensor Input 1 input(Dry Contact)
Alarm Output 1DigitalOutput(200mA 5VDC)
Video Resolution
Main Stream
4:3 2560 x 1920, 2048 x 1536, 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240
16:9 1920 x 1080, 1280 x 720, 640 x 360, 448 x 252
5:4 1280 x 1024, 640 x 512, 320 x 256
Sub Stream
4:3 640 x 480, 320 x 240
16:9 640 x 360, 448 x 252
5:4 640 x 512, 320 x 256
Network
Interface 10/100 Ethernet
Protocol HTTP,HTTPS, TCP,UDP, SMTP, FTP,DHCP,NTP,UPnP,DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP,QoS (DSCP)
Wireless LAN IEEE 802.11 b/g/n
Antenna Type External
Security WEP, WPA-PSK(TKIP), WPA-PSK(AES), WPA2-PSK(TKIP), WPA2-PSK(AES)
Mechanical
Temperature Detector Yes
Power 2-pin terminal block, PoE
Ethernet RJ-45
Audio 1 In (Using the built-in microphone or externally connecting a microphone)
1Out(Stereo phone jack, 3.5mm/ 0.14”)
Digital I/O 3-pin terminal block, pitch 2.5mm(0.1”)
Auto Iris Yes
Local Storage Micro SD / SDHC / SDXC memory card slot(for Class 6 card or above)
TV-Out BNC connector(640 x 480 resolution)
Connectors
 Yes (for GV-WiFi Adapter)
LED Indicator 2 LEDs: Power, Status
General
Operating Temperature 0 °C ~ 50 °C (32 °F ~ 122 °F)
Humidity 10% to 90% (no condensation)
Power Source 12VDC / PoE
Max. Power Consumption 9.5W
Dimensions(L X WXH) 75.5 x 75 x 54mm(2.97” x 2.95” x 2.13”)(without lens)
Weight 300 g (0.66 lb.)
Regulatory CE, FCC, C-Tick, RoHS compliant
Power over Ethernet
PoE Standard IEEE 802.3af Class 3 Power over Ethernet/ PD
PoE Power Supply Type End-Span
PoE Power Output Per Port 48VDC, 350mA. Max. 15.4watts
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser
Camera live view, video recording, change video quality, bandwidth control, image snapshot, digital I/O control, audio, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm, Text Overlay
Language
Arabic / Bulgarian / Czech /Danish /Dutch / English / Finnish / French /German /Greek /Hebrew / Hungarian /Indonesian /Italian /Japanese / Lithuanian /Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai/ Traditional Chinese / Turkish
Applications
Network Storage GV-NVR,GV-System, GV-Backup Center, GV-Recording Server
Smart Device Access GV-Eye for Android smartphone, tablet, iPhone, and iPod Touch
GV-EyeHDforiPad
Live Viewing IE,mobile phone
CMS Server support GV-Control Center, GV-Center V2,GV-VSM
