Geovision GV-BX130D-0 1.3 Megapixel IP Security Camera

Write a Review
Calculated at Checkout
  • Geovision GV-BX130D 1.3 Megapixel IP Camera with varifocal Lens
  • Geovision GV-BX130D rear of camera
  • Geovision GV-BX130D tamper detection

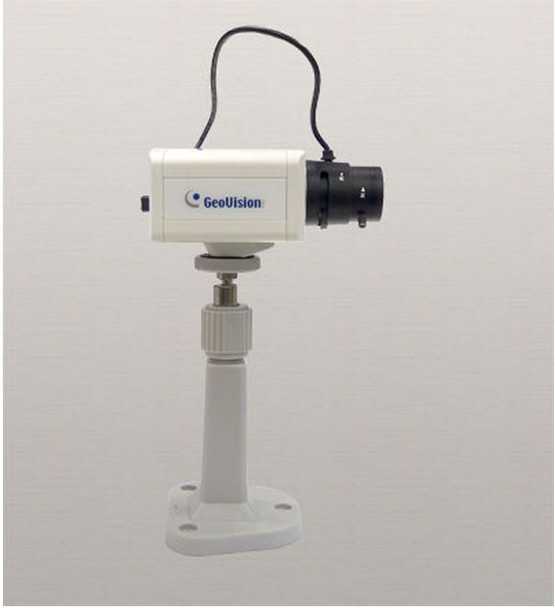

  • Geovision GV-BX130D desktop mount
  • Geovision GV-BX130D ceiling mounted
  • Geovision GV-BX130D wall mounted
  • Geovision GV-BX130D dimensions


Geovision GV-BX130D-0 Megapixel Box Security Camera is a high performance megapixel IP camera for professional solution for IP Surveillance. The Geovision GV-BX130D-0 IP Camera includes a megapixel progressive scan CMOS and can deliver up to 30fps real-time 1.3 Megapixel Video. The IP Camera also offers Day/Night operation with IR cut-filter including  Wide Dynamic Range (WDR) allowing the camera to perform optimally in even the most adverse lighting. The Geovision GV-BX130D-0 Megapixel Camera is also equipped with a 2.8-12mm varifocal Megapixel Lens, while also sold with a fixed lens as model GV-BX130D-1.
The Geovision GV-BX130D-0 is a truly professional ip camera packed with hardware and software features. The Cameras provide  Built-in Mic with support for Two Way Audio and integrated mic and speaker connections. Other connections for DC Auto Iris, TV monitor output, and Digital I/O allow a range of possibilities. Built in intelligent functions like Defog, IP Address filtering and a innovative web interface supporting 31 languages ensure maximum camera flexibility. The Camera even support event triggers like Motion Detection, Tampering  Alarm, Alarm Input and Camera Shift with on board recording to memory card slot. ONVIF conformance and 12VDC or PoE (Power Over Ethernet) enable the Geovision Megapixel Camera to easily adapt to a range of IP Camera Systems and applications.

Geovision GV-BX130D-0 Main Features:

  • 1.3 megapixel progressive scan CMOS
  • Dual streams from H.264 and MJPEG
  • Up to 30 fps at 1280 x 1024
  • Model Includes: 2.8-12mm Varifocal megapixel lens
  • Built-in / external microphone
  • 2-way audio
  • One sensor input and alarm output
  • TV-out support
  • Memory Card Slot
  • Wide Dynamic Range (WDR)
  • Defog
  • Motion detection
  • Tampering alarm
  • Privacy mask
  • IP address filtering
  • DC 12V / PoE
  • Removable IR-cut filter for Day/Night function
  • Supports iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF conformant

Camera GV-BX130D-0 GV-BX130D-1
Image Sensor 1/2.5" progressive scan CMOS
Picture Elements 1280 (H) x 1024 (V)
Color 0.5 Lux at F/1.4 0.5 Lux at F/1.5
Minimum Illumination B/W 0.1 Lux at F/1.4 0.1 Lux at F/1.5
IR ON 0 Lux
Shutter Speed Automatic, Manual(1/5 ~ 1/8000 sec)
White Balance Automatic, Manual(2800K ~ 8500K)
Gain Control Automatic
S/N Ratio 45 dB
Megapixel Yes
Day/Night Yes(with removable IR-cut filter) Yes(with removable IR-cut filter)
Lens Type Varifocal Fixed
Focal Length 2.8 ~ 12mm 4mm
Maximum Aperture F/1.4 F/1.5
Mount CS Mount
Image Format 1/3"
Focus Manual(w /lock)
Operation Zoom Manual(w /lock) Fixed
Iris DC drive Fixed
Max. Torque (Focus/ Zoom Screws) 0.049N.m
Video Compression H.264, MJPEG
Video Stream DualstreamsfromH.264 and MJPEG
Frame Rate
30 fps at 1280 x 1024
* The frame rate and the performance may vary depending on the number of connections and data
bitrates(different scenes).
Image Setting Brightness, Contrast, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation, Shutter Speed,
D/N Sensitivity, Backlight Compensation, WDR, Defog
Audio Compression G.711, AAC (16 kHz/ 16 bit)
* AAC is only supported byGV-SystemV8.5 or later
Two-way Audio Yes
Sensor Input 1 Input(Dry Contact)
Alarm Output 1DigitalOutput(200mA 5VDC)
Video Resolution
Main Stream
4:3 1280 x 960, 640 x 480, 320 x 240
16:9 1280 x 720, 640 x 360, 448 x 252
5:4 1280 x 1024, 640 x 512, 320 x 256
Sub Stream
4:3 640 x 480, 320 x 240
16:9 640 x 360, 448 x 252
5:4 640 x 512, 320 x 256
Interface 10/100 Ethernet
Power 2-pin terminal block, PoE
Ethernet RJ-45
Audio 1 In (Using the built-in microphone or externally connecting a microphone)
1Out(Stereo phone jack, 3.5mm/ 0.14 in)
Digital I/O 3-pin terminal block, pitch 2.5mm/ 0.1 in
Auto Iris Yes ( Not functional Fixed version)
Local Storage Micro SD/SDHC/SDXC memory card slot(for Class 6 card or above)
TV-Out BNC connector(640 x 480 resolution)
LED Indicator 2 LEDs: Power, Status
Environment Temperature 0 °C ~ 50 °C / 32 °F ~ 122 °F
Humidity 10% to 90% (no condensation)
Power Source 12VDC / PoE
Max. Power Consumption 7 W
Dimensions(L X W XH) 75.5 x 75 x 54mm/ 3.05 x 2.95 x 2.13 in (without lens)
Weight 321 g / 0.71 lb.
Regulatory CE, FCC, C-Tick, RoHS compliant
Power over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet/ PSE
PoE Power Supply Type End-Span
PoE Power Output Per Port 48VDC, 350mA. Max. 15.4watts
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser
Camera live view, video recording, change video quality, bandwidth control, image snapshot, digital I/O
control, audio, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm,
Text Overlay
Arabic / Bulgarian / Czech /Danish /Dutch / English / Finnish / French /German /Greek /Hebrew /
Hungarian /Indonesian /Italian /Japanese / Lithuanian /Norwegian / Persian / Polish / Portuguese /
Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai/
Traditional Chinese / Turkish
Network Storage GV-NVR,GV-System, GV-Backup Center, GV-Recording Server
Smart Device Access GV-Eye for Android smartphone, tablet, iPhone, and iPod Touch
Live Viewing IE,mobile phone
CMS Server support GV-Control Center, GV-Center V2,GV-VSM
