Geovision GV-BX520D 5 Megapixel IP Security Camera

Write a Review
Calculated at Checkout
  • Geovision GV-BX520D 5 Megapixel WDR Day/Night IP Security Camera
  • Geovision GV-BX520D rear panel
  • Geovision GV-BX520D wall mount

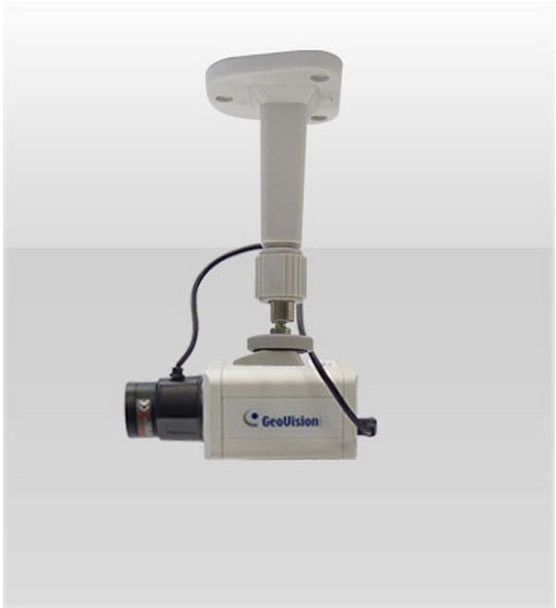

  • Geovision GV-BX520D ceiling mount
  • Geovision GV-BX520D desktop mount
  • Geovision GV-BX520D tamper detection
  • Geovision GV-BX520D Dimensions


Geovision GV-BX520D 5 Megapixel IP Camera is a top of the line Megapixel Box Style Security Camera that delivers beyond High Definition IP Video Surveillance. The IP Camera features a 5 Megapixel Progressive Scan CMOS Image Sensor to deliver up to 10fps at full 2560 x 1920 pixels. The GV-BX520D Megapixel Security Cameras also includes Dual Streaming of H.264 and MJPEG codecs for high quality and customizable video streams. True Day/Night operation with removable IR Cut-filter and WDR (Wide Dynamic Range) ensures crisp video security in a variety of challenging lighting conditions. The Geovision GV-BX520D is sold with a 4.5-10mm Megapixel Lens and can support other 1/2 inch CS mount style lenses.
The Geovision GV-BX520D 5 Megapixel IP Cameras include a wide range of class leading features such as built-in microphone and two way audio connections. Other benefits include the TV output and Digital I/O inputs for external device integration. Easy installation with 12VDC power input or PoE (IEEE 802.3af Power Over Ethernet) the camera can be used indoors or outdoors with a security camera enclosure. The Geovision GV-BX520D 5 Megapixel IP Cameras also have an innovative Web interface and professional functions like built-in motion detection and tampering alarms with ability for local recording to SD memory card slot. The Geovision GV-BX520D IP Camera is ONVIF compliant allowing it to be used in a wide range of third party NVR or IP Video Surveillance Software systems.

Geovision GV-BX520D Main Features:

  • 5 megapixel progressive scan CMOS
  • Dual streams from H.264 and MJPEG
  • Up to 10 fps at 2560 x 1920
  • Built-in / external microphone
  • 2-way audio
  • One sensor input and alarm output
  • TV-out support
  • Memory Card Slot
  • Wide Dynamic Range (WDR)
  • Defog
  • Motion detection
  • Tampering alarm
  • Privacy mask
  • IP address filtering
  • DC 12V / PoE
  • Removable IR-cut filter for Day/Night function
  • Varifocal megapixel lens
  • Supports iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF conformant

Geovision GV-BX520D Specifications:

Image Sensor 1/2.5" progressive scan CMOS
Picture Elements 2560 (H) x 1920 (V)
Color 0.5 Lux at F/1.6
Minimum Illumination B/W 0.1 Lux at F/1.6
IRON 0 Lux
Shutter Speed Automatic, Manual(1/5 ~ 1/8000 sec.)
White Balance Automatic, Manual(2800K ~ 8500K)
Gain Control Automatic
S/ 45 dB
Megapixel Yes
Day/Night Yes(with removable IR-cut filter)
Lens Type Varifocal
Focal Length 4.5 ~ 10mm
Maximum Aperture F/1.6
Mount CS Mount
Image Format 1/2"
Focus Manual(w /lock)
Operation Zoom Manual(w /lock)
Iris Manual
Max. Torque (Focus/ Zoom Screws) 0.049N.m
Video Compression H.264, MJPEG
Video Stream DualstreamsfromH.264 and MJPEG
Frame Rate
10 fps at 2560 x 1920
* The frame rate and the performance may vary depending on the number of connections and data bitrates
(different scenes).
Image Setting Brightness, Contrast, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation, Shutter Speed,
D/N Sensitivity, Backlight Compensation, WDR, Defog
Audio Compression G.711, AAC (16 kHz/ 16 bit)
* AAC is only supported byGV-SystemV8.5 or later
Two-way Audio Yes
Sensor Input 1 Input(Dry Contact)
Alarm Output 1DigitalOutput
Video Resolution
Main Stream
4:3 2560 x 1920, 2048 x 1536, 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240
16:9 1920 x 1080, 1280 x 720, 640 x 360, 448 x 252
5:4 1280 x 1024, 640 x 512, 320 x 256
Sub Stream
4:3 640 x 480, 320 x 240
16:9 640 x 360, 448 x 252
5:4 640 x 512, 320 x 256
Interface 10/100 Ethernet
Power 2-pin terminal block, PoE
Ethernet RJ-45
Audio 1 In (Using the built-in microphone or externally connecting a microphone)
1Out(Stereo phone jack, 3.5mm/ 0.14”)
Digital I/O 3-pin terminal block, pitch 2.5mm(0.1”)
Auto Iris DC drive (not workable forGV-BX520D with manual iris lens)
Local Storage Micro SD/SDHC/SDXC memory card slot(for Class 6 card or above)
TV-Out BNC connector(640 x 480 resolution)
LED Indicator 2 LEDs: Power, Status
Environment Temperature 0 °C ~ 50 °C (32 °F ~ 122 °F)
Humidity 10% to 90% (no condensation)
Power Source 12VDC / PoE
Max. Power Consumption 7 W
Regulatory CE, FCC, C-Tick, RoHS compliant
Dimension (L X WXH) 75.5 x 75 x 54mm(3.05” x 2.95” x 2.13”)(without lens)
Weight 321 g (0.71 lb.)
Power over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet/ PSE
PoE Power Supply Type End-Span
PoE Power Output Per Port 48VDC, 350mA. Max. 15.4watts
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser
Camera live view, video recording, change video quality, bandwidth control, image snapshot, digital I/O
control, audio, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm,
Text Overlay
Arabic / Bulgarian / Czech /Danish /Dutch / English / Finnish / French /German /Greek /Hebrew / Hungarian /Indonesian /Italian /Japanese / Lithuanian /Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai/ Traditional Chinese / Turkish
Network Storage GV-NVR,GV-System, GV-Backup Center, GV-Recording Server
Smart Device Access
GV-Eye for Android smartphone, tablet, iPhone, and iPod Touch
Live Viewing IE,mobile phone
CMS Server support GV-Control Center, GV-Center V2,GV-VSM
