Dahua OEM SD6C230S-HN 30x 1080P HD IR PTZ IP Camera

Write a Review
  • Dahua OEM SD6C230S-HN 30x 1080P IR IP PTZ Camera
  • Dahua OEM SD6C230S-HN PTZ Camera side panel
  • Dahua OEM SD6C230S-HN 30x PTZ IP Camera

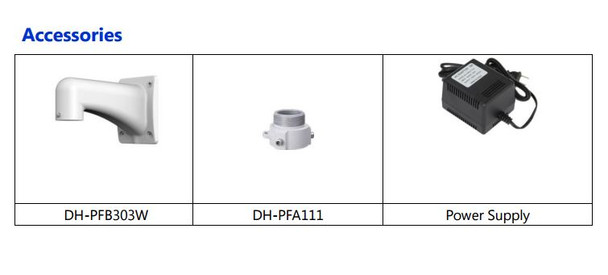

  • Dahua OEM SD6C230S-HN PTZ included Accessories
  • Dahua OEM SD6C230S-HN PTZ Optional Accessories
  • Dahua OEM SD6C230S-HN PTZ Dimensions
Contact Us


NOTICE: This product has been discontinued or is EOL - Please contact our Experts or search the category link below or other related categories.


Moved to EOL: February 26, 2020

Dahua OEM SD6C230S-HN 30x 1080P HD IR PTZ IP Cameras are an outstanding solution for professional IP surveillance. High performing and competitively priced these units include high grade attributes and quality to match. Utilizing a Sony Exmor image sensor this unit delivers superior 1080P HD video surveillance with H.264 and real-time 30fps streaming. Additions like an auto adjusting, integrated IR LED Array capable to about 330ft yields stunning night vision. The unit employs a high speed Pan/Tilt/Zoom mechanism with excellent 30x optical zoom range and precise manual or automated control. There are countless pro features including camera settings, recording options, schedules, network services and beyond. Wide support for devices like Alarm I/O integration, Two Audio or built-in SD recording plus a fully functional web interface are all at your disposal. Fully weatherproof this model is well suited for suited for outdoor applications. Use with Dahua NVR systems, on its own or with third party security camera systems via its ONVIF compliance.

Dahua OEM SD6C230S-HN Main Features:

  • Supreme 1/2.8” Exmor CMOS Image Sensor
  • 30x optical zoom (4.3mm~129mm w/HFOV H: 65.1°~ 2.34°)
  • H.264 and MJPEG Encoding with Dual Streaming
  • Real-time 30fps at up to 1080P (1920x1080) or 60fps at 720P HD resolution
  • IR Night Vision Effective to 100 meters or 330ft
  • DWDR, Day/Night (ICR), Ultra DNR, Auto iris, Auto focus
  • Superior Low Light in Color mode: 0.05 Lux or B/W mode: 0.005 Lux
  • Remote Monitoring: Web Interface, CMS (DSS/PSS) Client/NVR Software and DMSS Mobile
  • Multiple Protocols: HTTPS, SSL, UPnP, RTSP, DDNS, FTP, QoS, ONVIF and more
  • Quick 240°/s pan speed, 360° continuous pan rotation
  • Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
  • Built-in 2/1 alarm I/O interface
  • Two Way Audio w/Line Input/Output and G.711, G.711u or PCM Audio Codec
  • Support intelligent 3D positioning with DH-SD protocol
  • Micro SD memory card slot for local recording (64GB max)
  • Weatherproof IP66
  • Working Environment -40ºC ~ 60ºC / Less than 90% RH
  • Dimensions: Φ204.7mm x 359.9mm or Φ8.05" x 14.16"
  • Weight: 5.0kg or 11.02 lbs.
  • Power: 24VAC


Day or Night HD Video Surveillance:
The Dahua OEM SD6C230S-HN 30x 1080P HD IR IP PTZ Camera incorporates a wide range of highly desired attributes into a winning security camera design. This PTZ camera at its core includes the highly popular Sony Exmor 2MP Image Sensor, its low light capabilities and razor sharp imaging alone promise outstanding results. More perks include Image Enhancements like Ultra DNR, DWDR or HLC as well as true Day/Night operation plus an obviously powerful IR LED array for absolute night vision to a 100 meters. Coupled with a wealth of video settings to dual video streaming options like H.264 or MJPEG this unit is highly versatile.

Complete Surveillance Solution:
The Dahua OEM SD6C230S-HN IR PTZ Cameras include a range of benefits that are hard to ignore beyond cost. Along with great video security imaging, these units provide a rich set of professional settings. There are in-depth controls for imaging, network, record, storage and similar settings. The PTZ further has scheduling options, tiered user levels and of course complete live viewing, search, playback and export all from its cleanly built web interface. Its on-board SD card recording as well as two way audio I/O and Alarm I/O together with various event triggers to event actions provide an intelligent stand-alone IP surveillance system. For third party applications this units ONVIF compliance makes integration easy while numerous network protocols and services like RTSP, SSL, HTTPS, QoS, UPnP, DDNS and many more offer true adaptability.

Outdoor IP Video Security Anywhere:
The Dahua OEM SD6C230S-HN 30x 1080P HD IR IP PTZ Camera is a great choice for video security to other surveillance projects in almost any environment. The unit has a rigid aluminum construction and its IP66 weatherproof rating ensures it can consistently withstand direct exposure to harsh weather. The unit also has a low temperature range making it more than suitable for environments well below zero degrees. This camera allows only 24VAC power input similar to traditional PTZ Security Cameras, it also has a composite BNC video output for legacy system support. Installation can use an included wall bracket or a variety of mounting adapters are available for all the popular mounting methods.

NOTICE: For Dahua A2Z Sales primarily OEM product versions which means no brand labels and models may vary but all specs are otherwise the same as referenced model.

Last Updated January 14, 2016
