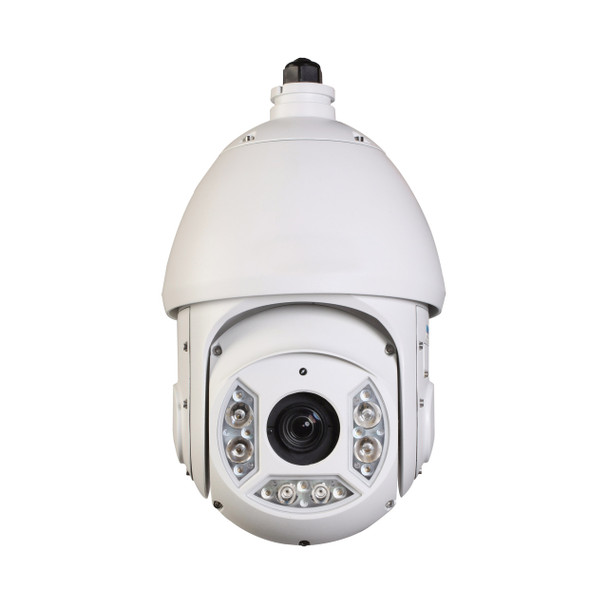

Dahua OEM SD6C220S-HN 20x 1080P HD IR PTZ IP Camera

  • Dahua OEM SD6C220S-HN 20x HD IR PTZ IP Camera
  • Dahua OEM SD6C220S-HN IR HD PTZ IP Security Camera
  • Dahua OEM SD6C220S-HN IR PTZ IP Camera side access panel
  • Dahua OEM SD6C220S-HN PTZ included accessories
  • Dahua OEM SD6C220S-HN PTZ optional accessories
  • Dahua OEM SD6C220S-HN PTZ dimensions
Contact Us

Product Description

NOTICE: This product has been discontinued or is EOL - Please contact our Experts or search the category link below or other related categories.


Moved to EOL: February 25, 2020

Dahua OEM SD6C220S-HN 20x 1080P HD IR PTZ IP Camera is a superbly powerful security camera solution for active surveillance practically anywhere. Including the highly desired Sony Exmor CMOS image sensor this model provides 1080P HD video surveillance at up to real-time 30fps while even higher frame rates of 60fps are achievable in 720p format. Similar in performance to Dahua's traditional Speed Dome PTZ Cameras, these Dome like IR PTZ Cameras yield highly effective IR illumination delivering stunning night vision with incredible range. Smart as well as Rugged these units provide fully professional video security. You will find for the most reasonable cost numerous pro-grade attributes including H.264, Ultra DNR, Alarm I/O, Two Way Audio, SD card on-board recording to ONVIF support for third party security system integration. Dahua offers all of this at an effective cost with proven reliability and high performing results.

Dahua OEM SD6C220S-HN Main Features:

  • Supreme 1/2.8” Exmor CMOS Image Sensor
  • 20x optical zoom (5.5mm-110.0mm w/HFOV H: 51°~ 2.6°)
  • H.264 and MJPEG Encoding with Dual Streaming
  • Real-time 30fps at up to 1080P (1920x1080) or 60fps at 720P HD resolution
  • IR Night Vision Effective to 100 meters or 330ft
  • DWDR, Day/Night (ICR), Ultra DNR, Auto iris, Auto focus
  • Superior Low Light in Color mode: 0.05 Lux or B/W mode: 0.005 Lux
  • Remote Monitoring: Web Interface, CMS (DSS/PSS) Client/NVR Software and DMSS Mobile
  • Multiple Protocols: HTTPS, SSL, UPnP, RTSP, DDNS, FTP, QoS, ONVIF and more
  • Quick 240°/s pan speed, 360° endless pan rotation
  • Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
  • Built-in 2/1 alarm I/O interface
  • Two Way Audio w/Line Input/Output and G.711, G.711u or PCM Audio Codec
  • Support intelligent 3D positioning with DH-SD protocol
  • Micro SD memory card slot for local recording (64GB max)
  • Weatherproof IP66
  • Working Environment -40ºC ~ 60ºC / Less than 90% RH
  • Dimensions: Φ204.7mm x 359.9mm or Φ8.05" x 14.16"
  • Weight: 5.0kg or 11.02 lbs.
  • Power: 24VAC


Unfailing HD Video Security:
Superior Surveillance results are realized with the Dahua OEM SD6C220S-HN 20x HD IR PTZ IP Cameras. Such is especially true if one simply places this 20x IR PTZ Camera in place of a traditional Speed Dome camera facing dark environments. Its 100 meter auto-adjusting night vision coupled with added enhancements like Ultra DNR (2D+3D Noise Reduction) to HLC or DWDR settings guarantee superior image clarity all the time. The in-depth camera video settings carry over to dual streaming H.264 and MJPEG video encoding options allowing a wide range of customized video deployments. High frame rates up to 30fps at 1080P or 60fps at 720p all based on the Sony Exmor 2 Megapixel Sensor simply grants superb video surveillance.

On-board Intelligence:
The Dahua OEM SD6C220S-HN 1080P IR PTZ IP Cameras come from a brand with world leading experience in producing Security Cameras and consequently a leader in IR PTZs. The SD6C220S-HN Infrared IP PTZ Security Camera thus includes everything you would expect from a high grade, high performing unit. The in-depth camera image settings to record modes including flexible scheduling allows even further fine-tuned control. Benefits from Alarm I/O and Two Way Audio to event notifications, FTP upload or SD card recording open a world of possibilities. A wide selection of IT protocols and services such as HTTPS, SSL, UPnP, ICMP, IGMP, SNMP, RTSP, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x plus more even furthers that realm of opportunities for sophisticated system management.

NOTICE: For Dahua A2Z Sales primarily OEM product versions which means no brand labels and models may vary but all specifications are otherwise the same as referenced model.

Last Updated January 14, 2016
