Dahua OEM SD6AE230F Star Light HD IR PTZ IP Camera 30x

Write a Review
  • Dahua OEM SD6AE230F Star Light HD IR PTZ IP Camera 30x
  • Dahua OEM SD6AE230F PTZ IP Camera included accessories

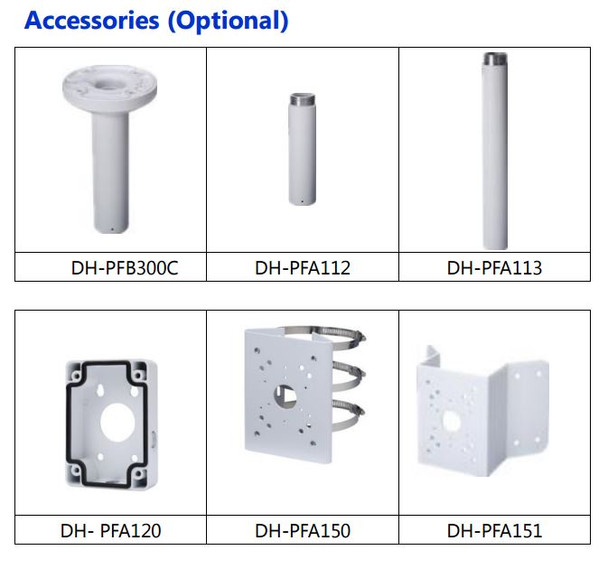

  • Dahua OEM SD6AE230F PTZ IP Camera optional accessories
  • Dahua OEM SD6AE230F PTZ IP Camera dimensions
Contact Us


NOTICE: This product has been discontinued or is EOL - Please contact our Experts or search the category link below or other related categories.


Moved to EOL: February 25, 2020

Dahua OEM SD6AE230F-HNI 30x Star Light 2MP IR PTZ IP Camera is a next generation, fully equipped pan/tilt/zoom security camera. The device is built around an all-new 1/1.9" 2 Megapixel CMOS image sensor yielding incredible low light performance in both color and black and white mode. Coupled with its super powered, built-in infrared LED array night vision is delivered in absolute clarity. This model incorporates layers of advancements in every way, directly competing and surpassing most big brand solutions at a fraction of the cost. It’s well developed web interface to diverse IT protocol support, on-board video analytic intelligence including Auto Tracking, Alarm I/O, Audio I/O, SD Card Support to Hi-PoE function all promise a top tier IP Surveillance System solution. The Dahua SD6AE230F-HNI OEM IR PTZ Cameras are also especially rugged holding high level vandal, impact and weather resistance ratings. Packed with the latest technology this unit ensures maximum results for your investment.

Dahua OEM SD6AE230F-HNI Main Features:

  • 1/1.9" CMOS 2MP CMOS Image Sensor
  • Ultra-low light star-light camera: Color: 0.005 Lux or B/W: 0.0005 Lux
  • H.264 and MJPEG compression with Dual Streaming encoding
  • Superior Range 30x Optical (6mm~180mm HFOV H: 61.2° ~ 2.32°)
  • Full 1080P HD at 30fps Real-time or up to 60fps in 720p HD
  • Superb IR Night vision Distance of up to 200 meters or about 650 feet
  • Supreme Low Light Color: 0.005 Lux, B/W: 0.0005 Lux or 0 Lux (w/IR LED)
  • Defog, WDR, EIS, ROI, Day/Night (ICR), DNR (2D&3D), Auto iris, Auto focus, AWB, AGC, BLC
  • Easy Integration: HTTPS, SSL, UPnP, RTSP, DDNS, FTP, QoS, ONVIF and more
  • Auto-tracking and IVS Video Analytics such as Tripwire, Intrusion, Perimeter, Missing Object, etc.
  • Remote Monitoring: Web interface, CMS (DSS/PSS) Client/NVR and DMSS mobile applications
  • Max 240°/s pan speed, 360° endless pan rotation
  • Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
  • Built-in 7/2 alarm I/O and BNC Composite output
  • Support intelligent 3D positioning with DH-SD protocol
  • Micro SD memory Card Slot for local recording up to 64GB
  • Weatherproof IP67, Vandal Proof High Impact IK10
  • Operating Conditions: -40ºC ~ 70ºC / Less than 90% RH
  • Dimensions Φ240mm x 382mm or Φ9.44" x 15.03"
  • Weight 6.75kg or 14.33 lbs.
  • Power Hi-POE or 24VAC


Superb HD, Low Light or No Light IP Surveillance:
The Dahua OEM SD6AE230F-HNI Star Light 30x IR PTZ IP Cameras are incredible feature rich units providing all the latest sought after attributes. High Definition 1080P video at 30fps or 720P at 60fps and a triple streaming capability including H.264 or MJPEG codec promise great streaming versatility. This units all new CMOS Image Sensor yields flawless 1080P HD video and its low light capabilities are second to none. Rated for Color as low as 0.005 Lux and B/W as low as 0.0005 Lux it’s clear that even without IR this unit is a step ahead of the competition. The addition of a powerful auto-adjusting IR LED Array built-in to the PTZ security cameras produces and amazing 200 meter or about 660ft infrared range. Enhancements like the popular Defog or EIS (electronic image stabilization) to WDR, HLC or Ultra DNR all offer exceptional benefits to counter tough conditions and adverse lighting.

Superior On-board Intelligence:
This Pan/Tilt/Zoom Security Camera is simply built smart. Loaded with accessible settings through numerous menu options. Video adjustments, network configurations, camera settings, intelligent video Analytics, user access, recording, event notification and beyond is all at your fingertips. A wealth of video analysis modes can be found with but only a few of them being PTZ Auto Tracking, Tripwire, Intrusion, Perimeter Protection or Abandoned Object. Take then the easy yet adaptable alternate event triggers, scheduling, notifications or recording options and its clear this PTZ is highly flexible. Admins to installers will also enjoy third party security system integration that is easy via ONVIF support while IT protocol standards like HTTPS, SSL, UPnP, ICMP, IGMP, RTSP, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x plus more promise to make even more possible.

Fully Equipped Totally Rugged:
Dahua OEM SD6AE230F-HNI Star Light 30x IR PTZ IP Camera is an undoubtedly high performing Pan/Tilt/Zoom security camera. Its full range of the latest technology advances provide a stunning combination for even better results. The solution can use a Hi-PoE power device or utilize the common 24VAC power supply type. Its rugged design includes an IK10 high impact, vandal resistant casing and its IP67 weatherproof rating raises it a step above the more common IP66 rated competitors. Likewise ultra-low temperatures ensure that in practically any environment it is more than a suitable solution. Including a Wall bracket, optional ceiling brackets, pole mounts adapters and more can be acquired to perfect your install needs.

NOTICE: For Dahua A2Z Sales primarily OEM product versions which means no brand labels and models may vary but all specs are otherwise the same as referenced model.

Last Updated January 14, 2016
