Dahua OEM SD59220S-HN 20x IR HD IP PTZ Security Camera

Write a Review
  • Dahua OEM SD59220S-HN SD59230S-HN IP PTZ Security Camera
  • Dahua OEM SD59220S-HN IR HD IP PTZ Camera
  • Dahua OEM SD59220S-HN PTZ included accessories

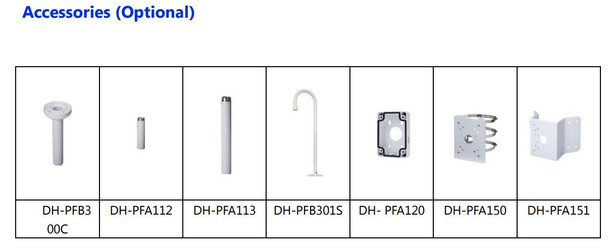

  • Dahua OEM SD59220S-HN PTZ optional accessories
  • Dahua OEM SD59220S-HN dimensions
Contact US


NOTICE: This product has been discontinued or is EOL - Please contact our Experts or search the category link below or other related categories.


Moved to EOL: February 25, 2020

Dahua OEM SD59220S-HN 20x IR IP PTZ Security Cameras are an outstanding choice for optimal performance, quality, reliability and cost savings. The unit provides impressive HD video at up to 1080P resolution and further does so even in zero lighting. The auto-adjusting integrated 850nm IR LED Illuminators provide excellent night vision throughout the optical zoom range and up to 100 meters or roughly 330 feet. All Pan/Tilt/Zoom functions mimic a high end PTZ Camera despite its lower than usual cost. The model is also produced with 30x optical lens as the SD59230S-HN. The unit offers SD card storage, Dual Streaming, PoE+, ONVIF, Ultra DNR and more. A complete solution they are ready for indoor or outdoor use with a solid IP66 weatherproof rating.

Dahua OEM SD59220S-HN Main Features:

  • Superior 1/2.8” Exmor CMOS Image Sensor
  • 20x optical zoom 5.5-110mm w/HFOV H: 51°~ 2.60° (30x Optional SD59230S-HN)
  • H.264 or MJPEG Compression with Dual-streaming
  • Real-time at up to 1080P or 60fps at 720P resolution
  • DWDR, Day/Night (ICR), Ultra DNR, Auto iris, Auto focus
  • Smart IR Illumination up to 100 meters or 330 feet
  • Remote Monitoring: Web Interface, CMS (DSS/PSS) Client/NVR and DMSS Mobile
  • Easy Integration: HTTPS, SSL, UPnP, RTSP, DDNS, FTP, QoS, ONVIF and more
  • Fast 400°/s pan speed, 360° endless pan rotation w/precise PTZ movement
  • Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
  • Built-in 2/1 alarm I/O interface
  • Support intelligent 3D positioning with DH-SD protocol
  • Micro SD Card Slot for up to 64GB cards
  • Weatherproof IP66 Outdoor Ready
  • Operating Temperature: -40ºC ~ 70ºC / Less than 90% RH
  • Dimensions: Φ186mm x 309mm or Φ7.32" x 12.16"
  • Weight: 3.5kg or 7.71 lbs.
  • Power Input: 24VAC or POE+ 802.3at

Excellent Day/Night HD Video Security:
Dahua OEM SD59220S-HN 20x and SD59230S-HN 30x Infrared 1080P HD PTZ Cameras yield more than satisfying results for a most reasonable investment. Built with a powerful 2 megapixel CMOS image Sensor and the addition of true day/night with added image enhancements produces vividly clear HD IP Surveillance. The units integrated Infrared LED illumination is effective to ranges of a 100 meters (or about 330ft) and its auto-adjusting (or manually) wide to narrow Smart IR night vision spread provides clearly effective results throughout the zoom range. Dual Streaming of H.264 and MJPEG to image advancement settings like Ultra DNR or DWDR combine in an easily navigated web interface for maximum video adaptability.

Professional Pan/Tilt/Zoom:
The OEM Dahua SD59230S-HN and SD59230S-HN 30x both include a quality Pan/Tilt/Zoom Mechanism that deliver excellent high speed, highly accurate movement. The IR HD PTZ IP Camera is likewise equipped with all the pro Pan/Tilt/Zoom functions you would hope for including Preset, Auto-Pan, Auto-Scan, Tour and Pattern modes. Of course it features endless pan and auto-flip for optimal active surveillance. Preset Speeds are achieved at 400 degrees a second and manual control speeds of 300 degrees per second for pan and 200 degrees for tilt equal great user response. There is not a huge difference actually between the 20x and 30x, though certainly noticeable. The 20x provides a bit less on both the wide and telephoto focal range compared to the 30x. Therefore the upgrade to 30x won't deliver dramatically longer distance but rather is noticed on both sides improving the wide view and telephoto view range.

Outdoor Ready, Easy to Install:
We've tested the Dahua OEM SD59220S-HN 20x and SD59230S-HN 30X IR PTZ IP Cameras in a variety of environments and they are fully ready to withstand harsh winter months or blazing hot summer days. The PTZs feature an IP66 weatherproof rating and offer flexible power input for installation. The typical 24VAC support as well as PoE plus (802.3at) is supported for single cable install. The device includes a wall mount bracket, however various accessories like pole mount adapters to ceiling brackets are optional. The overall quality plus performance per cost is amazing, fully professional they are an ideal selection for a variety of security camera system projects.

NOTICE: For Dahua A2Z Sales primarily OEM product versions which means no brand labels and models may vary but all specs are otherwise the same as referenced model.
