Dahua OEM SD6AL240-HNI 40x Laser IR PTZ IP Camera

  • Dahua OEM SD6AL240-HNI 40x Laser IR PTZ IP Camera
  • Dahua OEM SD6AL240 Laser IR PTZ IP Camera side view
  • Dahua OEM SD6AL240 Laser Infrared PTZ IP Camera IR ON
  • Dahua OEM SD6AL240-HNI PTZ Included Accessories
  • Dahua OEM SD6AL240-HNI PTZ Optional Accessories

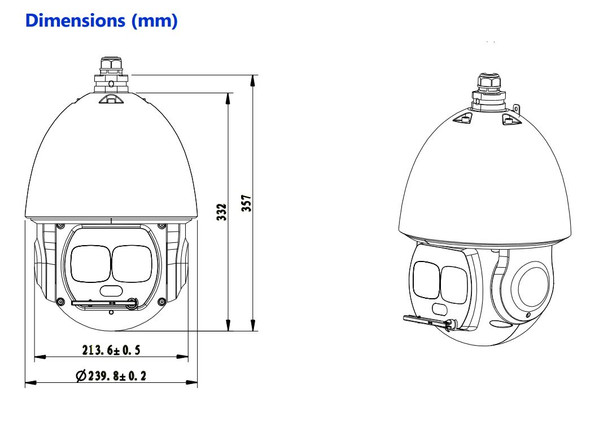

  • Dahua OEM SD6AL240-HNI PTZ Dimensions
Contact Us

Product Description

NOTICE: This product has been discontinued or is EOL - Please contact our Experts or search the category link below or other related categories.


Moved to EOL: February 25, 2020

Dahua OEM SD6AL240-HNI 40x Laser IR 1080P HD PTZ IP Cameras are the next generation in high definition, long range and active surveillance. The device unveils an all new combination of components that couple a powerful 2MP Sony Exmor Sensor, 500m Laser IR Illuminator and a unique 40x optical zoom lens with telephoto abilities well beyond other 30x, 35x, 36x, 40x or 43x HD PTZs. The device is of course feature rich with advanced technology attributes in nearly every category. The Outstanding image clarity of 1080P plus new age Laser IR night vision as well as benefits like Defog, EIS, ROI, and Ultra DNR all together make an exciting new PTZ camera. Its on-board intelligence further reflects a smart design with IVS Video Analytics including Auto Tracking readily at your needs. Even more Triple Streaming, local recording via SD card and many more simple to initiate yet sophisticated functions are all incorporated. With Higher tier weatherproof design including a Wiper this PTZ Camera is truly suited for your harshest environmental conditions.

Dahua OEM SD6AL240-HNI Main Features:

  • 1/2.8" Exmor CMOS Image Sensor
  • Supreme 40x optical zoom (7.9mm-316mm HFOV: 41.5° ~ 1.1°)
  • Stunning 500 meter or 1640 foot Infrared (IR) Laser Illumination
  • H.264 and MJPEG Triple Stream Encoding
  • 60fps at 720P HD and 30fps Real-time at 1080P Full HD
  • Defog, DWDR, EIS, ROI, Day/Night (ICR), Ultra DNR (2D&3D), Auto iris, Auto focus, AWB, AGC, BLC
  • Easy Integration: HTTPS, SSL, UPnP, RTSP, DDNS, FTP, QoS, ONVIF and more
  • Auto-tracking and IVS Video Analytics like Tripwire, Intrusion, Cross Zone, Perimeter, etc.
  • Monitoring: Web Interface, CMS Software (DSS/PSS) NVR & DMSS Mobile App
  • Quick 240°/s pan speed, 360° endless pan rotation and precise Pan/Tilt/Zoom
  • >Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
  • >Built-in 7/2 alarm in/out and BNC Composite output
  • >Support intelligent 3D positioning with DH-SD protocol
  • >Micro SD Card Slot for local storage up to 64GB
  • Operating Range: -40ºC ~ 70ºC / Less than 90% RH
  • Weatherproof IP67 Outdoor with Wiper
  • Dimensions: Φ252mm x 384.3mm or Φ9.92" x 15.12"
  • Weight 6.75kg or 14.33 lbs.
  • Power: 24VAC or Hi-POE


Sharp Video, Supreme Range, Any lighting:
The Dahua OEM SD6AL240-HNI 40x Laser IR HD PTZ IP Security Cameras are a clear example of the next era video surveillance. At the core rest a Sony Exmor 2 Megapixel CMOS Image Sensor producing real-time 1080P HD video at 30fps or even faster 60fps when in 720P HD mode. Additionally Mechanical IR cut-filter, Ultra DNR and other image enhancements yields excellent day/night performance with vividly clear imaging. The PTZ provides in Color video as low as 0.05 lux and in B/W mode an impressive 0.005 low lux rating. If that wasn't good enough, this IR PTZ utilizes a Varifocal infrared Laser that automatically adjust according to zoom. It ultra-powerful range is rated for 500 meters, that's an approximate 1,640 feet. Similarly its 40x optical zoom with a 7.9mm to 316mm lens actually is far beyond what might seem like a comparable 30x PTZ (i.e. 4.3mm to 129mm = 30x as 129mm / 4.3mm = 30x). The difference is clear. In-depth image control and all sorts of advantages like EIS (electronic image stabilization) help conquer the most challenging video security obstacles.

New Age Intelligence:
The Dahua OEM SD6AL240-HNI 40x Laser IR HD PTZ IP Camera is loaded with smart functionality. The IVS or Intelligent Video Analytics including Auto Tracking to Tripwire detection and more are an obvious perk. Further evaluation reveals a web interface that offers in depth network, video analysis, event alarms, event actions and schedule configurations. There is a wide range of IT protocols supported and ONVIF compliance ensures an easy addition to countless 3rd party security systems. There is triple streaming, privacy masking, user access settings, Two Way Audio and 7/2 Alarm I/O support. Combine with the fully functional web interface, client software or mobile applications and make use of the on-board SD card recording for a complete IP camera system in one.

Rugged Construction:
This Pan/Tilt/Zoom Security Cameras appearance alone indicates its readiness to face the harshest weather. Built in a rigid Aluminum casing the PTZ features a higher grade IP67 weatherproof rating. The unit is also outfitted with a wiper and its integrated heater/blower promise flawless operation in the coldest or hottest environments. Another benefit is in addition to its 24VAC power input, these units can also support Hi-PoE simplifying installation many scenarios. Supplied with a 24VAC Power Supply and Wall Mount bracket the unit is also able to support a variety of mounting accessories ranging from ceiling mounts to add-ons like pole mount adapters. Contact the A2Z Security Cameras Experts today and learn more!

NOTICE: For Dahua A2Z Sales primarily OEM product versions which means no brand labels and models may vary but all specs are otherwise the same as referenced model.

Last Updated January 14, 2016
