Description

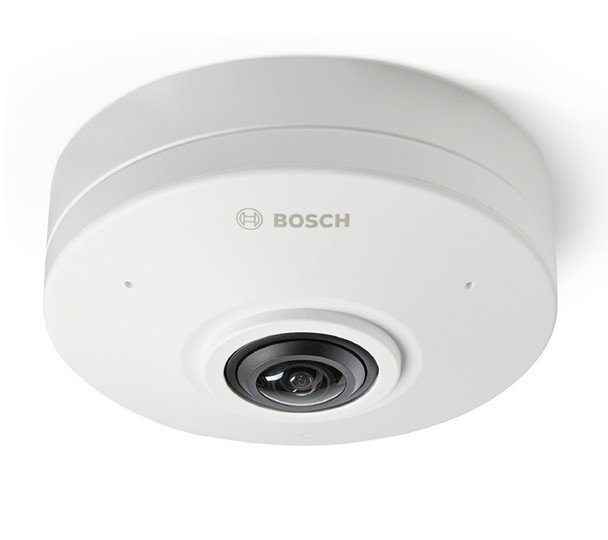

The Bosch IQsight FLEXIDOME panoramic 5100i NDS-5703-F360 is a compact indoor 360° panoramic IP camera designed to provide full-room situational awareness from a single discreet camera. With a 6MP sensor, 4.5MP effective image circle resolution, stereographic panoramic lens, edge or client-side dewarping, High Dynamic Range, IVA Pro analytics, Intelligent Audio Analytics, HDMI output, and H.265 compression, the NDS-5703-F360 is ideal for retail stores, offices, classrooms, healthcare areas, lobbies, reception areas, public spaces, and other indoor locations requiring wide-area coverage without blind spots.
The NDS-5703-F360 captures a complete 360° overview using a 1.155mm fixed-focus lens with a 182° x 182° field of view. When ceiling mounted, it can monitor an entire room from one camera location while allowing operators to digitally pan, tilt, zoom, and dewarp the scene. This makes the Bosch IQsight FLEXIDOME panoramic 5100i useful where multiple fixed cameras would otherwise be needed to cover the same area.
Edge dewarping provides three simultaneous video channels: the full image circle, a dewarped view mode, and an E-PTZ view. Supported view modes include panoramic view, 180° wall-mount panoramic view, E-PTZ, full panoramic view, quad view, double panoramic view, and corridor view. The camera can also record the full circular image for later retrospective dewarping and forensic review.
Built-in Bosch IQsight IVA Pro Buildings and IVA Pro Perimeter support intelligent detection, tracking, and classification of people and vehicles. The camera supports object in field, line crossing, enter / leave field, loitering, follow route, idle / removed object, counting, occupancy, condition change, similarity search, and intelligent tracking throughout the full panoramic image. Camera Trainer is also supported with a free license for custom object detection.
The integrated microphone array with three digital MEMS sensors supports Intelligent Audio Analytics. T3 / T4 alarm detection is pre-installed, and gunshot detection is available with an optional license. The NDS-5703-F360 also includes micro HDMI output up to 1080p for local display or public view monitor applications, making it especially useful in retail and public-facing indoor environments.
Key Features:
• Bosch IQsight FLEXIDOME panoramic 5100i indoor 360° IP camera
• Model: NDS-5703-F360
• 6MP sensor resolution with 4.5MP effective image circle
• 360° panoramic overview without blind spots
• 1.155mm fixed-focus stereographic lens
• 182° x 182° field of view
• Edge or client-side dewarping
• Full image circle, dewarped view, and E-PTZ video channels
• Panoramic, quad, double panoramic, corridor, and E-PTZ view modes
• High Dynamic Range up to 120dB
• IVA Pro Buildings and IVA Pro Perimeter included
• Intelligent Audio Analytics with integrated 3-microphone array
• T3 / T4 alarm detection pre-installed
• Optional gunshot detection license
• Camera Trainer support
• HDMI output up to 1080p via micro HDMI
• H.265 / H.264 / M-JPEG compression
• Bosch Intelligent Streaming
• Edge recording to microSD up to 2TB
• ONVIF Profile S, G, T, and M compliant
• Secure Element / TPM cybersecurity
• Signed firmware and secure boot
• Compact indoor surface-mount design
• IK08 impact protection except lens
• PoE Class 2 power
• NDAA compliant
Technical Specifications Summary:
Camera:
• Resolution: 6MP sensor
• Effective Image Circle: 2112 x 2112 / 4.5MP
• Sensor Type: 1/1.8" CMOS
• Frame Rate: 1fps to 30fps
• Color Sensitivity: 0.099 lux
• Monochrome Sensitivity: 0.008 lux
• High Dynamic Range: 120dB HDR
• Measured Dynamic Range: 105dB
Lens:
• Lens Type: Fixed-focus panoramic lens
• Focal Length: 1.155mm
• Aperture: F2.0
• Field of View: 182° x 182°
• Minimum Object Distance: 0.1m
• Day / Night: Switchable IR-cut filter

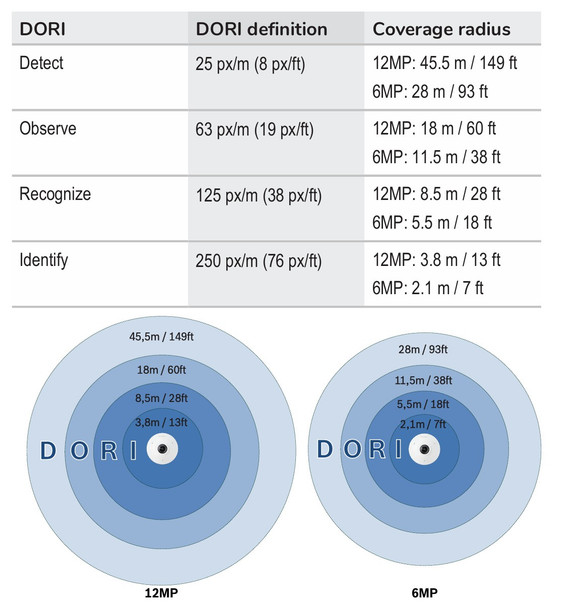

DORI Coverage Radius at 3m Mounting Height:
• Detection: 28m / 93ft
• Observation: 11.5m / 38ft
• Recognition: 5.5m / 18ft
• Identification: 2.1m / 7ft
Video:
• Compression: H.265 / H.264 / M-JPEG
• Video 1 Channel: Full image circle, 2112 x 2112
• Video 2 Channel: Dewarped modes
• Video 3 Channel: E-PTZ up to 1920 x 1080
• Streaming: Multiple configurable streams
• Edge Dewarping: Supported
• Client-Side Dewarping: Supported
• Region of Interest: Supported
• Encoder Regions: 8
• Privacy Masks: 8
• Pre-Positions: 6 independent sectors
• Guard Tours: Up to 6 scenes
• Display Stamping: Individual names and stamps for all video channels
• Scene Modes: Multiple default modes with scheduler
Dewarped View Modes:
• Panoramic view for ceiling mount
• 180° wall-mount panoramic view
• E-PTZ view
• Full panoramic view
• Quad view
• Double panoramic view
• Corridor view
Analytics:
• IVA Pro Buildings
• IVA Pro Perimeter
• IVA Pro Privacy
• Camera Trainer
• Person and Vehicle Object Classes
• Bicycle, Motorcycle, Truck, and Bus Classes for IVA Pro Perimeter
• Object in Field
• Line Crossing
• Enter / Leave Field
• Loitering
• Follow Route
• Idle / Removed Object
• Counting
• Occupancy
• Condition Change
• Similarity Search
• Base Tracking 2D
• Perimeter Tracking 2D / 3D
• People Tracking 3D
• Museum Mode
• Ship Tracking
• Intelligent Tracking Across Full Image Circle
Intelligent Audio Analytics:
• Integrated Microphone Array: 3 digital MEMS audio sensors
• Audio AI: T3 / T4 alarm detection pre-installed
• Gunshot Detection: Optional licensed feature
• Sound Event Metadata: Supported
• Microphone Blocking: Supported via secure license key where required
Storage:
• Internal Storage: 5-second pre-alarm recording
• Memory Card Slot: microSDXC / SDHC / SD
• Local Recording: Up to 2TB
• Industrial SD Card Support: Supported
Inputs / Outputs:
• HDMI Output: Micro HDMI, up to 1080p
• Audio Input: Built-in microphone
• Ethernet: RJ45
• Microphone: Integrated 3-sensor MEMS array
Network & Security:
• Ethernet: 10/100BASE-T and 10/100/1000BASE-T auto-sensing
• ONVIF Profiles: S, G, T, M
• Platform: CPP14
• Crypto Coprocessor / TPM: RSA 4096-bit, AES/CBC 256-bit
• Encryption: TLS 1.2, TLS 1.3, AES 128, AES 256
• Local Storage Encryption: XTS-AES
• Video Authentication: MD5, SHA-1, SHA-256, SHA-512, Checksum
• Firmware Protection: Signed firmware, secure boot
Power:
• PoE: IEEE 802.3af Type 1, Class 2
• Power Consumption: 5.6W typical / 6W maximum
Environmental & Mechanical:
• Housing: Polycarbonate
• Dimensions: 110mm x 47.7mm
• Weight: 0.31kg / 0.68lb
• Color: Signal White, RAL 9003
• Mounting Type: Surface-mounted
• Operating Temperature: -10°C to +45°C
• Storage Temperature: -40°C to +70°C
• Operating Humidity: 5% to 93% non-condensing / 5% to 100% condensing
• Impact Protection: IK08 except lens
• Sustainability: PVC free
• Country of Origin: Thailand
Model Variants:
• NDS-5703-F360 – 6MP 360° Indoor Panoramic Camera, NDAA compliant
• NDS-5703-F360-GOV – 6MP 360° Indoor Panoramic Camera, NDAA and TAA compliant, North America only
Compatible Accessories:
• NDA-5081-PIP – Pendant Interface Plate, 110mm
• NDA-5081-TM – 20° Tilt Mount, 110mm
• NDA-5081-PLEN – In-Ceiling Plenum Rated Kit, 110mm
• NDA-5081-PC – Paintable Cover, 4 pcs
• NDA-3081-4S – 4S Adapter Plate
• NDA-U-WMT – Pendant Wall Mount
• NDA-U-WMP – Wall Mount Plate
• NDA-U-PMT – Pendant Pipe Mount, 12"
• NDA-U-PMTE – Pendant Pipe Extension, 20"
• NDA-U-PMTS – Pendant Pipe Mount, 4"
• NDA-U-PSMB – Pendant Wall/Ceiling Mount SMB
• NDA-U-PMAS – Pole Mount Adapter, Small
• NDA-U-PMAL – Pole Mount Adapter, Large
• NDA-U-CMT – Corner Mount Adapter
• NDA-U-PMTG – Pendant Pipe Mount, Gang Box
• NDA-U-WMTG – Pendant Wall Mount, Gang Box
• NPD-5001-POE – 15W Single-Port PoE Midspan
• NPD-5004-POE – 4-Port PoE Midspan
• MSD-064G / MSD-128G / MSD-256G – Industrial microSD Cards
Optional Software & Licensing:
• MVC-IAA-TRIAL – Intelligent Audio Analytics Trial License, 60-day
• MVC-IAA-GUN – Gunshot Detector License, Perpetual
Default selection is NDS-5703-F360. Specify NDS-5703-F360-GOV for North America government applications requiring NDAA and TAA compliance.
