Description

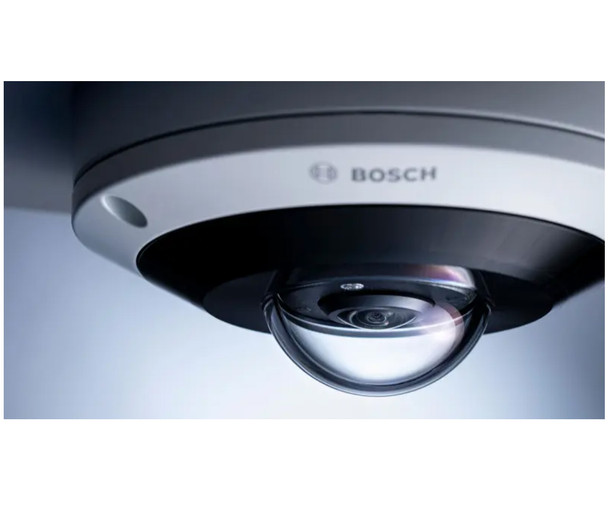

The Bosch IQsight FLEXIDOME panoramic 5100i IR NDS-5704-F360LE is a high-resolution 12MP 360° panoramic IP camera designed for indoor and outdoor surveillance where full situational awareness, integrated infrared illumination, intelligent analytics, and rugged protection are required. With a 12MP sensor, 9MP effective image circle, stereographic panoramic lens, 20m 850nm IR, High Dynamic Range, IVA Pro analytics, Intelligent Audio Analytics, HDMI-compatible video output, H.265 compression, IP66 weather protection, and IK10 impact resistance, the NDS-5704-F360LE is ideal for larger indoor spaces, covered outdoor areas, public facilities, transportation spaces, retail entrances, schools, healthcare facilities, and commercial buildings.
The NDS-5704-F360LE captures a complete 360° view without blind spots using a 1.26mm fixed-focus lens with a 182° x 182° field of view. The 12MP model provides higher detail than the 6MP version, making it the preferred option where better digital zoom, E-PTZ viewing, and forensic review are important. Operators can view the full image circle, dewarped panoramic views, quad views, double panoramic views, corridor views, and E-PTZ output.
Integrated 850nm infrared illumination provides up to 20m / 66ft of night vision with five controllable IR zones. These adjustable IR zones help prevent IR saturation and improve scene balance in darkness. The NDS-5704-F360LE supports 0 lux operation with IR, making it suitable for 24/7 monitoring in low-light or no-light applications.
Bosch IQsight IVA Pro Buildings and IVA Pro Perimeter are built in, supporting intelligent detection and tracking of people, vehicles, bicycles, motorcycles, trucks, and buses. The camera supports line crossing, object in field, enter / leave field, loitering, follow route, idle / removed object, counting, occupancy, condition change, similarity search, 2D / 3D perimeter tracking, people tracking, museum mode, and ship tracking.
The integrated three-sensor MEMS microphone array supports Intelligent Audio Analytics with pre-installed T3 / T4 alarm detection and optional licensed gunshot detection. The NDS-5704-F360LE also includes alarm input/output, audio line input/output, local microSD recording, shielded RJ45 Ethernet, ONVIF Profile S/G/T/M, Secure Element cybersecurity, signed firmware, secure boot, 12VDC / 24VAC / PoE support, aluminum housing, IP66 protection, NEMA Type 4X protection, and IK10 impact resistance.
Key Features:
• Bosch IQsight FLEXIDOME panoramic 5100i IR 360° IP camera
• Model: NDS-5704-F360LE
• 12MP sensor resolution with 9MP effective image circle
• 360° panoramic overview without blind spots
• Higher-detail 12MP panoramic IR model
• Indoor and outdoor surveillance design
• 1.26mm fixed-focus stereographic lens
• 182° x 182° field of view
• Integrated 850nm IR illumination
• IR distance up to 20m / 66ft
• Five controllable IR zones
• 0 lux operation with IR
• High Dynamic Range up to 120dB
• Edge or client-side dewarping
• Full image circle, dewarped view, and E-PTZ channels
• IVA Pro Buildings and IVA Pro Perimeter included
• Intelligent Audio Analytics with integrated 3-microphone array
• T3 / T4 alarm detection pre-installed
• Optional gunshot detection license
• HDMI-compatible video output up to 1080p
• H.265 / H.264 / M-JPEG compression
• Bosch Intelligent Streaming
• Audio line input/output
• Alarm input/output
• Edge recording to microSD up to 2TB
• ONVIF Profile S, G, T, and M compliant
• Secure Element / TPM cybersecurity
• Signed firmware and secure boot
• IP66 weather protection
• NEMA Type 4X protection
• IK10 impact resistance
• PoE, 24VAC, and 12VDC power support
• NDAA compliant
Technical Specifications Summary:
Camera:
• Resolution: 12MP sensor
• Effective Image Circle: 3008 x 3008 / 9MP
• Sensor Type: 1/2.3" CMOS
• Frame Rate: 1fps to 30fps
• Color Sensitivity: 0.15 lux
• Monochrome Sensitivity: 0.048 lux
• Minimum Illumination with IR: 0 lux
• High Dynamic Range: 120dB HDR
• Measured Dynamic Range: 106dB
Lens:
• Lens Type: Fixed-focus panoramic lens
• Focal Length: 1.26mm
• Aperture: F2.0
• Field of View: 182° x 182°
• Minimum Object Distance: 0.1m
• Day / Night: Switchable IR-cut filter
Night Vision:
• IR Distance: 20m / 66ft
• IR Wavelength: 850nm
• LED Type: 360° high-efficiency LED array
• IR Intensity: 5 controllable zones

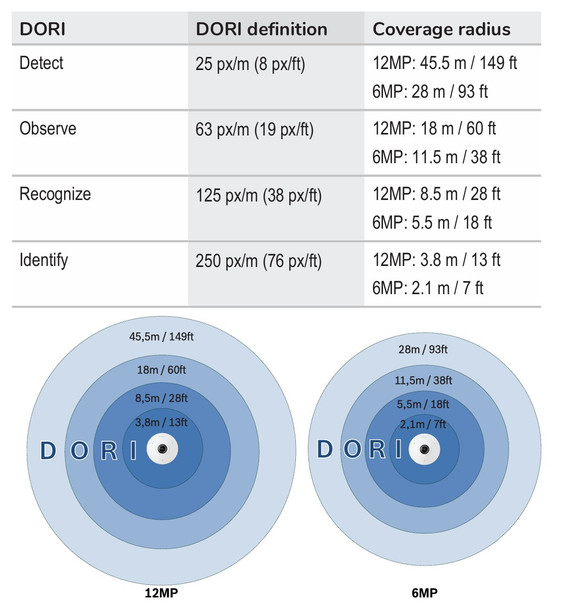

DORI Coverage Radius at 3m Mounting Height:
• Detection: 45.5m / 149ft
• Observation: 18m / 60ft
• Recognition: 8.5m / 28ft
• Identification: 3.8m / 13ft
Video:
• Compression: H.265 / H.264 / M-JPEG
• Video 1 Channel: Full image circle, 3008 x 3008
• Video 2 Channel: Dewarped modes
• Video 3 Channel: E-PTZ up to 1920 x 1080
• Streaming: Multiple configurable streams
• Edge Dewarping: Supported
• Client-Side Dewarping: Supported
• Region of Interest: Supported
• Encoder Regions: 8
• Privacy Masks: 8
• Pre-Positions: 6 independent sectors
• Display Stamping: Individual names and stamps for all video channels
• Scene Modes: Multiple default modes with scheduler
Dewarped View Modes:
• Panoramic view for ceiling mount
• 180° wall-mount panoramic view
• E-PTZ view
• Full panoramic view
• Quad view
• Double panoramic view
• Corridor view
Analytics:
• IVA Pro Buildings
• IVA Pro Perimeter
• IVA Pro Privacy
• Camera Trainer
• Person and Vehicle Object Classes
• Bicycle, Motorcycle, Truck, and Bus Classes for IVA Pro Perimeter
• Object in Field
• Line Crossing
• Enter / Leave Field
• Loitering
• Follow Route
• Idle / Removed Object
• Counting
• Occupancy
• Condition Change
• Similarity Search
• Base Tracking 2D
• Perimeter Tracking 2D / 3D
• People Tracking 3D
• Museum Mode
• Ship Tracking
Intelligent Audio Analytics:
• Integrated Microphone Array: 3 digital MEMS audio sensors
• Audio AI: T3 / T4 alarm detection pre-installed
• Gunshot Detection: Optional licensed feature
• Audio Input: Built-in microphone, line-in, mic-level input
• Audio Output: Line-out
• Audio Streaming: Full duplex / half duplex
Inputs / Outputs:
• Ethernet: Shielded RJ45
• Audio Line In: 0.707Vrms max, 10kΩ typical
• Audio Line Out: 0.707Vrms at 16Ω typical
• Alarm Inputs: 1
• Alarm Outputs: 1
• Alarm Output Voltage: 30VDC, max 0.5A
• HDMI-Compatible Video Output: Up to 1080p
• Fiber Optic Support: Via optional VG4-SFPSCKT and surveillance cabinet
Storage:
• Internal Storage: 5-second pre-alarm recording
• Memory Card Slot: microSDXC / SDHC / SD
• Local Recording: Up to 2TB
• Industrial SD Card Support: Supported
Network & Security:
• Ethernet: 10/100/1000BASE-T
• ONVIF Profiles: S, G, T, M
• Platform: CPP14
• Crypto Coprocessor / TPM: AES/CBC 256-bit
• Encryption: TLS 1.2, TLS 1.3, AES 128, AES 256
• Local Storage Encryption: XTS-AES
• Video Authentication: MD5, SHA-1, SHA-256, SHA-512, Checksum
• Firmware Protection: Signed firmware, secure boot
Power:
• PoE: IEEE 802.3af / 802.3at Type 1, Class 3
• Auxiliary Power: 24VAC ±10% or 12VDC ±10%
• Redundant Power: PoE and auxiliary power can be connected simultaneously
• Power Consumption: 5.6W typical / 11.4W maximum
Environmental & Mechanical:
• Housing: Aluminum with dehumidifying membrane and waterproof connection area
• Bubble: Clear polycarbonate
• Bubble Coating: Anti-reflective and anti-scratch
• Dimensions: 148mm x 70mm
• Weight: 0.82kg / 1.81lb
• Color: Signal White, RAL 9003
• Mounting Type: Surface-mounted
• Operating Temperature:
- IR On: -40°C to +50°C
- IR Off: -40°C to +55°C
• Storage Temperature: -40°C to +70°C
• Operating Humidity: 5% to 93% non-condensing / 5% to 100% condensing
• Impact Protection: IK10
• IP Rating: IP66
• Degree of Protection: NEMA Type 4X
• Sustainability: PVC free
• Country of Origin: Thailand
Model Variants:
• NDS-5704-F360LE – 12MP 360° IP66 IR Panoramic Camera, NDAA compliant
• NDS-5704-F360LE-GOV – 12MP 360° IP66 IR Panoramic Camera, NDAA and TAA compliant, North America only
Compatible Accessories:
• NDA-5080-PIP – Pendant Interface Plate, 148mm
• NDA-5080-PIPW – Pendant Interface Plate with Weather Cap, 148mm
• NDA-5080-TM – 20° Tilt Mount, 148mm
• NDA-5080-PC – Paintable Cover, 4 pcs
• NDA-U-CBB – Conduit Back Box, 148mm, IP66
• NDA-U-WMT – Pendant Wall Mount
• NDA-U-WMP – Wall Mount Plate
• NDA-U-PMT – Pendant Pipe Mount, 12"
• NDA-U-PMTE – Pendant Pipe Extension, 20"
• NDA-U-PMTS – Pendant Pipe Mount, 4"
• NDA-U-PSMB – Pendant Wall/Ceiling Mount SMB
• NDA-U-PMAS – Pole Mount Adapter, Small
• NDA-U-PMAL – Pole Mount Adapter, Large
• NDA-U-CMT – Corner Mount Adapter
• NDA-U-PMTG – Pendant Pipe Mount, Gang Box
• NDA-U-WMTG – Pendant Wall Mount, Gang Box
• NPD-5001-POE – 15W Single-Port PoE Midspan
• NPD-5004-POE – 4-Port PoE Midspan
• VG4-SFPSCKT – Ethernet to SFP Interface Kit
• SFP-2 / SFP-3 / SFP-25 / SFP-26 – Fiber Module Options
• MSD-064G / MSD-128G / MSD-256G – Industrial microSD Cards
Optional Software & Licensing:
• MVC-IAA-TRIAL – Intelligent Audio Analytics Trial License, 60-day
• MVC-IAA-GUN – Gunshot Detector License, Perpetual
Default selection is NDS-5704-F360LE. Specify NDS-5704-F360LE-GOV for North America government applications requiring NDAA and TAA compliance.
