Description
The Bosch IQsight FLEXIDOME panoramic 5100i NDS-5704-F360 is a high-resolution indoor 360° panoramic IP camera designed for full-room surveillance without blind spots. With a 12MP sensor, 9MP effective image circle resolution, stereographic panoramic lens, High Dynamic Range, edge or client-side dewarping, IVA Pro analytics, Intelligent Audio Analytics, HDMI output, and H.265 compression, the NDS-5704-F360 is ideal for retail, education, healthcare, corporate offices, lobbies, reception areas, public facilities, and indoor spaces requiring broad situational awareness with added forensic detail.
The NDS-5704-F360 uses a 1.26mm fixed-focus lens with a 182° x 182° field of view to capture a complete circular image. Operators can view the full image circle, dewarped panoramic views, quad views, double panoramic views, corridor views, or E-PTZ views. This allows a single Bosch IQsight FLEXIDOME panoramic 5100i camera to replace multiple conventional fixed cameras in many indoor applications.
The 12MP model provides a higher effective resolution than the 6MP version, making NDS-5704-F360 the better choice where additional detail is needed for forensic review, digital zoom, E-PTZ operation, or larger indoor areas. The camera records the full circular image for retrospective dewarping, allowing operators to revisit the complete scene even if they were viewing only a region of interest live.
Built-in Bosch IQsight IVA Pro Buildings and IVA Pro Perimeter provide intelligent video analytics for person and vehicle detection, object classification, line crossing, enter / leave field, loitering, follow route, idle / removed object, counting, occupancy, condition change, similarity search, and intelligent tracking through the entire panoramic image. IVA Pro Privacy is also supported, and Camera Trainer can be activated with a free license.
The integrated microphone array with three digital MEMS sensors supports Bosch Intelligent Audio Analytics. T3 / T4 alarm detection is pre-installed, and gunshot detection is available with a perpetual software license. The NDS-5704-F360 includes micro HDMI output up to 1080p for public view monitors or local display applications, making it well suited for retail spaces and security points requiring live local video.
Key Features:
• Bosch IQsight FLEXIDOME panoramic 5100i indoor 360° IP camera
• Model: NDS-5704-F360
• 12MP sensor resolution with 9MP effective image circle
• 360° panoramic overview without blind spots
• 1.26mm fixed-focus stereographic lens
• 182° x 182° field of view
• Higher-detail 12MP panoramic model
• Edge or client-side dewarping
• Full image circle, dewarped view, and E-PTZ video channels
• Panoramic, quad, double panoramic, corridor, and E-PTZ view modes
• High Dynamic Range up to 120dB
• IVA Pro Buildings and IVA Pro Perimeter included
• Intelligent Audio Analytics with integrated 3-microphone array
• T3 / T4 alarm detection pre-installed
• Optional gunshot detection license
• Camera Trainer support
• HDMI output up to 1080p via micro HDMI
• H.265 / H.264 / M-JPEG compression
• Bosch Intelligent Streaming
• Edge recording to microSD up to 2TB
• ONVIF Profile S, G, T, and M compliant
• Secure Element / TPM cybersecurity
• Signed firmware and secure boot
• Compact indoor surface-mount design
• IK08 impact protection except lens
• PoE Class 2 power
• NDAA compliant
Technical Specifications Summary:
Camera:
• Resolution: 12MP sensor
• Effective Image Circle: 3008 x 3008 / 9MP
• Sensor Type: 1/2.3" CMOS
• Frame Rate: 1fps to 30fps
• Color Sensitivity: 0.15 lux
• Monochrome Sensitivity: 0.048 lux
• High Dynamic Range: 120dB HDR
• Measured Dynamic Range: 106dB
Lens:
• Lens Type: Fixed-focus panoramic lens
• Focal Length: 1.26mm
• Aperture: F2.0
• Field of View: 182° x 182°
• Minimum Object Distance: 0.1m
• Day / Night: Switchable IR-cut filter

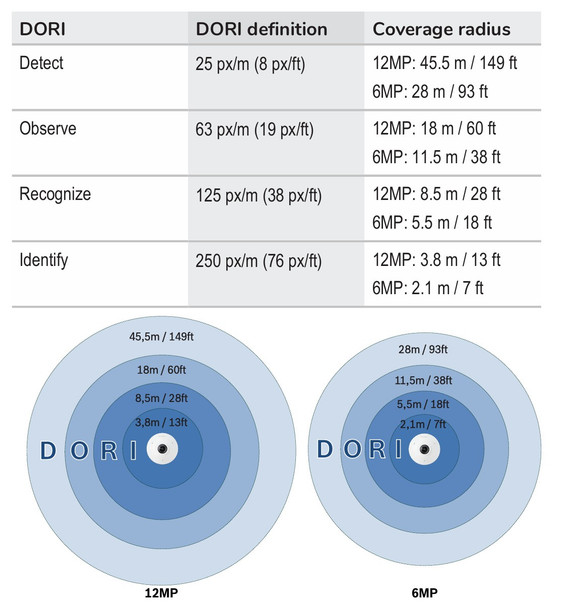

DORI Coverage Radius at 3m Mounting Height:
• Detection: 45.5m / 149ft
• Observation: 18m / 60ft
• Recognition: 8.5m / 28ft
• Identification: 3.8m / 13ft
Video:
• Compression: H.265 / H.264 / M-JPEG
• Video 1 Channel: Full image circle, 3008 x 3008
• Video 2 Channel: Dewarped modes
• Video 3 Channel: E-PTZ up to 1920 x 1080
• Streaming: Multiple configurable streams
• Edge Dewarping: Supported
• Client-Side Dewarping: Supported
• Region of Interest: Supported
• Encoder Regions: 8
• Privacy Masks: 8
• Pre-Positions: 6 independent sectors
• Guard Tours: Up to 6 scenes
• Display Stamping: Individual names and stamps for all video channels
• Scene Modes: Multiple default modes with scheduler
Dewarped View Modes:
• Panoramic view for ceiling mount
• 180° wall-mount panoramic view
• E-PTZ view
• Full panoramic view
• Quad view
• Double panoramic view
• Corridor view
Analytics:
• IVA Pro Buildings
• IVA Pro Perimeter
• IVA Pro Privacy
• Camera Trainer
• Person and Vehicle Object Classes
• Bicycle, Motorcycle, Truck, and Bus Classes for IVA Pro Perimeter
• Object in Field
• Line Crossing
• Enter / Leave Field
• Loitering
• Follow Route
• Idle / Removed Object
• Counting
• Occupancy
• Condition Change
• Similarity Search
• Base Tracking 2D
• Perimeter Tracking 2D / 3D
• People Tracking 3D
• Museum Mode
• Ship Tracking
• Intelligent Tracking Across Full Image Circle
Intelligent Audio Analytics:
• Integrated Microphone Array: 3 digital MEMS audio sensors
• Audio AI: T3 / T4 alarm detection pre-installed
• Gunshot Detection: Optional licensed feature
• Sound Event Metadata: Supported
• Microphone Blocking: Supported via secure license key where required
Storage:
• Internal Storage: 5-second pre-alarm recording
• Memory Card Slot: microSDXC / SDHC / SD
• Local Recording: Up to 2TB
• Industrial SD Card Support: Supported
Inputs / Outputs:
• HDMI Output: Micro HDMI, up to 1080p
• Audio Input: Built-in microphone
• Ethernet: RJ45
• Microphone: Integrated 3-sensor MEMS array
Network & Security:
• Ethernet: 10/100BASE-T and 10/100/1000BASE-T auto-sensing
• ONVIF Profiles: S, G, T, M
• Platform: CPP14
• Crypto Coprocessor / TPM: RSA 4096-bit, AES/CBC 256-bit
• Encryption: TLS 1.2, TLS 1.3, AES 128, AES 256
• Local Storage Encryption: XTS-AES
• Video Authentication: MD5, SHA-1, SHA-256, SHA-512, Checksum
• Firmware Protection: Signed firmware, secure boot
Power:
• PoE: IEEE 802.3af Type 1, Class 2
• Power Consumption: 5.6W typical / 6W maximum
Environmental & Mechanical:
• Housing: Polycarbonate
• Dimensions: 110mm x 47.7mm
• Weight: 0.31kg / 0.68lb
• Color: Signal White, RAL 9003
• Mounting Type: Surface-mounted
• Operating Temperature: -10°C to +45°C
• Storage Temperature: -40°C to +70°C
• Operating Humidity: 5% to 93% non-condensing / 5% to 100% condensing
• Impact Protection: IK08 except lens
• Sustainability: PVC free
• Country of Origin: Thailand
Model Variants:
• NDS-5704-F360 – 12MP 360° Indoor Panoramic Camera, NDAA compliant
• NDS-5704-F360-GOV – 12MP 360° Indoor Panoramic Camera, NDAA and TAA compliant, North America only
Compatible Accessories:
• NDA-5081-PIP – Pendant Interface Plate, 110mm
• NDA-5081-TM – 20° Tilt Mount, 110mm
• NDA-5081-PLEN – In-Ceiling Plenum Rated Kit, 110mm
• NDA-5081-PC – Paintable Cover, 4 pcs
• NDA-3081-4S – 4S Adapter Plate
• NDA-U-WMT – Pendant Wall Mount
• NDA-U-WMP – Wall Mount Plate
• NDA-U-PMT – Pendant Pipe Mount, 12"
• NDA-U-PMTE – Pendant Pipe Extension, 20"
• NDA-U-PMTS – Pendant Pipe Mount, 4"
• NDA-U-PSMB – Pendant Wall/Ceiling Mount SMB
• NDA-U-PMAS – Pole Mount Adapter, Small
• NDA-U-PMAL – Pole Mount Adapter, Large
• NDA-U-CMT – Corner Mount Adapter
• NDA-U-PMTG – Pendant Pipe Mount, Gang Box
• NDA-U-WMTG – Pendant Wall Mount, Gang Box
• NPD-5001-POE – 15W Single-Port PoE Midspan
• NPD-5004-POE – 4-Port PoE Midspan
• MSD-064G / MSD-128G / MSD-256G – Industrial microSD Cards
Optional Software & Licensing:
• MVC-IAA-TRIAL – Intelligent Audio Analytics Trial License, 60-day
• MVC-IAA-GUN – Gunshot Detector License, Perpetual
Default selection is NDS-5704-F360. Specify NDS-5704-F360-GOV for North America government applications requiring NDAA and TAA compliance.
