Description
The Bosch IQsight FLEXIDOME outdoor 5100i NDE-5704-A is a professional 8MP / 4K outdoor dome IP camera designed for high-detail exterior surveillance applications. The NDE-5704-A combines 4K UHD video, Bosch Starlight camera technology, a 3.2-10.5mm motorized P-iris lens, 120dB WDR, IVA Pro analytics, H.265 compression, two-way audio support, Electronic Image Stabilization, local edge recording, and Bosch cybersecurity in a rugged outdoor dome housing.
With 3864 x 2192 effective pixels and up to 30fps operation, the Bosch IQsight FLEXIDOME outdoor 5100i NDE-5704-A is ideal for locations requiring enhanced forensic detail, including commercial properties, campuses, transportation facilities, building perimeters, parking areas, retail exteriors, and critical outdoor entry points. The 3.2-10.5mm motorized lens provides a 105° to 31° horizontal field of view for flexible wide-to-focused monitoring.
Bosch Starlight technology improves low-light image performance, while 120dB WDR helps preserve important detail in outdoor scenes with bright sun, shadow, glare, reflections, and backlighting. The camera includes Intelligent Defog, automatic image rotation, privacy masking, video watermarking, and gyro-based Electronic Image Stabilization for improved outdoor video usability.
Integrated Bosch IQsight IVA Pro Buildings and IVA Pro Privacy support intelligent people and vehicle detection. The NDE-5704-A supports line crossing, object in field, enter / leave field, loitering, follow route, counting, occupancy, condition change, similarity search, and objects stopping or starting to move. Optional IVA Pro licenses expand the camera for perimeter, traffic, appearance, PPE, and visual gun detection applications.
The NDE-5704-A is built for harsh outdoor deployments with IP66 and NEMA Type 4X protection, IK10 impact resistance, aluminum construction, dehumidifying membrane, waterproof connection area, -40°C to +55°C operating range, ONVIF Profile S/G/T/M interoperability, microSD recording up to 2TB, TPM security, secure boot, signed firmware, TLS encryption, and NDAA compliance.
Key Features:
• Bosch IQsight FLEXIDOME outdoor 5100i fixed dome IP camera
• Model: NDE-5704-A
• 8MP / 4K UHD resolution
• 3864 x 2192 effective pixels
• 3.2-10.5mm motorized P-iris lens
• Bosch Starlight low-light camera technology
• High Dynamic Range up to 120dB WDR
• IVA Pro Buildings and IVA Pro Privacy included
• Person and vehicle classification
• Optional IVA Pro analytics licenses supported
• H.265 / H.264 / M-JPEG compression
• Bosch Intelligent Streaming
• Four independent encoder streams
• Electronic Image Stabilization
• Two-way audio support
• USB-C wireless commissioning support
• Edge recording to microSD up to 2TB
• Secure boot, signed firmware, TPM, and TLS encryption
• ONVIF Profile S, G, T, and M compliant
• IP66 and NEMA Type 4X weather protection
• IK10 impact resistance
• PoE, 24VAC, and 12VDC power support
• NDAA compliant
Technical Specifications Summary:
Camera:
• Resolution: 8MP / 4K UHD
• Effective Pixels: 3864 x 2192
• Sensor Type: 1/2.8" CMOS
• Frame Rate: 1fps to 30fps
• Low-Light Technology: Starlight
• Color Sensitivity: 0.046 lux
• Monochrome Sensitivity: 0.015 lux
• Dynamic Range: 120dB WDR
• Measured Dynamic Range: 103dB WDR
Lens:
• Focal Length: 3.2mm to 10.5mm
• Lens Type: P-Iris, IR-corrected
• Aperture: F1.6
• Zoom / Focus: Motorized
• Horizontal Field of View: 105° to 31°
• Vertical Field of View: 57° to 18°
• Day / Night: Switchable IR-Cut Filter
DORI Coverage:
• Detection: 62m to 275m
• Observation: 25m to 109m
• Recognition: 12m to 55m
• Identification: 6m to 28m
Video:
• Compression: H.265 / H.264 / M-JPEG
• Maximum Resolution: 4K UHD 3840 x 2160
• Streaming: Multiple configurable streams
• Camera Latency: <120ms at 8MP30
• GOP Structure: IP, IBP, IBBP
• Signal-to-Noise Ratio: >55dB
• Upright Mode: Supported
• Privacy Masks: 8
• Electronic Image Stabilization: Supported
• Intelligent Defog: Supported
• Automatic Image Rotation: Supported
Analytics:
• IVA Pro Buildings
• IVA Pro Privacy
• Person and Vehicle Classification
• Object in Field
• Line Crossing
• Enter / Leave Field
• Loitering
• Follow Route
• Counting
• Occupancy
• Condition Change
• Similarity Search
• Objects Stopping or Starting to Move
• Audio Detection
• Optional IVA Pro Perimeter, Traffic, Appearance, PPE, and Visual Gun Detection
Storage:
• microSDHC / microSDXC support
• Local Storage: Up to 2TB
• 5-second pre-alarm recording
• Continuous, ring, alarm, event, and schedule recording
• Industrial SD card health monitoring support
Network & Security:
• Ethernet: 10/100BASE-T
• ONVIF Profile S, G, T, M
• Platform: CPP14
• TPM: AES/CBC 256-bit, RSA 4096-bit
• Encryption: TLS 1.2 / TLS 1.3, AES 128/256
• Local Storage Encryption: XTS-AES
• Video Authentication: Checksum, MD5, SHA-1, SHA-256
• Firmware Protection: Signed firmware and secure boot
Power:
• Input Voltage: PoE, 24VAC ±10%, 12VDC ±10%
• PoE: IEEE 802.3af / 802.3at Type 1, Class 3
• Typical / Maximum PoE Consumption: 6.4W / 9.39W
Environmental & Mechanical:
• Weather Rating: IP66 / NEMA Type 4X
• Impact Rating: IK10
• Operating Temperature: -40°C to +55°C
• Cold Start Temperature: -20°C
• Housing Material: Aluminum with dehumidifying membrane and waterproof connection area
• Bubble: Clear polycarbonate with anti-scratch coating

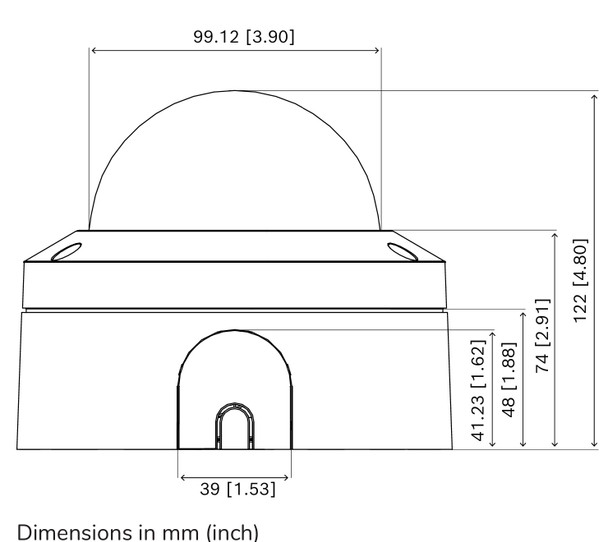

• Dimensions: 148mm x 122mm
• Weight: 1130g / 2.49lb
• Color: RAL 9003
• Country of Origin: Thailand
Model:
• NDE-5704-A – 8MP / 4K Outdoor Dome, 3.2-10.5mm Lens, IP66, IK10, Non-IR
Compatible Accessories:
• NDA-5070-IC – In-Ceiling Mount Kit
• NDA-5070-PLEN – In-Ceiling Plenum Kit
• NDA-5070-PIPW – Pendant Interface Plate with Weather Cap
• NDA-5070-LWMT – L-Shape Wall Mount
• NDA-5070-PIP – Pendant Interface Plate
• NDA-5070-PC – Paintable Cover
• NDA-5070-CBL – Clear Replacement Bubble
• NDA-5070-TBL – Tinted Bubble
• NDA-U-CBB – Conduit Back Box
• NDA-U-CMT – Corner Mount Adapter
• NDA-U-PMAS / NDA-U-PMAL – Pole Mount Adapters
• NDA-U-PSMB – Pendant Wall/Ceiling Mount SMB
• NDA-U-WMT / NDA-U-WMTG – Pendant Wall Mount Options
• NDA-U-PMT / NDA-U-PMTE / NDA-U-PMTG / NDA-U-PMTS – Pendant Pipe Mount Options
• NDA-U-RMT – Pendant Parapet Mount
• NPD-3001-WAP – Portable Wireless Installation Tool
• NCA-WLAN-NA – Wireless Installation Dongle, North America
• MSD-064G / MSD-128G / MSD-256G – Industrial microSD Cards
Optional Software & Licensing:
• MVC-IVA-PER – IVA Pro Perimeter
• MVC-IVA-TRA – IVA Pro Traffic
• MVC-IVA-PPE – IVA Pro PPE
• MVC-IVA-APC – IVA Pro Appearance
• MVC-IVA-VGD – IVA Pro Visual Gun Detection
