Description

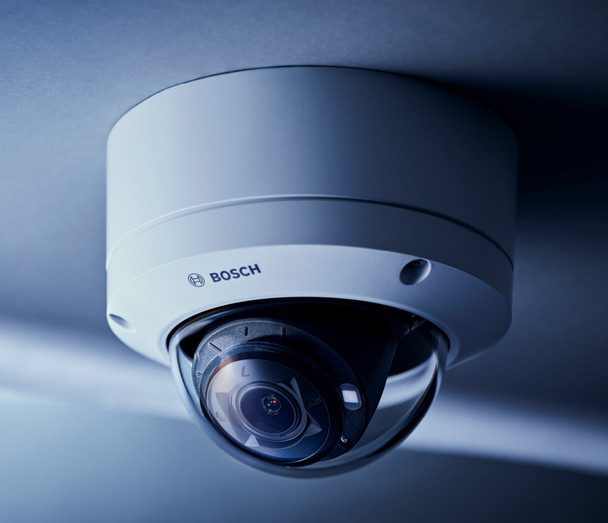

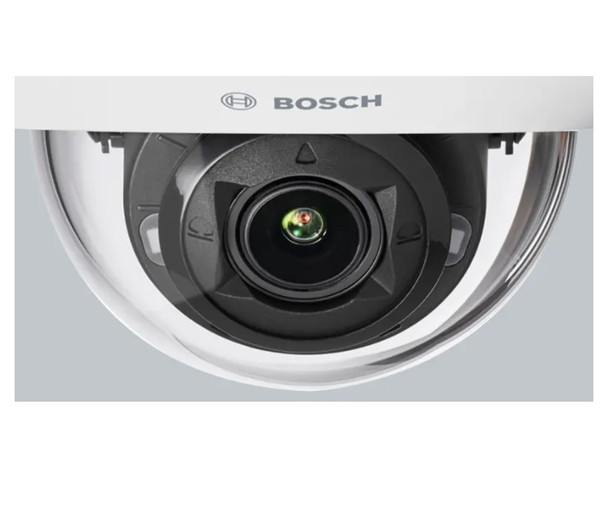

The Bosch IQsight FLEXIDOME indoor 5100i IR 2MP dome camera is a professional indoor IP security camera designed for reliable 24/7 monitoring with built-in infrared illumination, Starlight imaging, intelligent analytics, and flexible installation. The NDV-5702-AL combines Full HD 2MP video, a 3.2-10.5mm motorized P-iris lens, 144dB HDR, IVA Pro analytics, H.265 compression, built-in 850nm IR illumination up to 45m, two-way audio, alarm I/O, edge recording, and Bosch cybersecurity in a rugged indoor dome platform.
With 1920 x 1080 resolution and up to 60fps, the Bosch IQsight FLEXIDOME indoor 5100i IR NDV-5702-AL is well suited for interior spaces requiring smooth motion capture and dependable low-light visibility. The 3.2-10.5mm motorized lens provides flexible scene coverage for hallways, entrances, offices, classrooms, retail spaces, healthcare interiors, commercial buildings, and public indoor areas.
The integrated intelligent IR system provides 850nm illumination up to 45m / 148ft and supports 0 lux operation with IR. The system optimizes IR coverage for the scene to help reduce overexposure on nearby objects. Bosch Starlight technology and 144dB WDR further improve usable image quality in low-light, backlit, and mixed-light indoor environments.
Bosch IQsight IVA Pro Buildings and IVA Pro Privacy come included, delivering deep-learning-based detection and classification for people and vehicles. Supported rules include object in field, line crossing, enter/leave field, loitering, follow route, counting, occupancy, condition change, similarity search, and objects stopping or starting to move. Optional IVA Pro licenses expand use for perimeter, traffic, appearance, PPE, license plate, vehicle make/model, dangerous goods, visual gun detection, and intelligent audio analytics.
The NDV-5702-AL includes analog video output for hybrid migration, audio line in/out, alarm input/output, integrated digital MEMS microphone, USB-C wireless commissioning support, H.265/H.264/M-JPEG streaming, microSD storage up to 2TB, TPM security, secure boot, signed firmware, ONVIF Profile S/G/T/M integration, IP54 protection, IK10 impact resistance, PoE Class 3 power, and NDAA compliance.
Key Features:
• Bosch IQsight FLEXIDOME indoor 5100i IR fixed dome IP camera
• Model: NDV-5702-AL
• 2MP Full HD resolution, 1920 x 1080
• Up to 60fps video performance
• 3.2-10.5mm motorized P-iris lens
• Built-in intelligent IR illumination up to 45m / 148ft
• 850nm high-efficiency IR LED array
• 0 lux operation with IR
• Starlight low-light camera technology
• High Dynamic Range up to 144dB WDR
• IVA Pro Buildings and IVA Pro Privacy included
• Person and vehicle classification
• Optional IVA Pro analytics licenses supported
• H.265 / H.264 / M-JPEG compression
• Bosch Intelligent Streaming
• Electronic Image Stabilization
• Integrated digital MEMS microphone
• Audio line input/output
• Alarm input/output
• Analog video output for hybrid migration
• USB-C wireless commissioning support
• Edge recording to microSD up to 2TB
• Secure boot, signed firmware, TPM, and TLS encryption
• ONVIF Profile S, G, T, and M compliant
• IP54 indoor environmental protection
• IK10 impact resistance
• PoE Class 3 power
• NDAA compliant
Technical Specifications Summary:
Camera:
• Resolution: 2MP Full HD
• Effective Pixels: 1920 x 1080
• Sensor Type: 1/2.8" CMOS
• Frame Rate: 1fps to 60fps
• Low-Light Technology: Starlight
• Color Sensitivity: 0.021 lux
• Monochrome Sensitivity: 0.004 lux
• With IR: 0 lux
• Dynamic Range: 144dB WDR
Lens:
• Focal Length: 3.2mm to 10.5mm
• Lens Type: P-Iris, IR-corrected
• Aperture: F1.6
• Zoom / Focus: Motorized
• Horizontal Field of View: 105° to 31°
• Vertical Field of View: 57° to 18°
• Day / Night: Switchable IR-Cut Filter
Night Vision:
• IR Function: On / Off / Auto / Intelligent
• IR Distance: 45m / 148ft
• IR Wavelength: 850nm
• IR LED Array: 4 high-efficiency LEDs
• IR Intensity: Auto / Manual Adjustable
DORI Coverage:
• Detection: 31m to 138m
• Observation: 12m to 55m
• Recognition: 6m to 28m
• Identification: 3m to 14m
Video:
• Compression: H.265 / H.264 / M-JPEG
• Streaming: Multiple configurable streams
• Intelligent Streaming: Supported
• Camera Latency: <70ms at 1080p60
• Signal-to-Noise Ratio: >55dB
• Upright Mode: Supported
• Privacy Masks: 8
• Electronic Image Stabilization: Supported
Analytics:
• IVA Pro Buildings
• IVA Pro Privacy
• Person and Vehicle Classification
• Object in Field
• Line Crossing
• Enter / Leave Field
• Loitering
• Follow Route
• Counting
• Occupancy
• Condition Change
• Similarity Search
• Objects Stopping or Starting to Move
• Audio Detection
• Optional IVA Pro Perimeter, Traffic, Appearance, PPE, LPR, MMR, DGS, Visual Gun Detection, Intelligent Audio Analytics
Storage:
• microSDHC / microSDXC support
• Local Storage: Up to 2TB
• 5-second pre-alarm recording
• Continuous, ring, alarm, event, and schedule recording
• Industrial SD card health monitoring support
Network & Security:
• Ethernet: 10/100BASE-T
• ONVIF Profile S, G, T, M
• Platform: CPP14
• TPM: AES/CBC 256-bit, RSA 4096-bit
• Encryption: TLS 1.2 / TLS 1.3, AES 128/256
• Local Storage Encryption: XTS-AES
• Firmware Protection: Signed firmware, secure boot
Audio & I/O:
• Integrated Digital MEMS Microphone
• Audio Line In: 0.6Vrms max
• Audio Line Out: 1.0Vrms at 10kΩ typical
• Audio Streaming: Full duplex / half duplex
• Alarm Input: 1
• Alarm Output: 1
• Analog Video Output: SMB connector, CVBS
• USB: USB 2.0 Type-C for wireless setup dongle
Power:
• PoE: IEEE 802.3af / 802.3at Type 1, Class 3
• Typical / Maximum Power: 4.8W / 9.01W
Environmental & Mechanical:
• Protection Rating: IP54
• Impact Rating: IK10
• Operating Temperature: -20°C to +50°C
• Housing: Polycarbonate, re-paintable
• Bubble: Clear polycarbonate with anti-scratch and anti-reflection coating
• Dimensions: 148mm x 122mm
• Weight: 920g
• Color: RAL 9003
• Mounting: Surface mount plate included
• Sustainability: PVC-free
• Country of Origin: Thailand
Model:
• NDV-5702-AL – 2MP Indoor Dome, 3.2-10.5mm Lens, IR, I/O
Compatible Accessories:
• NDA-5070-IC – In-Ceiling Mount Kit
• NDA-5070-PLEN – In-Ceiling Plenum Kit
• NDA-5070-LWMT – L-Shape Wall Mount
• NDA-5080-PIP – Pendant Interface Plate
• NDA-5070-PC – Paintable Cover
• NDA-5070-CBLI – Clear Replacement Bubble for IR Models
• NDA-5070-TBLI – Tinted Bubble for IR Models
• NDA-MCSMB-03M – SMB to BNC Cable, 0.3m
• NDA-MCSMB-30M – SMB to BNC Cable, 3.0m
• NDA-U-CBB – Conduit Back Box
• NDA-U-CMT – Corner Mount Adapter
• NDA-U-PMAS – Pole Mount Adapter, Small
• NDA-U-PMAL – Pole Mount Adapter, Large
• NDA-U-PSMB – Pendant Wall/Ceiling Mount SMB
• NDA-U-WMT – Pendant Wall Mount
• NDA-U-WMTG – Pendant Wall Mount, Gang Box
• NDA-U-PMT – Pendant Pipe Mount, 12"
• NDA-U-PMTE – Pendant Pipe Extension, 20"
• NDA-U-PMTG – Pendant Pipe Mount, Gang Box
• NDA-U-PMTS – Pendant Pipe Mount, 4"
• NPD-3001-WAP – Portable Wireless Installation Tool
• NPD-5001-POE – 15W Single-Port PoE Midspan
• NPD-5004-POE – 4-Port PoE Midspan
• MSD-064G – 64GB Industrial microSD Card
• MSD-128G – 128GB Industrial microSD Card
• MSD-256G – 256GB Industrial microSD Card
• NCA-WLAN-NA – Wireless Installation Dongle, North America
Optional Software & Licensing:
• MVC-IVA-PER – IVA Pro Perimeter
• MVC-IVA-TRA – IVA Pro Traffic
• MVC-IVA-PPE – IVA Pro PPE
• MVC-IVA-APC – IVA Pro Appearance
• MVC-IVA-LPR – IVA Pro License Plate
• MVC-IVA-MMR – IVA Pro Vehicle Make Model
• MVC-IVA-LPRX – IVA Pro License Plate + Make Model
• MVC-IVA-DGS – IVA Pro Dangerous Good Signs
• MVC-IVA-VGD – IVA Pro Visual Gun Detection
