Description

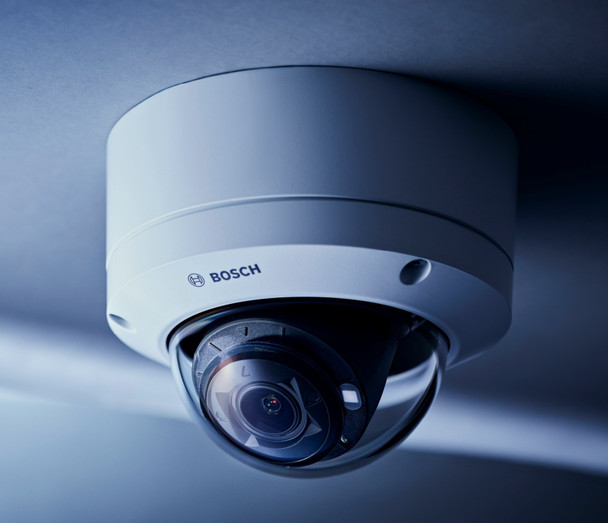

The Bosch IQsight FLEXIDOME indoor 5100i IR 8MP 4K dome camera delivers high-resolution indoor surveillance with built-in infrared illumination, intelligent analytics, and strong low-light performance for demanding security applications. The NDV-5704-AL combines 8MP / 4K UHD video, a 3.2-10.5mm motorized P-iris lens, Starlight imaging, 120dB WDR, IVA Pro analytics, intelligent IR up to 40m, H.265 compression, audio and alarm I/O, edge recording, and Bosch cybersecurity in a professional indoor dome platform.
With 4K UHD resolution up to 3840 x 2160 at 30fps, the Bosch IQsight FLEXIDOME indoor 5100i IR NDV-5704-AL provides excellent detail for large indoor spaces, lobbies, retail areas, offices, schools, healthcare facilities, transportation interiors, and high-value commercial environments. The motorized 3.2-10.5mm lens provides flexible wide-to-focused scene coverage.
The integrated 850nm intelligent IR system provides nighttime visibility up to 40m / 132ft and supports 0 lux operation with IR. Bosch Starlight technology, High Dynamic Range, Intelligent Defog, Electronic Image Stabilization, and automatic image rotation help deliver usable video in complex indoor lighting conditions.
Bosch IQsight IVA Pro Buildings and IVA Pro Privacy are included, supporting person and vehicle detection with rule-based alarms for line crossing, object in field, enter/leave field, loitering, follow route, counting, occupancy, condition change, similarity search, and objects stopping or starting to move. Optional analytics can expand the camera for perimeter, traffic, appearance, PPE, license plate, vehicle make/model, dangerous goods signs, visual gun detection, and intelligent audio analytics.
The NDV-5704-AL includes H.265/H.264/M-JPEG video streaming, Bosch Intelligent Streaming, local microSD recording up to 2TB, integrated digital MEMS microphone, audio line I/O, alarm input/output, USB-C wireless commissioning, TPM security, secure boot, signed firmware, ONVIF Profile S/G/T/M, IP54 protection, IK10 impact resistance, PoE Class 3 power, and NDAA compliance.
Key Features:
• Bosch IQsight FLEXIDOME indoor 5100i IR fixed dome IP camera
• Model: NDV-5704-AL
• 8MP / 4K UHD resolution

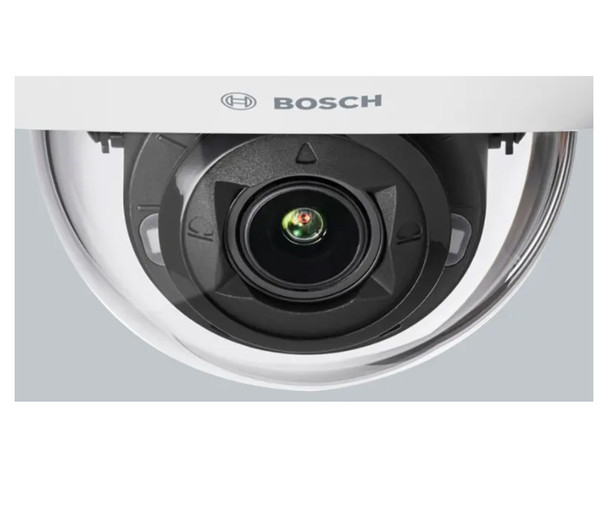

• 3.2-10.5mm motorized P-iris lens
• Built-in intelligent IR illumination up to 40m / 132ft
• 850nm high-efficiency IR LED array
• 0 lux operation with IR
• Starlight low-light camera technology
• High Dynamic Range up to 120dB WDR
• IVA Pro Buildings and IVA Pro Privacy included
• Person and vehicle classification
• Optional IVA Pro analytics licenses supported
• H.265 / H.264 / M-JPEG compression
• Bosch Intelligent Streaming
• Electronic Image Stabilization
• Integrated digital MEMS microphone
• Audio line input/output
• Alarm input/output
• USB-C wireless commissioning support
• Edge recording to microSD up to 2TB
• Secure boot, signed firmware, TPM, and TLS encryption
• ONVIF Profile S, G, T, and M compliant
• IP54 indoor environmental protection
• IK10 impact resistance
• PoE Class 3 power
• NDAA compliant
Technical Specifications Summary:
Camera:
• Resolution: 8MP / 4K UHD
• Effective Pixels: 3864 x 2192
• Sensor Type: 1/2.8" CMOS
• Frame Rate: 1fps to 30fps
• Low-Light Technology: Starlight
• Color Sensitivity: 0.046 lux
• Monochrome Sensitivity: 0.015 lux
• With IR: 0 lux
• Dynamic Range: 120dB WDR
Lens:
• Focal Length: 3.2mm to 10.5mm
• Lens Type: P-Iris, IR-corrected
• Aperture: F1.6
• Zoom / Focus: Motorized
• Horizontal Field of View: 105° to 31°
• Vertical Field of View: 57° to 18°
• Day / Night: Switchable IR-Cut Filter
Night Vision:
• IR Function: On / Off / Auto / Intelligent
• IR Distance: 40m / 132ft
• IR Wavelength: 850nm
• IR LED Array: 4 high-efficiency LEDs
• IR Intensity: Auto / Manual Adjustable
DORI Coverage:
• Detection: 62m to 275m
• Observation: 25m to 109m
• Recognition: 12m to 55m
• Identification: 6m to 28m
Video:
• Compression: H.265 / H.264 / M-JPEG
• Streaming: Multiple configurable streams
• Intelligent Streaming: Supported
• Camera Latency: <120ms at 8MP30
• Signal-to-Noise Ratio: >55dB
• Video Resolution:
- 4K UHD: 3840 x 2160
- 6MP: 3264 x 1840
- 4MP: 2688 x 1612
- 1080p HD and selectable lower resolutions
• Upright Mode: Supported
• Privacy Masks: 8
• Electronic Image Stabilization: Supported
Analytics:
• IVA Pro Buildings
• IVA Pro Privacy
• Person and Vehicle Classification
• Object in Field
• Line Crossing
• Enter / Leave Field
• Loitering
• Follow Route
• Counting
• Occupancy
• Condition Change
• Similarity Search
• Objects Stopping or Starting to Move
• Audio Detection
• Optional IVA Pro Perimeter, Traffic, Appearance, PPE, LPR, MMR, DGS, Visual Gun Detection, Intelligent Audio Analytics
Storage:
• microSDHC / microSDXC support
• Local Storage: Up to 2TB
• 5-second pre-alarm recording
• Continuous, ring, alarm, event, and schedule recording
• Industrial SD card health monitoring support
Network & Security:
• Ethernet: 10/100BASE-T
• ONVIF Profile S, G, T, M
• Platform: CPP14
• TPM: AES/CBC 256-bit, RSA 4096-bit
• Encryption: TLS 1.2 / TLS 1.3, AES 128/256
• Local Storage Encryption: XTS-AES
• Firmware Protection: Signed firmware, secure boot
Audio & I/O:
• Integrated Digital MEMS Microphone
• Audio Line In: 0.6Vrms max
• Audio Line Out: 1.0Vrms at 10kΩ typical
• Audio Streaming: Full duplex / half duplex
• Alarm Input: 1
• Alarm Output: 1
• USB: USB 2.0 Type-C for wireless setup dongle
Power:
• PoE: IEEE 802.3af / 802.3at Type 1, Class 3
• Typical / Maximum Power: 6.4W / 10.3W
Environmental & Mechanical:
• Protection Rating: IP54
• Impact Rating: IK10
• Operating Temperature: -20°C to +50°C
• Housing: Polycarbonate, re-paintable
• Bubble: Clear polycarbonate with anti-scratch and anti-reflection coating

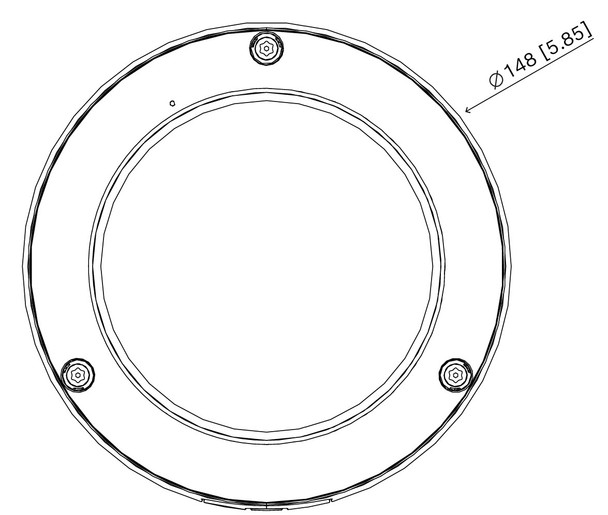

• Dimensions: 148mm x 122mm
• Weight: 920g
• Color: RAL 9003
• Mounting: Surface mount plate included
• Sustainability: PVC-free
• Country of Origin: Thailand
Model:
• NDV-5704-AL – 8MP / 4K Indoor Dome, 3.2-10.5mm Lens, IR, I/O
Compatible Accessories:
• NDA-5070-IC – In-Ceiling Mount Kit
• NDA-5070-PLEN – In-Ceiling Plenum Kit
• NDA-5070-LWMT – L-Shape Wall Mount
• NDA-5080-PIP – Pendant Interface Plate
• NDA-5070-PC – Paintable Cover
• NDA-5070-CBLI – Clear Replacement Bubble for IR Models
• NDA-5070-TBLI – Tinted Bubble for IR Models
• NDA-U-CBB – Conduit Back Box
• NDA-U-CMT – Corner Mount Adapter
• NDA-U-PMAS – Pole Mount Adapter, Small
• NDA-U-PMAL – Pole Mount Adapter, Large
• NDA-U-PSMB – Pendant Wall/Ceiling Mount SMB
• NDA-U-WMT – Pendant Wall Mount
• NDA-U-WMTG – Pendant Wall Mount, Gang Box
• NDA-U-PMT – Pendant Pipe Mount, 12"
• NDA-U-PMTE – Pendant Pipe Extension, 20"
• NDA-U-PMTG – Pendant Pipe Mount, Gang Box
• NDA-U-PMTS – Pendant Pipe Mount, 4"
• NPD-3001-WAP – Portable Wireless Installation Tool
• NPD-5001-POE – 15W Single-Port PoE Midspan
• NPD-5004-POE – 4-Port PoE Midspan
• MSD-064G – 64GB Industrial microSD Card
• MSD-128G – 128GB Industrial microSD Card
• MSD-256G – 256GB Industrial microSD Card
• NCA-WLAN-NA – Wireless Installation Dongle, North America
Optional Software & Licensing:
• MVC-IVA-PER – IVA Pro Perimeter
• MVC-IVA-TRA – IVA Pro Traffic
• MVC-IVA-PPE – IVA Pro PPE
• MVC-IVA-APC – IVA Pro Appearance
• MVC-IVA-LPR – IVA Pro License Plate
• MVC-IVA-MMR – IVA Pro Vehicle Make Model
• MVC-IVA-LPRX – IVA Pro License Plate + Make Model
• MVC-IVA-DGS – IVA Pro Dangerous Good Signs
• MVC-IVA-VGD – IVA Pro Visual Gun Detection
