Bosch DVR-630-16A/DVR-650-16A 16ch DVR Digital Video Recorder

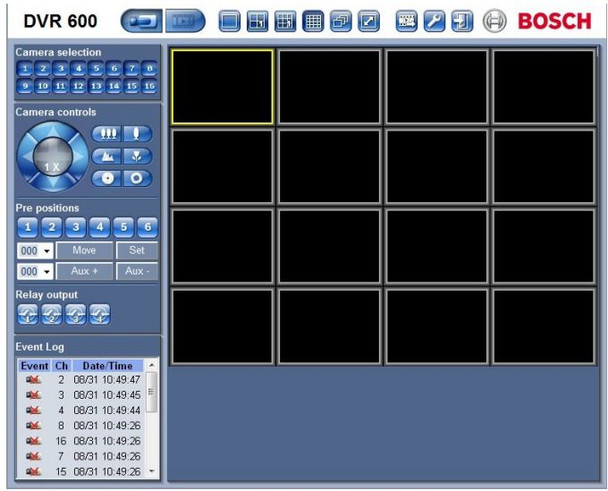

Bosch DVR-630-16A/ DVR-650-16A series 16ch Digital Video Recorder (DVR) is a real-time, feature rich Linux based DVR system.  This Bosch DVR unit includes superb H.264 video compression and is able to provide up to Real-time (480fps) CIF resolution or full 4CIF resolution in lower frame rates. The Bosch DVR is further benefitted by comprehensive local monitoring capabilities with features like HDMI output for High Definition (HD) monitors. The unit further supports IntuiKey Digital Keyboard, Mouse or the Remote Control and Front Panel can also be used for total system operation. Flexible video security system management is achieved by the Bosch Control Center, Remote PC Software allowing full DVR operation and configuration. In fact, the Control Center Software is able to support multiple Bosch DVRs and alternative remote viewing options including Mobile Devices and Web Browser.
Bosch DVR-630-16A/ DVR-650-16A DVR System is a complete 16ch Video Surveillance Solution including all the professional functions expected in a modern DVR. The system includes looping BNC outputs, Audio inputs and outputs, RS-485 PTZ Control, Digital I/O connections and RS-232 interface. The unit is sold with a DVD writer as DVR-650-16A or without as models DVR-630-16A.  The Bosch DVRs also offer flexible storage options as well as support for third party drives and USB export.  The Bosch 600 Series Digital Video Recorders are built to provide simple setup, use and reliable operation with all the best functions for your CCTV Security Camera System.

Bosch DVR-630-16A/DVR-650-16A Main Features:

• 16-Channel real-time recording with CIF resolution (4CIF with Lower FPS)
• Flexible viewing with two monitor outputs Including HDMI HD Monitor Support
• Powerful H.264 Video Compression
• Remote viewing, playback, control, and configuration
• Two Way Audio with inputs and outputs
• Digital I/O, Looping BNC, RS-232C and USB
• Supports Intuikey Digital Keyboard, Mouse, Remote and Front Panel Control
• DVR viewer Apple App supports IPhone, IPad, and IPod
• Easy Pan/Tilt/Zoom camera control RS-485 Interface
• DVD Writer option DVR-650 / NO DVD Write Option DVR-630
• Supports Third Party Hard Drives! (Enterprise Only Recommended)

Bosch DVR-630-16A/DVR-650-16A specifications:

Electrical
Rated Voltage and Power AC input 110–240 VAC; 50/60 Hz; 1.8 A
External power adapter External power adapter DC output 12 VDC; 5 A
DVR Power input 12 VDC; 3.5 A; 145 BTU/h
Video Inputs
Inputs Composite video 1 Vpp, 75 ohm, automatic termination; PAL / NTSC auto-detect
AGC Automatic gain adjustment for each video input
Video outputs
Outputs Monitor A: VGA RGB
Monitor B: VGA RGB
Live Resolution (Mon.A)
800x600 (4:3), 1024x768 (4:3)
1280x1024 (5:4)
1366x768 (16:9)
1440x900 (16:10)
Digital Zoom 2 times
Streaming video H.264 compression Audio
Inputs Mono RCA, 1.0 Vpp
Output Mono RCA, 1.0 Vpp
Compression ADPCM
Sample rate 16 kHz per channel
Bit rate 8-bit
Alarm Handling
Inputs 16 inputs configurable NO/NC, max. input voltage 15 VDC
Outputs 4 Relay outputs, configurable NO/NC, max. rated
30 VAC, 40 VDC 0.5 A continuous or 10 VA
Control
RS485 Output signals according to RS485, max. signal voltage -8 to +12 V
RS485 Support Bosch domes, and Pelco P and D
Connectors
Video Inputs 8 or 16 looping BNC, auto termination
Monitor 2 VGA D-SUB
Alarm connectors Screw terminal inputs, cable diameter AWG26-16 (0.13-1.5 mm)
Audio Inputs 4 RCA (CINCH)
Audio Output 2 RCA (CINCH)
Ethernet RJ45, 10/100 BaseT according to IEEE802.3
RS485 Screw terminal output, cable diameter AWG28-16 (0.08-1.5 mm)
USB 2.0 One front and one rear USB connector for mouse or
USB memory device
Storage
Hard Disks Supports up to 2 SATA hard drives maximum 2TB each
(Third party hard disks are supported from firmware version 2.0.6 onwards. A list of tested disks is available in the instruction manual.)*Bosch cannot be held liable for any loss or damages or system malfunction resulting from the use of non-Bosch drives in DVR recorders.
Video recording
Record Rate (IPS)
NTSC Max. 30 IPS per channel, configurable: 30, 15, 7.5, 5, 3, 1
PAL Max. 25 IPS per channel, configurable: 25, 12.5, 6.25, 5, 2.5, 1
Recording Quality Best, High, Normal, Low, Lowest
Average Recording Capacity (16 channels, 500 GB)
CIF, Normal, 25/30 IPS PAL: 138 hours, NTSC: 170 hours
CIF, Normal, 6.25/7.5 IPS PAL: 350 hours, NTSC: 425 hours
2CIF, Normal, 12.5/15 IPS PAL: 115 hours, NTSC: 144 hours
4CIF, Normal, 6.25/7.5 IPS PAL: 93 hours, NTSC: 115 hours
Maximum recording rates per channel
Local 16 channels
4CIF PAL: 6 IPS, NTSC: 7.5 IPS
2CIF PAL: 12.5 IPS, NTSC: 15 IPS
CIF PAL: 25 IPS, NTSC: 30 IPS
Remote (network) 16 channels
CIF PAL: 6.75 IPS, NTSC: 7.5 IPS
Display Modes
Monitor A Full, quad, multi-screen (live and playback), full sequence, alarm call-up (live)
Monitor B Full, quad, multi-screen, full sequence, alarm call-up
(live)
Recording Modes
Normal partition Continuous recording (with or without overwriting)
Event partition Input and motion recording (with or without overwriting)
Mechanical
Dimensions (WxDxH) 355 x 362 x 78 mm (13.9 x 14.2 x 3.1 in)
excluding cabling
Weight 4.3 kg (9.46 lbs.) approx.
Environmental Temperature
- Operating +0°C to +40°C (+32°F to +104°F)
- Storage -40°C to +70°C (-40°F to +158°F)
Humidity
- Operating <93% non-condensing
- Storage <95% non-condensing
Certifications and approvals
Region Certification
Europe CE
USA FCC
UL
Canada CSA
Standards
FCC Part 15, Class B
EMC Directive 2004/108/EC
Immunity: EN50130-4
Emission: EN55022 Class B
Harmonics: EN61000-3-2
Voltage fluctuations: EN61000-3-3
UL60950-1
LV Directive 2006/95/EC, EN60950-1
CAN/CSA—C22.2 no. 60950-1
C-Tick


DVR-630-16A 630 Series DVR, 16ch, base unit
DVR-630-16A

DVR-630-16A050 630 Series DVR, 16ch, 500GB
DVR-630-16A050

DVR-630-16A100 630 Series DVR, 16ch, 1TB
DVR-630-16A100

DVR-630-16A200 630 Series DVR, 16ch, 2TB
DVR-630-16A200


DVR-650-16A 650 Series DVR, 16ch, DVD, base unit
DVR-650-16A

DVR-650-16A050 650 Series DVR, 16ch,DVD, 500GB
DVR-650-16A050


DVR-650-16A100 650 Series DVR, 16ch, DVD, 1TB
DVR-650-16A100


DVR-650-16A200 650 Series DVR, 16ch, DVD, 2TB
DVR-650-16A200
