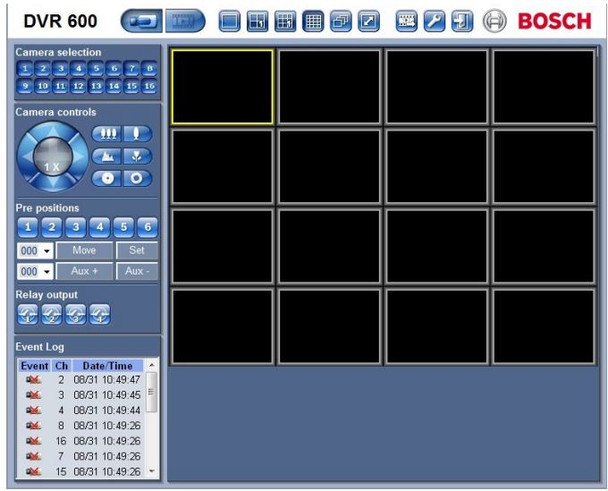

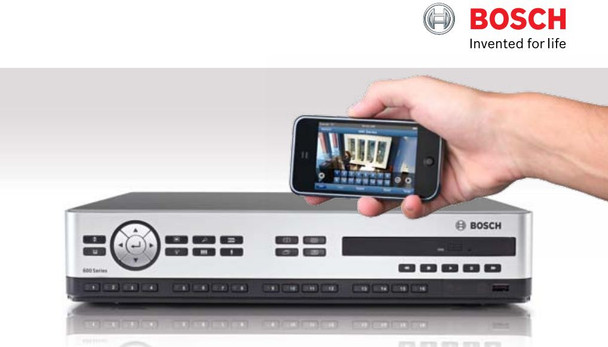

Bosch DVR-670-16A Digital Video Recorder (DVR) is a top of the line Real-time system delivering superior CCTV video surveillance. The Bosch DVR-670-16A DVR is a Linux embedded system that offers absolute reliability with H.264 advanced compression for superior image clarity and optimized file size. The Bosch DVR-670-16A is available with a DVD-RW or without, comes with several storage options including external storage accessories. The Bosch DVR is designed for professional CCTV surveillance but maximum ease of use. The DVR system simply needs a few basic inputs and recording automatically begins on setup. All of the common functions of professional DVR units are included and the Bosch Control Center PC Software allows seamless control of even multiple Bosch DVRs. Mobile Devices are also supported ensuring excellent flexibility in remote viewing.

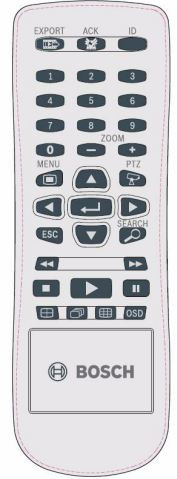

The Bosch DVR-670-16A 16 channel DVR System provides the full range of professional attributes including Audio support, Alarm inputs, relay outputs, RS-485 PTZ Control, RS-232 Interface to looping BNC outputs. The Bosch 16 channel DVR also supports powerful local monitoring with HDMI output for True High Definition display on HD monitors. The unit further includes local operation support for IntuiKey Digital Keyboard, Mouse, Remote Control or the fully functional front panel. The Bosch DVR 670 Series also has four audio inputs and two audio outputs for two way communication. The system is an ideal solution for high end CCTV Security Camera Systems requiring the full range of features and the top in CCTV Video Surveillance performance.
Bosch DVR-670-16A Main Features:
Bosch DVR-670-16A Specifications:
Electrical
Rated Voltage and Power
External power adapter AC input 110–240 VAC; 50/60 Hz; 1.8 A
External power adapter DC output 12 VDC; 5 A
DVR Power input 12 VDC; 3.5 A; 145 BTU/h
Video Inputs
Inputs Composite video 1 Vpp, 75 ohm, automatic termination; PAL / NTSC auto-detect
AGC Automatic gain adjustment for each video input
Video outputs
Outputs Monitor A: VGA (Default) or HDMI
Monitor B: HDMI (Default) or CVBS
(Default monitor output types are user selectable)
Live Resolution
(Mon.A & B)
800x600 (4:3), 1024x768 (4:3). 1280x1024 (5:4), 1920x1080 (16:9 1080P HD)
Digital Zoom 2 times
Streaming video H.264 compression
Audio
Inputs Mono RCA, 1.0 Vpp
Output Mono RCA, 1.0 Vpp
Compression ADPCM
Sample rate 16 kHz per channel
Bit rate 8-bit
Alarm Handling
Inputs:16 inputs configurable NO/NC, max. input voltage 15 VDC
Outputs 4 Relay outputs, configurable NO/NC, max. rated 30 VAC, 40 VDC 0.5 A continuous or 10 VA
Control
RS485 Output signals according to RS485, max. signal voltage -8 to +12 V
RS232 Output signals according to EIA/TIA-232-F, max input voltage ±25 V
Supported Protocols Pelco P and D (over RS-485)
Bosch OSRD (over RS-485 or RS-232 with the optional LTC 8786 Series Biphase Converter)
Connectors
Video Inputs 16 looping BNC, auto termination
Monitor
1 VGA D-SUB
1 HDMI
1 CVBS
Alarm connectors Screw terminal inputs, cable diameter
AWG26-16 (0.13-1.5 mm)
Audio Inputs 4 RCA (CINCH)
Audio Output 2 RCA (CINCH)
Ethernet RJ45, 10/100 BaseT according to IEEE802.3
RS485 Screw terminal output, cable diameter AWG28-16 (0.08-1.5 mm)
RS232 DB9 male, 9-pin D-connector
USB 2.0 One front and one rear USB connector for
mouse or USB memory device
External storage eSATA connector
Maximum Storage Capacity
Internal Supports up to 2 SATA hard drives, max.
2TB each(Third party hard disks are supported from firmware version 2.0.6 onwards. A list of tested disks is available in the instruction manual.)*
External 4 JBOD hard drives, max. 2TB each via eSATA connection
*Bosch cannot be held liable for any loss or damages or system malfunction resulting from the use of non-Bosch drives in DVR recorders.
Video recording
Record Rate (IPS)
NTSC Max. 30 IPS per channel, configurable: 30, 15, 7.5, 5, 3, 1
PAL Max. 25 IPS per channel, configurable: 25, 12.5, 6.25, 5, 2.5, 1
Recording Quality Best, High, Normal, Low, Lowest
Maximum recording rates per channel
Local 16 channels
4CIF PAL: 25 IPS, NTSC: 30 IPS
Remote (network) 16 channels
CIF PAL: 25 IPS, NTSC: 30 IPS
Display Modes
Monitor A Full, quad, multi-screen (live and playback),
full sequence, alarm call-up (live)
Monitor B Full, quad, multi-screen, full sequence,
alarm call-up (live)
Recording Modes
Normal partition Continuous recording (with or without overwriting)
Event partition Input and motion recording (with or without overwriting)
Mechanical
Dimensions (WxDxH) 355 x 362 x 78 mm (13.9 x 14.2 x 3.1 in)
excluding cabling
Weight 4.3 kg (9.46 lbs.) approx.
Environmental
Temperature
- Operating +0°C to +40°C (+32°F to +104°F)
- Storage -40°C to +70°C (-40°F to +158°F)
Humidity
- Operating <93% non-condensing
- Storage <95% non-condensing
ORDERING INFO:
DVR-670 16ch. base unit
670 Series DVR, 16-channel, base unit
Commercial Type No: DVR-670-16A000
DVR-670 16ch. base unit + DVD
670 Series DVR, 16-channel, base unit with DVD
Commercial Type No: DVR-670-16A001
DVR-670 16ch. 500 GB
Commercial Type No: DVR-670-16A050
DVR-670 16ch. 500 GB + DVD
Commercial Type No: DVR-670-16A051
DVR-670 16ch. 1 TB
Commercial Type No: DVR-670-16A100
DVR-670 16ch. 1 TB + DVD
Commercial Type No: DVR-670-16A101
DVR-670 16ch. 2 TB
Commercial Type No: DVR-670-16A200
DVR-670 16ch. 2 TB + DVD
Commercial Type No: DVR-670-16A201
