Description

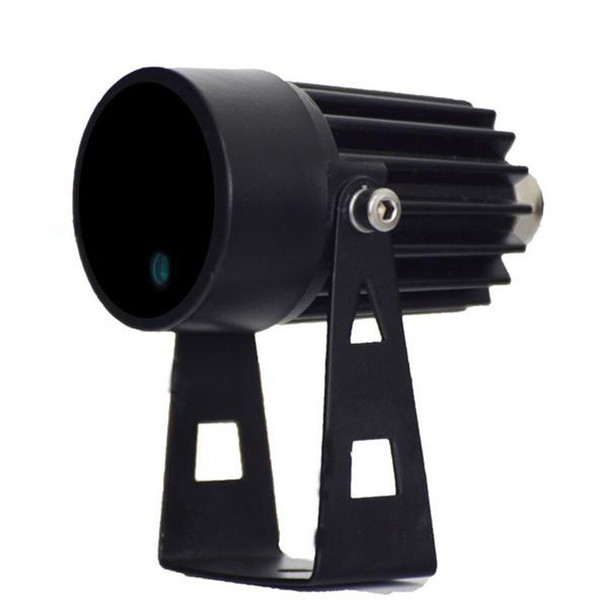

The ALX-SA2-IR is a precision-engineered compact infrared illuminator built to enhance nighttime performance for CCTV and IP surveillance cameras. With a single high-power IR LED and beam angles ranging from 15° to 120°, this model delivers IR lighting from 40m down to 5m depending on the angle selected. It is ideal for small-scale or targeted applications such as building entrances, narrow corridors, ATMs, or elevators.
This unit is available in both 850nm semi-covert and 940nm covert infrared light wavelengths plus comes equipped with an automatic day/night photocell switch for power efficiency. Operating on DC12V with only 300mA current draw, it’s housed in an IP66-rated aluminum body with a high-transmittance protective panel. The ALX-SA2-IR is designed for stable, long-term outdoor or indoor use with a 3-year warranty and LED lifespan rated at 50,000 hours.
Key Features:
- 1 high-power IR LED
- Beam angle models from 15° to 120°
- IR range from 5m (120°) up to 40m (15°)
- Wavelength options: 850nm or 940nm
- Compact, lightweight housing
- IP66-rated weatherproof design
- Automatic day/night switching
- High-efficiency LED circuitry
- Wall-mount bracket included
Specifications:
- LED Type: 1pc high-power IR LED
- Wavelength: 740nm / 850nm / 940nm options
- Beam Angle & IR Distance (850nm):
- 15°: 40m
- 30°: 28m
- 45°: 20m
- 60°: 12m
- 90°: 8m
- 120°: 5m
- Voltage: DC12V / DC24V
- Current: 300mA (850nm)
- Power: ~3.6W
- Housing: Die-cast aluminum
- Panel: High-transmittance panel
- Protection: IP66
- Switch: Automatic day/night photocell
- Operating Temp: -30°C to 50°C
- Mount: Wall mount bracket
- Dimensions: 50 × 50 × 105 mm
- Net Weight: 0.15kg
- Gross Weight: 0.17kg
Model Order Info:
850nm Semi-Covert
ALX-SA2-IR15 15° 40m
ALX-SA2-IR30 30° 28m
ALX-SA2-IR45 45° 20m
ALX-SA2-IR60 60° 12m
ALX-SA2-IR90 90° 8m
ALX-SA2-IR120 120° 5m
940nm Fully Covert
ALX-SA2-9IR15 15° 15m
ALX-SA2-9IR30 30° 12m
ALX-SA2-9IR45 45° 10m
ALX-SA2-9IR60 60° 8m
ALX-SA2-9IR90 90° 3m
ALX-SA2-9IR120 120° 1m
