Description

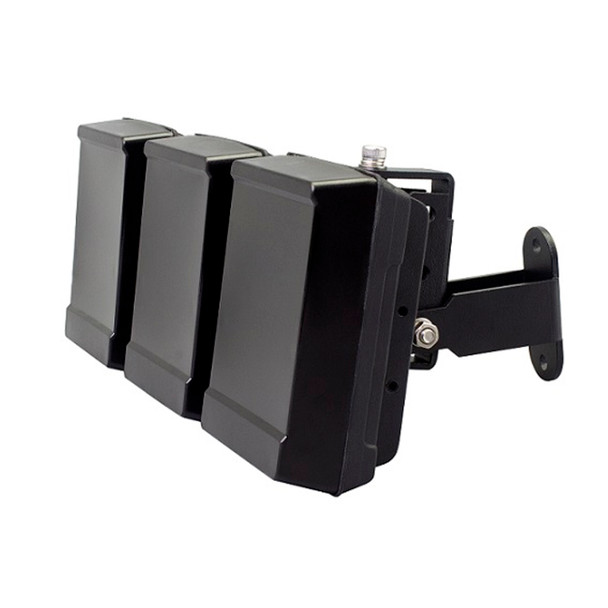

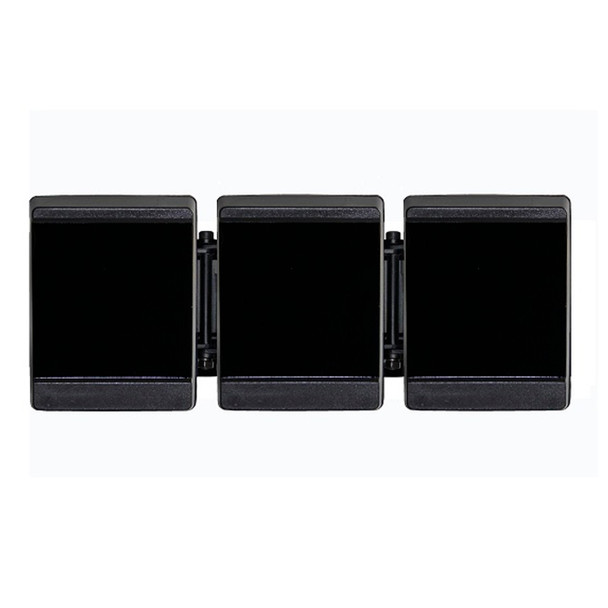

The ALX-SG63-IR Vandal-Proof IR Illuminator is a long-range infrared lighting solution designed for critical surveillance environments. With a rugged aluminum housing rated IK10 for impact protection and IP66 for weather resistance, this illuminator is ideal for installation in outdoor environments, industrial facilities, transit stations, and other high-exposure areas.
Each ALX-SG63-IR model panels are built with a specific light beam angle configuration, which combined and optionally adjusted allow ranges from 15° to 230°. This suites both focused long-distance applications and wide-angle coverage demands. Each model offers a certain range of horizontal adjustment. Infrared output is available in both 850nm semi-covert and 940nm covert options, giving users flexibility for their concealment or visibility preferences. The unit is equipped with 18 high-performance IR LEDs, achieving up to 160m IR distance with the narrowest beam model at 850nm. Fully covert 940nm (invisible) versions are also available.
Features include automatic day/night control, adjustable brightness via current tuning, and robust mechanical construction. The included wall mount bracket ensures secure and accurate positioning during installation. Whether used for perimeter protection, traffic surveillance, or commercial security systems, the ALX-SG63-IR delivers reliable and powerful infrared support to modern IP and CCTV cameras.
Key Features:
- 18 high-output IR LEDs with long-range coverage
- Beam angle options from 15° to 230° (per model)
- 850nm or 940nm infrared wavelength models
- IR distance up to 160m (850nm, narrow angle)
- Adjustable brightness and automatic IR switching
- Supports IP and analog security cameras
- IK10 vandal-proof rating and IP66 weatherproof housing
- Professional wall-mount bracket included
- Stable 12V/24V power input with thermal protection
Specifications:
- LED Type: 18 pieces high power IR LED
- Wavelength: 740nm / 850nm / 940nm
- Beam Angle: 15° to 230° (per model)
- Distance: 160m to 15m (850nm)
- Voltage: DC12V / AC24V
- Current: 2.4A / 1.2A (adjustable)
- Switch: Day/night auto
- Operating Temp: -30°C to 50°C
- Housing: Aluminum, vandal-proof
- Panel: PC, impact-resistant
- Weight: N.W. 1.4KG, G.W. 1.72KG
- Packing Dimensions: 320×150×170mm
Model Order Info:
850nm Semi-Covert
ALX-SG63-IR15 15°-45° 160m-100m
ALX-SG63-IR30 30°-90° 120m-70m
ALX-SG63-IR45 45°-150° 80m-50m
ALX-SG63-IR60 60°-180° 40m-27m
ALX-SG63-IR90 90°-200° 32m-20m
ALX-SG63-IR120 120°-230° 24m-15m
940nm Fully Covert
ALX-SG63-9IR15 15°-45° 80m-50m
ALX-SG63-9IR30 30°-90° 60m-35m
ALX-SG63-9IR45 45°-150° 40m-25m
ALX-SG63-9IR60 60°-180° 20m-14m
ALX-SG63-9IR90 90°-200° 16m-10m
ALX-SG63-9IR120 120°-230° 12m-8m
