ACTi B916 2MP IP PTZ Security Camera Speed Dome 20x

  • ACTi B916 PTZ Security Camera 20x 2MP Speed Dome IP67 IK10

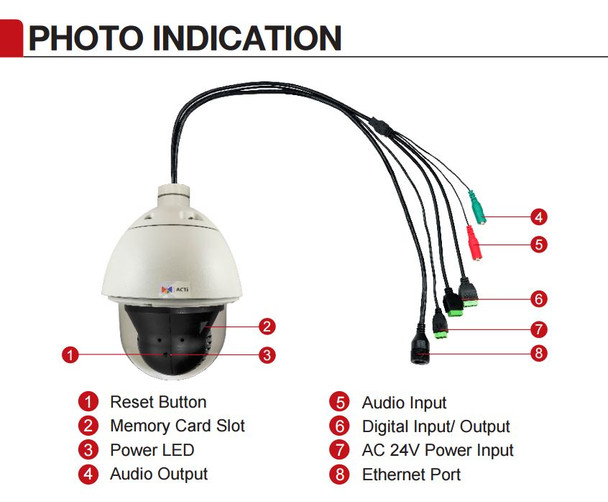

  • ACTi B916 PTZ Security Camera Diagram
  • ACTi B916 PTZ Security Camera pendant mount gang box kit SMAX-0247

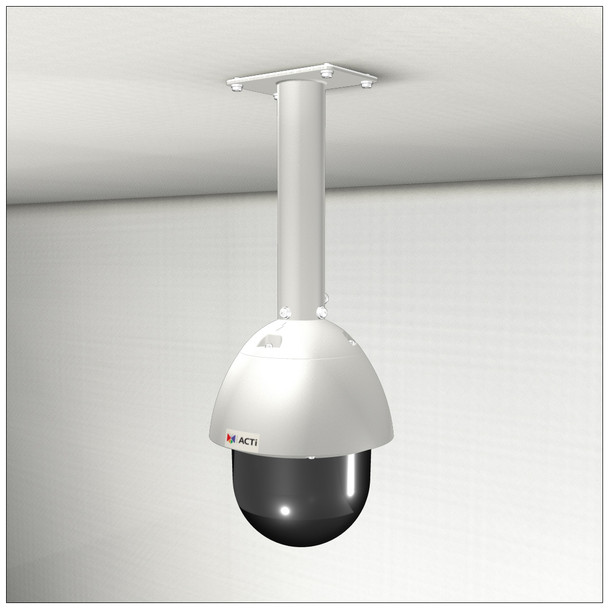

  • ACTi B916 PTZ Security Camera pendant mount kit PMAX-0102
  • ACTi B916 PTZ Security Camera pendant mount NPT adapter PMAX-0808
  • ACTi B916 PTZ Security Camera wall mount gang box SMAX-0244
  • ACTi B916 PTZ Security Camera wall mount PMAX-0312
  • ACTi B916 PTZ Security Camera wall mount arm kit PMAX-0305

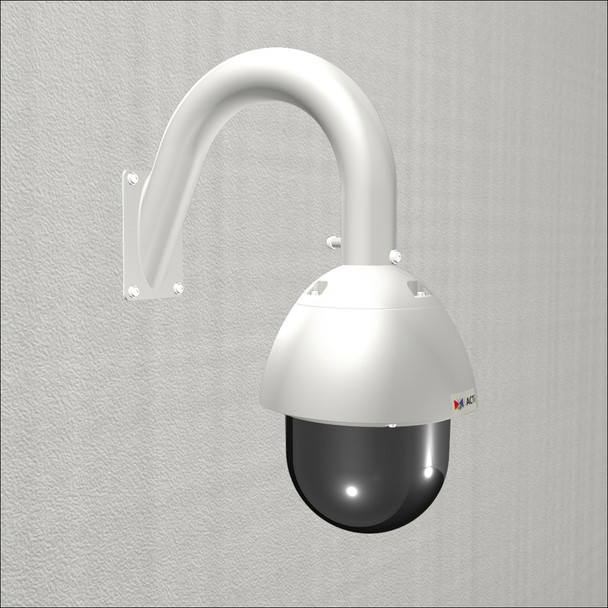

  • ACTi B916 PTZ Security Camera wall mount gooseneck kit PMAX-0303

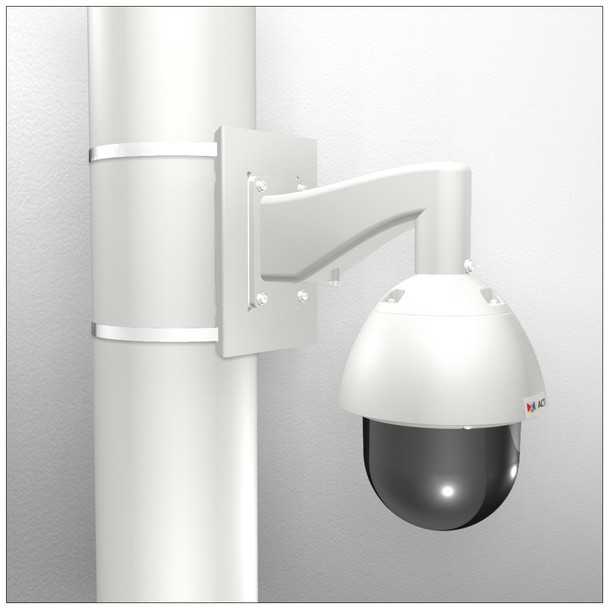

  • ACTi B916 PTZ Security Camera pole mount arm SMAX-0138
  • ACTi B916 PTZ Security Camera pole mount arm for large pole SMAX-0250 or small pole SMAX-0224
  • ACTi B916 PTZ Security Camera pole mount gooseneck SMAX-0104

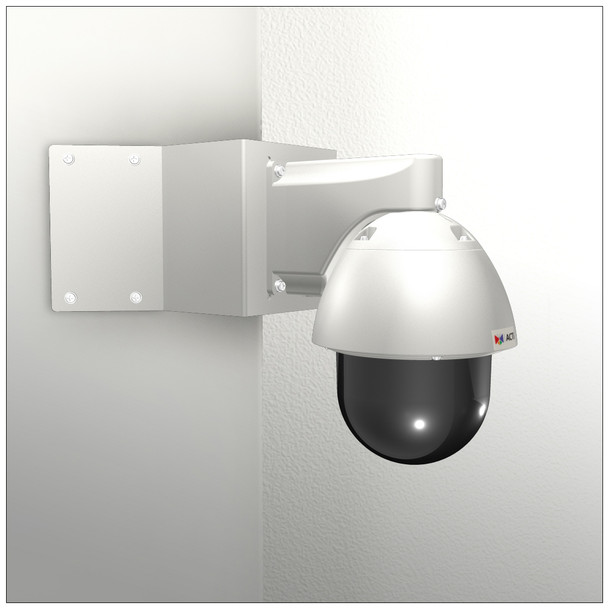

  • ACTi B916 PTZ Security Camera corner bracket wall mount kit SMAX-0225

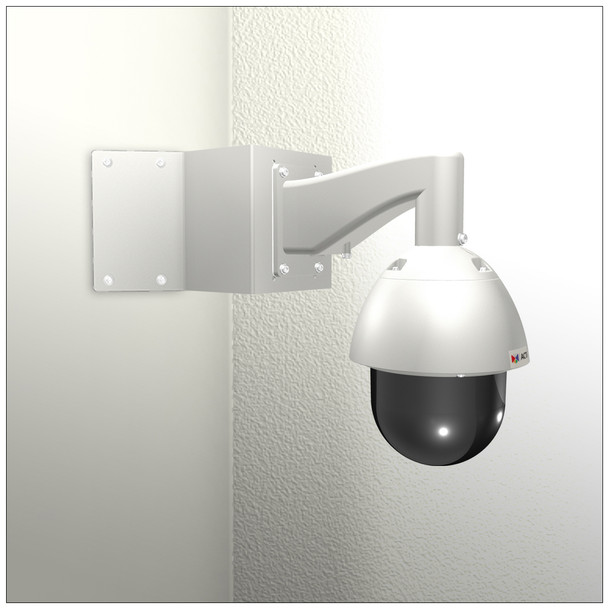

  • ACTi B916 PTZ Security Camera corner bracket wall arm SMAX-0035
  • ACTi B916 PTZ Security Camera corner bracket gooseneck kit SMAX-0009
Calculated at checkout

Product Description

ACTi B916 2MP Speed Dome IP PTZ Security Camera is a powerful new series of Pro Pan/Tilt/Zoom Cameras. The ACTi B916 is feature packed with high quality image performance of full 1080P (2 Megapixel) HD Resolution plus includes a variety of image advancements like Extreme WDR, ACTi SLLS, 3D DNR to Image Stabilization. The unit delivers high frame rates up to 60fps (twice that of real-time 30fps) while also offering multiple codec options such as H.264 and multi-streaming for maximum flexibility. In Fact, the PTZ unit is innovatively designed to incorporate a diverse set of features and functions in practically every regard. Intelligent on-board Video Analytics enable automated detection and even event actions while local Micro SDHC (or SDXC) card slot allow stand-alone surveillance. Even further ONVIF compliance makes for simple 3rd party NVR integration or choose from a wide range of ACTi Software and Hardware solutions, several even free ensuring you'll have an end-to-end security camera system with maximum ease.

Fully loaded, the ACTi B916 2MP 20x Day/Night WDR PTZ IP Camera is an outdoor ready, rugged yet truly smart PTZ system. The 20x optical zoom (also available as 30x with B917) plus precision pan/tilt provide optimal Pan/Tilt/Zoom operation to users. The device is packed with in-depth camera settings to a vast support for IT protocols, event detection to event triggers and notifications. Added hardware is further supported such as Two Way Audio or Digital I/O for alarm sensors and relay outputs. You can achieve wall or pendant style mounting to other types like corner, pole or even parapet mounting via ACTi's large selection of optional adapters and brackets. Flexible 24VAC or High PoE power input also promise easily adapted installations.

ACTi B916 Speed Dome PTZ Camera Main Features:

  • 2 MegaPixel 1/2.8" Progressive Scan CMOS Image Sensor
  • Effective Pixels 1944(H) X 1224(V) (2.38 MP)
  • Superior Low Light Sensitivity (SLLS)
  • Wide Dynamic Range: Extreme WDR (145 dB)
  • Digital Noise Reduction: 2D + 3D DNR
  • Minimum Illumination: Color: 0.1 lux at F1.6 (30 IRE); B/W: 0.05 lux at F1.6 (30 IRE)
  • 20x optical Zoom, Auto Focus, DC Iris, f4.7-94mm (F1.6-F3.5) HFOV: 60.8° - 3.4°
  • 360° endless Pan with extended Tilt Range of -20°~200°
  • Multi-Streaming - triple streams of H.264 (Baseline/ Main/ High profile) or MJPEG
  • Maximum Frame Rate per Resolution: 60 fps at 1920 x 1080 (1080p) or 1280 x 720 (720p), 30 fps at VGA or CIF
  • Image Enhancement: Digital Image Stabilizer, Defogging
  • Privacy Mask: 20 configurable 3D privacy masks
  • Built-in Analytics: Object Based Motion Detection, Tamper, Shock Detection, PTZ Auto Tracking, Line Crossing, Enter Area, Missing Object, Unattended Object, Loitering, Face Detection
  • Two Way Audio: Line-in, Line-out
  • Network Protocol & Services: TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
  • Ethernet Port: 1x RJ-45 connector
  • Alarm/Relay I/O: Digital Input/Output 4/2
  • Local Storage: Micro SDHC, Micro SDXC memory card slot (card not included)
  • Environmental Construction: Weatherproof (IP67), Vandal proof (IK10), Built-in Fan, Heater, Dehumidifier
  • Optional Mounts: Gang box, Pendant, Converter for NPT Standard Mount, Wall Mount, Pole Mount, and Corner Mount
  • Operating Temperature: -52°C ~ 60°C (-61.6°F ~ 140°F) for 24VAC, -40°C ~ 60°C (-40°F ~ 140°F) for High PoE
  • Approvals: CE, FCC, IP67, IK10, NEMA 4X, UL (for bundled power adapter)
  • Warranty: 3 Year(s)* (3 months in continuous motion)
  • ONVIF Compliance for Profile S and Profile G
  • Multiple Web Browser Support: IE 9.0 or newer, Firefox with VLC, Chrome with VLC, Safari with QuickTime
  • Power Source: High PoE (IEEE802.3at) 29.4W / 24VAC 68W (With heater controlled by thermostat)
  • Weight: 2500 g (5.51 lbs.)
  • Dimensions: (Φ x H) 200 mm x 276 mm (7.87" x 10.87")
