A2Z PDN8AV840HI 8MP 4K UHD 40x 450m IR PTZ IP Camera Wiper

Write a Review
SKU:
PDN8AV840HI
Shipping:
Calculated at Checkout
  • A2Z PDN8AV840HI 4K UHD 40x IR PTZ IP Camera with Wiper
  • A2Z PDN8AV840HI 4K UHD 40x IR PTZ (Pan-Tilt-Zoom) Front View
  • A2Z PDN8AV840HI 4K UHD 40x IR PTZ IP Camera Sample Web Interface
  • A2Z PDN8 PDN10 SD8 SD10 series IR PTZ Camera with Wiper Client Mounted

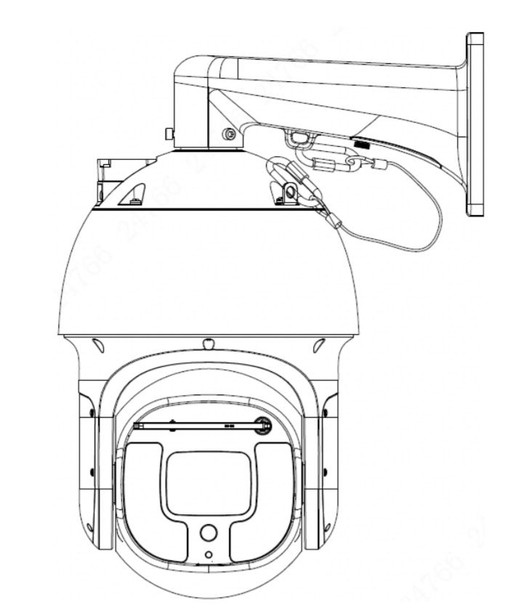

  • A2Z PDN8AV840HI 4K UHD 40x IR PTZ Drawing with Mount
  • A2Z PDN8AV840HI 4K UHD 40x IR PTZ Dimensions
$3,099.00

Description

A2Z PDN8AV840HI 4K 40x Starlight IR PTZ IP Camera is a top of the line Network Pan/Tilt/Zoom security camera offering specifications which boost pre-built PTZs to levels never seen before. This PTZ is a market leading unit that yields full 4K UHD (8mp) resolution in real-time 30fps thanks to its large STARVIS "Starlight" CMOS sensor which also allows it to provide detailed color imaging even in unbelievably low light conditions. It obviously includes cutting edge perks like compression methods such as H.265 while even more notable are its IR night vision abilities that are effective to nearly 1500ft promising absolute imaging at amazing distances even in the poorest lighting or in fact, no lighting at all. Furthermore, don't be mistaken by terms like its "40x" optical zoom, the telephoto focal measurement is what counts and this unit zoom lens’s telephoto focal range of up to 223mm dwarfs many other PTZ cameras which might seem to have a similar "optical zoom" at a glance. All of this and plenty more is finely integrated into a very intelligent Pan/Tilt/Zoom Camera system ready for harsh outdoor environments, plus for either stand-alone operation or as part of a greater IP Camera system including third party security systems. Not exactly a low-cost camera but compared to other top brand PTZs in its cost range it doesn't struggle to outperform them.

Main Features:

  • 1/1.8” 8 Megapixel STARVIS™ CMOS Image Sensor
  • Powerful 40x optical zoom
  • Starlight technology for Ultra Low Light Color & B/W
  • Real-time 30fps @ 4K UHD (3840 x 2160p)
  • Supports: 24VAC or Hi-PoE
  • Smart wiper for manual and automated cleaning
  • Video Analytics
  • Superior IR Night Vision distance up to 450m or Approx. 1,476ft
  • Up to 256 GB Micro SD Storage
  • Weatherproof IP67 Rated

Exceptional Performance:
The PDN8AV840HI 4K UHD IR PTZ IP Camera defines the next generation in sophisticated IP Surveillance Systems. As mentioned, it is equipped with a large format 1/1.8" Starvis series image sensor that grants outstanding Ultra High Definition 4K video (3840 x 2160 pixels or 8MP) in real-time 30fps. The Starvis Image sensor further benefits the PTZ system with incredibly low light performance including Color imaging in 0.002 Lux. In addition to its low light, and no light abilities (when using its superb Infrared night vision) the device is also optimized with a range of image enhancements such as Ultra DNR 2D+3D to 120dB rated WDR and more. The unit includes Electronic Image Stabilization (EIS) to Optical Defog not to mention in-depth image adjustments and beyond to all help ensure absolute clarity. Triple Streaming including sub-streams up to D1 and 1080p resolution combine with the latest compression methods like H.265 or H.264 for superior bandwidth efficiency. Other aspects like its 40x optical zoom which features a lens of a 5.6mm to 223mm focal range for truly long-range zoom. Add in its built-in wiper as just another amazing convenience once reserved solely for legacy pan/tilt/zoom systems. In Fact, its wiper can even automatically operate with the detection of rain!

Super Smart Super Adaptable:
The A2Z PDN8AV840HI 4K IR PTZ IP Camera simply keeps delivering and when it comes to intelligent detection methods including video analytics it is equipped with functions like Face Detection, Tripwire, Intrusion, Abandoned/Missing Objects and supports Heat Map. All of this along with other in-depth features like scheduling, on-board storage of up to 256GB via Micro SD, live view, search, playback and export in its well-developed web interface enabling not only stand-alone security solutions but optimized camera systems where detection can occur at the edge. What’s more this device supports a vast more array of capabilities such as Audio and I/O Alarm/Relay connections. Plentiful alarm I/O connections with good versatility of alarm/relay I/O control and actions to audio I/O with connections for external microphones and speakers as well as a nice selection of Audio codecs like AAC, MPEG2 and multiple G.7xx types. Over Twenty IT protocols are incorporated allowing everything from RTSP streaming to SSL, UPnP, and of course ONVIF S and G for universal IP camera system integration.

Pro Pan-Tilt-Zoom Features:
The A2Z PDN8AV840HI 4K PTZ Security Camera is an ultra-professional Pan/Tilt/Zoom unit allowing endless 360-degree rotation and allows an extended -30-degree tilt above the horizon. The Pan/Tilts high speed movement rivals’ others as well as does its on-board memory for preset positions, patterns, guard tours and so on. This IP PTZ security camera also support RS-485 for use with legacy style PTZ controllers plus features a BNC output for other legacy video system needs. Auto-tracking, is just another one of its countless perks.

Flexible Installation and Integration:
The unit allows flexible power input including the typical 24VAC or support HI-PoE which is a passive Power over Ethernet solution. Supplied with a wall mount this professional security camera also of course can utilize a diverse selection of mounting adapters to achieve anything from pole mounting to pendant mounting and more. Absolutely weatherproof with an IP67 rating the unit is also ready for the harshest outdoor conditions including extreme temperatures from -40°F ~ 158°F. If you’re looking for a high performing PTZ with the best specifications for the price, this is undoubtedly one of the top choices.

More Specifications:

Camera:

1/1.8” STARVIS™ Low Light CMOS Image Sensor
Effective Pixels: 3840(H) x 2160(V), 4K UHD or 8 Megapixels
Progressive Scanning System
Electronic Shutter Speed: 1/1s~1/30,000s
Minimum Illumination:
Color: 0.002 Lux @F1.4; B/W: 0.0002 Lux @F1.4; 0 Lux @F1.4 (IR on)
IR Distance: Distance up to 450m (1476ft)
IR Controls: On/Off Control, Auto or Manual
High Powered IR Night Vision LEDs: 10
Integrated Smart Wiper: Automatic and Manual Use
Lens: Optical Zoom 40x w/Focal Length 5.6mm~223mm, Max. Aperture F1.4~ F4.8
Field of View (FOV): H: 63.9° ~ 2.0°; V: 37.3° ~ 1.1°; D: 71.2° ~ 2.3°
Focus Control: Auto & Manual
Iris Control: Auto and Manual
Close Focus Distance: 100mm~ 1000mm

DORI Distance Ratings:
Detect
4400m(14435ft)
Observe
1740m(5708ft)
Recognize
880m(2887ft)
Identify
440m(1443ft)

PTZ:
Pan/Tilt Range: Pan: 0° ~ 360° endless; Tilt: -30° ~ 90°, auto flip 180°
Manual Control Speed: Pan: 0.1° ~240° /s; Tilt: 0.1° ~100° /s
Preset Speed: Pan: 240° /s; Tilt: 120° /s
Number of Max Presets: 300
PTZ Modes: 5 Pattern, 8 Tour (up to 32 preset per tour), Auto Pan, 5 Auto Scan
Speed Setup: Human-oriented focal Length/speed adaptation
Power up Action: Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate: Preset, Scan, Tour, or Pattern if there is no command in the specified period
PTZ Protocols: DH-SD, Pelco-P/D (Auto recognition)

Intelligence & Event Triggers:
Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly
Supports Auto Tracking
IVS (Video Analytics) Tripwire, Intrusion, Abandoned/Missing
Advanced Intelligent Functions: Face Detection, Heat Map

Video
Compressions: H.265+, H.265, H.264+, H.264 | Plus MJPEG for Sub Streams
Triple Streaming Capability: 3 Individual Video Streams
Resolution:
4K(3840x2160)/1080P(1920×1080)/1.3M(1280x960)/ 720P (1280×720) / D1(704×576 / 704×480)/
CIF (352×288/352×240)
Frame Rate
Main stream: 4K UHD (1~25/30fps), 1080P HD / 1.3MP / 720P HD (1~25/30fps)
Sub stream1: D1 / CIF (1 ~ 25/30fps)
Sub stream2: 1080P HD / 1.3MP / 720P HD (1 ~ 25/30fps)
Bit Rate Controls: CBR & VBR
Bit Rate H.265/H.264: 512K ~ 8192Kbps Adjustable
Day/Night Modes: Auto (ICR) / Color / B/W
Backlight Compensation:
BLC / HLC / WDR (Wide Dynamic Range rated to 120dB)
White Balance Settings: Auto, ATW, Indoor, Outdoor, Manual
Gain Controls: Auto / Manual
Noise Reduction: Ultra DNR (2D/3D)
Region of Interest
Features Electronic Image Stabilization (EIS)
Supports Optical Defog
Supports Digital Zoom 16x & Flip 180°
Privacy Masking: Up to 24 areas

Audio
Compressions: G.711a, G.711mu, PCM, G.726, AAC, G722.1, G.729 and MPEG2-Layer2

Network
IT Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, RTCP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour,802.1x
Interoperability: ONVIF Profile S&G, API
Streaming Methods: Unicast & Multicast
Max. User Access: 20 users
Storage Options (EDGE and LAN)
NAS (Network Attached Storage), Local PC for instant recording, Micro SD card up to 256GB
Web Browser Support: IE, Chrome, Firefox, Safari (Some browsers not all versions)
FREE Management Software: PC and MAC support
FREE Mobile Apps for Smart Phones and Tablets: IOS or Android OS

Certifications
CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpart B, ANSI C63.4- 2014
UL: UL60950-1+CAN/CSA C22.2, No.60950-1

Connection Interfaces
RJ-45 (10Base-T/100Base-TX)
Video Interface: 1 port (BNC, 1.0V[p-p], 75Ω)
RS485: 1
Audio I/O: 1/1
Alarm I/O: 7/2

Electrical Power Details:
Power Supply: 24v AC 3 amp (±25%), Hi-PoE
Power Consumption: 26W, 38W (IR on, Heater on)

Environmental/Physical:
Operating Conditions: -40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH
Ingress Protection: IP67 Rugged Outdoor Weatherproof Rated
Construction: Metal Casing
Dimensions: Φ262mm x 415.6mm
Weight: 8.5kg or 18.74 lbs.
Weight: 14.3kg or 31.53 lbs.

Last Updated: March 1st, 2020
