A2Z PDN59U430HI 4MP 30x 100m IR PTZ IP Camera H265

  • A2Z PDN59U430HI 4MP 30x 100m IR PTZ IP Camera with goose-neck wall mount
  • A2Z PDN59U430HI 4MP IR PTZ IP Camera below
  • A2Z PDN59U430HI 4MP IR PTZ Pan-Tilt-Zoom

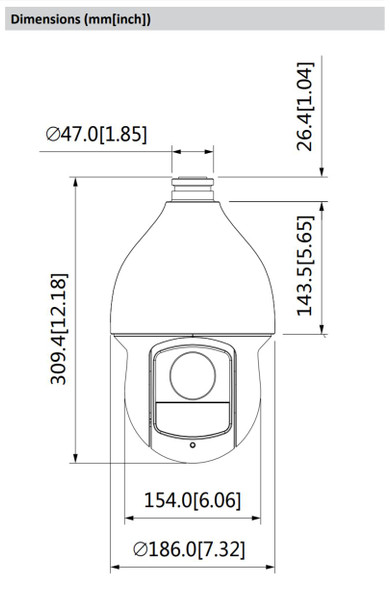

  • A2Z PDN59U430HI 4MP IR PTZ Dimensions
  • A2Z PDN59U430HI IR PTZ IP Camera Example Optional Mounting
Calculated at checkout

Product Description

A2Z OEM PDN59U430HI 4MP 30x IR PTZ IP Camera is a pro-grade surveillance system solution balancing maximum performance with cost effectiveness. Delivering real-time 30fps at up to 4 Megapixel or 3 Megapixel Resolution and up to 60fps for 1080P stream settings. Triple streaming including H.265 video compression to multiple Audio compressions like AAC for Two Way Audio and this PTZ quickly boast a wide array of benefits. Take the superior low light performance of Color video in as little as 0.05 Lux at F1.6 or of course 0 Lux imaging in B/W thanks to its 100-meter Auto-adjusting IR LED illumination. There is even more by far, with everything from video analytics like Auto-Tracking to a 120dB Wide Dynamic Range promise best in-class IP video surveillance in all sorts of systems scenarios and environments. Speaking of environments, the unit also has an IP66 weatherproof design with wide operating temperature range rivaling what was once only available on the highest grade PTZ systems. Even more there is not just the typical 24VAC power input but also the PoE+ compliant power option which allows the easiest installation you could desire with just a single network cable like CAT5 or CAT6.

A2Z PDN59U430HI Main Features:

  • Superior 1/3” 4 Megapixel CMOS Image Sensor
  • 30x optical zoom 4.5 ~ 135mm w/HFOV H: 60° ~ 2.2°
  • H.265+, H.265, H.264+ and H.264 Compression with Triple-streaming
  • Real-time at up to 4MP or 60fps at 1080P resolution
  • 120dB WDR, Day/Night (ICR), Ultra DNR, Auto iris, Auto focus
  • Smart IR Illumination up to 100 meters or 328 feet
  • Numerous Modern functions: ROI, EIS (Image Stabilization), Defog, Privacy Masking
  • Video Analytics (IVS) Auto-Tracking, Tripwire, Intrusion, Face, Detection, Heat Map, etc.
  • Remote Monitoring: Web Interface, FREE CMS Client/PC-NVR and Free Mobile Apps
  • Easy Integration: HTTPS, SSL, UPnP, RTSP, DDNS, FTP, QoS, ONVIF S/G and more
  • Fast 400°/s pan speed w/Presets, 360° endless pan rotation w/precise PTZ movement
  • Above the Horizon Tilt: -15° ~ 90°
  • Up to 300 presets, 5 auto scan, 8 tour, 5 patterns
  • Built-in 2/1 alarm I/O interface
  • Two Way Audio I/O Support
  • Audio Codecs G.711a, G.711Mu, AAC, G.722, G.726, G.729, MPEG2-L2
  • Support intelligent 3D positioning with DH-SD protocol
  • Micro SD Card Slot for up to 256GB cards
  • Weatherproof IP66 Outdoor Ready
  • Operating Temperature: -40°F ~ +158°F (-40ºC ~ 70ºC) / Less than 90% RH
  • Dimensions: Φ186mm x 309mm or Φ7.32" x 12.16"
  • Weight: 3.9kg or 8.60 lbs.
  • Power Input: 24VAC or POE+ 802.3at

Superior HD video!
A2Z PDN59U430HI 4 MegaPixel 30x IR PTZ IP Security Camera provides technically more thank 2K and closer to 3K High Definition video standards with 2592 x 1520 pixels in full resolution. Further it allows that "super" HD in real-time 30fps. Yet you should remember, resolution isn't everything. These PTZ units prove that with other benefits such as 60fps (twice real-time frame rates) at up to 1080p HD resolution which allows for exceptionally smoother video, especially of faster moving targets and perceivable better-quality video compared to the same HD video at 30fps thanks to that factor. The 4MP IR PTZ IP Camera further provides cutting-edge compression methods like H.265 and H.264 for video while also offering a wide range of Audio codecs such as AAC, G.711, G.726, G.729 and more allowing comprehensive surveillance systems and otherwise. Triple Streaming, in-depth Image and video adjustments as well as attributes like 120dB WDR (Wide Dynamic Range) help achieve stunning video quality. The low light color video at 0.05 Lux or in B/W at 0.005 Lux also plays a significant role in clear around the clock video coverage. Furthermore, an integrated auto-adjusting IR that proportionally steps according to zoom grants up to 100m effective IR illumination for absolute video security in complete darkness.

On-board Intelligence and Pro Functions:
A2Z PDN59U430HI 4MP IR IP PTZ grants numerous on-board advancements that rival top tier models from any brand. The device first off is provided with a full function web browser interface allowing live viewing, ptz plus other controls, has multiple event detection methods, supports schedules and with up to a 256GB Micro SD card support, the unit can offer search, playback and export of your camera's video recordings. That well design Web Browser interface provides easy navigation for menus that allow a deep level of configurations including the use of IVS (Intelligent Video Analytics) and other popular desires like Auto-Tracking. Need more? The unit has a vast range of supported IT protocols like HTTPs, QoS, UPnP, FTP, SSL, RTSP just to name a few. Other advantages include Free Mobile Apps and Free CMS PC or MAC software for complete management including recording of multiples of cameras and/or recorders.

Excellent Installation Adaptability:
The unit out of the box includes a standard gooseneck Wall Mount bracket but also including an NPT 1 1/2" pipe-thread adapter allowing customized mounting via parts at your local hardware store. There are a variety of accessories for mounting to poles, parapet, and ceiling and otherwise also available for truly professional installation and appearance. The unit like most Pro Pan, Tilt & Zoom cameras gives exceptional Pan/Tilt/Zoom abilities, but now not only can all this be run by the common 24VAC power input but this PTZ also supports PoE+ (IEEE 802.3at) compliant Power over Ethernet, perfect for super easy, single cable install in today's modern network IP security systems.

Compare A2Z PDN59U430HI PTZ to its Cross-Over OEM Dahua Branded SD59430UN-HNI or 59430UNI version
