Description

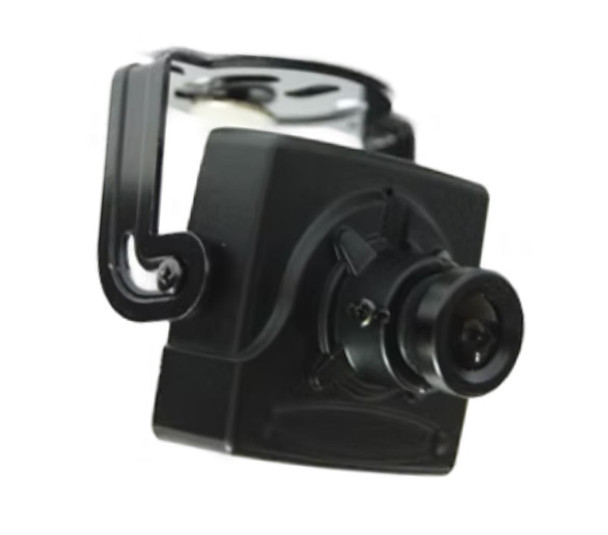

Engineered for ultra-compact precision surveillance, the AZMSFB-1L81D by A2Z is an 8MP (4K) UHD security camera using the Sony STARVIS IMX515 CMOS and EYENIX EN781 ISP. It delivers up to 3840 x 2160 (4K) resolution at 15fps with switchable downscale options.
Designed for covert and embedded security environments, its board lens and 36mm aluminum body provide low-profile, high-impact coverage. It supports AHD, TVI, CVI, and CVBS as standard formats, with optional EX-SDI output for broader video system flexibility.
This model includes intelligent video features such as motion detection, defog, shading, OSD menu, privacy zones, and image flip. Made in Korea, it delivers powerful resolution and superb craftmanship in a truly mini form.
Key Features
- 8MP Ultra HD 3840x2160 @ 15fps
- 1/2.8” Sony STARVIS CMOS (IMX515)
- Downscale Mode: 1440P / 1080P
- Outputs: AHD / TVI / CVI / CVBS (EX-SDI optional)
- Wide Dynamic Range + Defog
- Motion Detection, Shading, Flip
- 3.6mm Fixed Board Lens
- Compact Form – 36mm Housing
- DC12V Powered
- NDAA and TAA Compliant
- Made in Korea
Specifications Summary
Video & Display
Sensor: 1/2.8" 8.40MP Sony STARVIS CMOS
Max Resolution: 3840x2160 (8MP)
Frame Rate: 15fps
Output: AHD / TVI / CVI / CVBS (EX-SDI optional)
Downscale Modes: 1440P / 1080P
Min. Illumination: 0.12 Lux (Color), 0.012 Lux (B/W)
Recording & Playback
Motion Detection: 24 Zone
OSD Menu: Built-in
Shading / DNR / WDR / Flip: Yes
Shutter: 1/30 ~ 1/30,000 (NTSC)
Power, Environmental, Mechanical
Power: DC12V ±10%
Consumption: 180mA
Temp Range: -10°C ~ +50°C

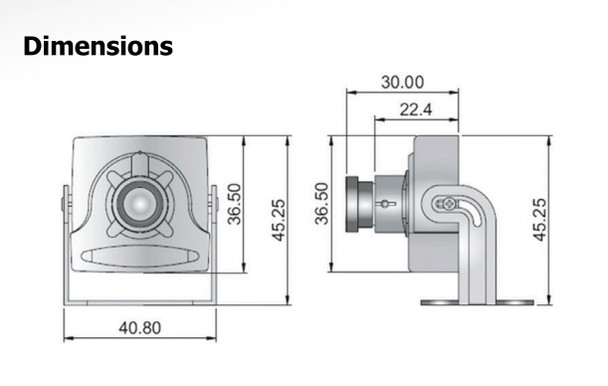

Dimensions: 36mm x 36mm
Weight: 0.15kg
