A2Z PDN6AU245HLI 45x 2MP 300m Laser IR PTZ IP Security Camera

Write a Review
Calculated at Checkout
  • A2Z PDN6AU245HLI 45x 2MP Laser IR PTZ IP Camera Wiper Pendant Only
  • A2Z PDN6AU245HLI 45x 2MP Laser Infrared Night Vision PTZ below view
  • A2Z PDN6AU245HLI 45x 1080p Laser IR IP PTZ with Wall Mount Included
  • A2Z PDN6AU245HLI Laser IR PTZ shown example optional pole mount accessory

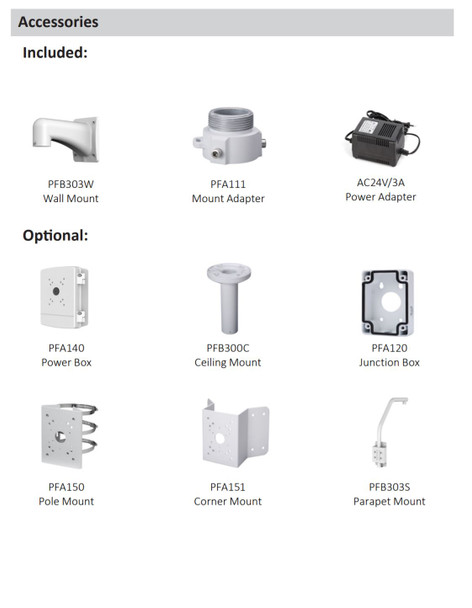

  • A2Z PDN6AU245HLI PTZ Mounting Accessories

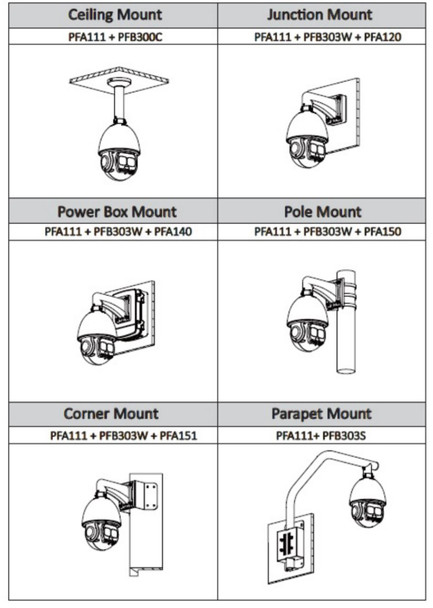

  • A2Z PDN6AU245HLI Laser PTZ Mounting Accessories Example Drawings
  • A2Z PDN6AU245HLI PTZ Measurements
  • A2Z PDN6AU245HLI PTZ Cables


A2Z PDN6AU245HLI 45x Network Laser IR PTZ Security Camera is an ultra-low light, long-range Pan/Tilt/Zoom packed with excellent performance and cutting-edge surveillance features for a competitive price. The unit offers up to 60fps at full 1080p HD Video, multi-streaming and of course video compression options like the latest H.265 video codec. Alongside its Starlight sensor's low light benefits it also grants wide dynamic range (WDR) to overcome the most challenging lighting scenes. In-depth advancements of modern video security are realized with this PTZ model thanks to perks like an effective IR night vision range rated at just over 980ft to a rugged IK10 outdoor construction and superior IP67 weatherproof casing ensure you stunning results that last.

PDN6AU245HLI Main Features:

  • 1/2.8” 2 Megapixel STARVIS™ CMOS
  • Long Range 45x optical zoom
  • Starlight technology Super Low Light Video
  • Twice Real-time Speeds at up to 60fps @ 1080P HD
  • Auto-tracking and IVS (Video Analytics)
  • IR distance up to 300m or 984ft
  • AC24V/3A (±25%) OR Hi-PoE
  • Superior Weatherproof Rating of IP67
  • Vandal Proof, High Impact Rated IK10
  • Micro SD Card Slot for up to 256GB

Superior Video / Audio Surveillance:
The PDN6CEU245 45x IR PTZ Cameras provide multi-streaming including a wide array of open protocol formats such as RTSP or ONVIF for easy integration with 3rd party systems including surveillance and otherwise. Multiple streams of H264 or H265 video compression including frame rates up to 60fps with full 2mP or 1080P HD are at your command. Furthermore, you can also easily pair it with quality audio (via A2Z microphone, sold separately) and make use of compression methods like AAC for comprehensive situational awareness and more. Add that with powerful 45x optical zoom and ultra-low light often dubbed "Starlight" abilities including full color video in as little as 0.005 Lux and you’re sure to be satisfied.

Complete Security and Intelligence:
This Pan/tilt/Zoom IP Camera is the perfect choice for a cost effective PTZ with maximum performance and attributes. The unit alone can provide full function surveillance including live view, search, playback and export (w/SD CARD installed*) through a cleanly built, user friendly web interface or otherwise be part of a larger security system deployment. The device grants all the common PTZ features such as preset positions, high speed precision movements and more. This PTZ design is simply smart, whereas similar to its full menu of functions and settings for PTZ, Video, Imaging etc. in independent easily navigated menu categories, this unit also offers a rich set of Video Analytics on-board including supporting operations like Auto-Tracking, Time Task, Intrusion, Tripwire, Face Detection and Heat Maps.

Adaptive Installation:
This OEM PTZ security camera is built to adapt to all types of applications in the widest range of environmental conditions. The unit includes not just superior IP67 grade weatherproofing but also allows reliable operations in extreme cold to extreme heat. Included with a standard wall mount, there are 1.5" standard Pipe thread mount adapters, pole mounts, ceiling mounts as well as other accessories available to assure a professional install and appearance. The PTZ accepts 24V AC like most PRO PTZs but also allows you to utilize Hi-PoE (a passive type of Power over Ethernet) for clean, easy single cable installation.

More Specifications:

  • 1/2.8" 2MP 1080P STARVIS Sensor (1920 x 1080 pixels)
  • Long Range 45x PTZ w/3.95mm~177.7mm Telephoto, Auto-Focus Zoom Lens
  • Starlight Color: 0.005 Lux @F1.6; B/W: 0.0005 Lux @F1.6; 0Lux@F1.6 (IR on)
  • Awesome 300 meter or 980ft+ Infrared (IR) Laser Illumination for the best night vision
  • H.265+, H.265, H.264+, H.264 and MJPEG Triple Stream Video Encoding
  • 1080P HD at up to 60fps, Twice the speed of Real-time Main Stream - Sub-Stream up to D1 30fps and Sub-Stream 2 up to 1080p 30fps
  • Defog, True WDR 120dB, EIS (image stabilization), ROI, Day/Night (ICR), Ultra DNR (2D&3D), Auto iris, Auto focus, AWB, AGC, BLC
  • Easy Integration: HTTPS, SSL, UPnP, RTSP, DDNS, FTP, QoS, ONVIF and more
  • Auto-tracking and IVS Video Analytics like Tripwire, Intrusion, Cross Zone, Perimeter, etc.
  • Monitoring: Web Interface, FREE CMS Software & PC-NVR & FREE Mobile App
  • Quick 240°/s pan speed, 360° endless pan rotation and precise Pan/Tilt/Zoom
  • Up to 300 presets, auto scan and auto pan, 8 tours, 5 patterns
  • Two-Way audio Mic Line input/Speaker Line Output
  • Diverse Audio Codec Selection G.711a, G.711mu, PCM, G.726, AAC, G722.1, G.729, MPEG2-Layer2
  • Built-in 7/2 alarm in/out, 1 RS-485 Connection and 1 BNC 75ohm SD Composite video output
  • Support intelligent 3D positioning with DH-SD protocol or Pelco D/Pelco P Protocols
  • Micro SD Card Slot for local storage up to 256GB
  • Operating Range: -40°F ~ +158°F (-40ºC ~ 70ºC) / Less than 90% RH
  • Weatherproof IP67 Outdoor rated - All Metal Construction with Integrated Wiper
  • Dimensions: Φ240mm x 357mm or Φ9.44" x 14.05"
  • Weight 6.75kg or 14.88 lbs.
  • Power: 24VAC or Hi-POE - 38 Watt Max

Compare PDN6CEU245HI to Dahua SD6AL245U-HNI
