A2Z PDN59U230H 2MP Starlight 30x 150m IR PTZ IP Camera 60fps Auto Tracking

  • A2Z PDN59U230H 2MP Starlight 30x 150m 60fps IR PTZ IP Camera

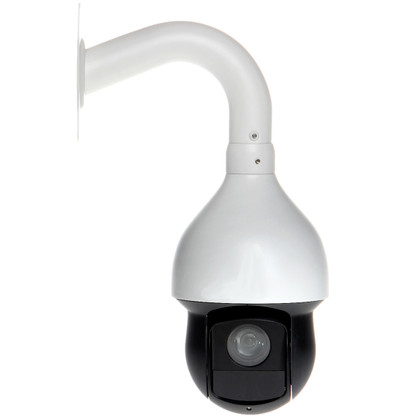

  • A2Z PDN59U230H 2MP Starlight 30x IR PTZ IP Camera includes Wall Mount
  • A2Z PDN59U230H IR PTZ Example Drawing Wall Mount

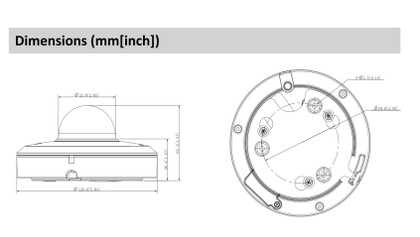

  • A2Z PDN59U230H IR PTZ IP Camera Dimensions
  • A2Z PDN59U230H IR PTZ IP Camera Accessories
  • A2Z PDN59U230H IR PTZ IP Camera Example Mounting with added Optional Accessories
Calculated at checkout

Product Description

A2Z PDN59U230H 30x 2MP Starlight IR PTZ Security Camera is the latest version of our popular five nine series that offers cutting edge performance at affordable pricing. This Pan/Tilt/Zoom unit grants full 1080p HD video (2MP) at up to 60fps as well as gives the preferred H.264 and H.265 compression methods along with multi-streaming and universal compliance with ONVIF support. Featuring Sony's Starvis Starlight CMOS image sensor the device allows ultra-low light imaging including in color mode. Added benefits like its Integrated 150m IR Illuminator ensures these more modern PTZ designs provide absolute night vision a truly superior advantage when compared to the traditional PTZ dome. That's not all, fully professional the unit features enhanced on-board intelligence such as Auto-Tracking and other popular Video Analytics that tied together with its clean user interface provides complete functionality of a surveillance system in a single camera. That includes recording when making use of its Micro SD Card slot supporting up to 256GB cards. Outdoor ready this PTZ camera is packaged with a wall mount and power supply, but many optional mounting accessories are available and install can be further simplified by using PoE+ for a single network cable install.

Main Features:

  • 1/2.8” 2 Megapixel STARVIS CMOS
  • High Frame Rates of Max. 60fps @ 1080P
  • Powerful 30x optical zoom
  • IR distance up to 150m
  • Starlight technology Ultra Low Light Color & B/W
  • True WDR, Image Stabilization
  • H.265 Encoding
  • Auto-tracking and IVS
  • Micro SD Card Support 128gb
  • Support PoE+ and 24VAC Power Input
  • Weatherproof IP66 Outdoor Ready
  • Includes Wall Mount and AC Power Supply

Superior Video and Audio Surveillance:
The PDN59U230H is a pro-grade Pan/Tilt/Zoom IP Camera system that surely provides vivid HD video in all sorts of challenging lighting conditions. So, remember it’s not only about resolutions but also how well a security camera can handle adverse lighting and this camera absolutely specializes in low light conditions with color video in as little as 0.005 Lux. Other perks like its 120dB WDR (Wide Dynamic Range) promise clear sight through scenes lit with complex contrast while Ultra DNR, Defog and even Digital Image Stabilization allow combine to help adapt to all sorts of needs. Its 2MP or Full 1080p, over real-time 60fps, H.264 and H265 are likewise matched with flexible, similarly rich Audio capabilities. You can optionally add a Microphone and/or Speakers for Two Way Communications (sold separately). You'll find support for externally powered as well as plug-in style Mics similar to a PC mic and there are numerous professional audio codecs to choose from including AAC, G.711Mu, G.711a, MPEG2-L2 and more to choose from along with other adjustments.

Truly Intelligent:
The PDN59U230H IR PTZ IP Camera grants numerous security system capabilities just like those and sometimes better than you will find in the most expensive pre-built PTZs. Aside from a great web browser user interface, its free mobile apps and PC as well as MAC software ensure total flexibility for your operational demands. On-board the PTZ camera has an in-depth menu allowing all sorts of configurations and smart functions in all categories. There is a section where "smart plans" allow building a variety of user selected video analytics be it face detection, intrusion, tripwire or Auto-Tracking to setup automated actions for all kinds of security system needs. There are numerous more aspects which can be tied in as well such as all kinds of PTZ functions on-top of the typical Presets, Tours and Patterns common to any professional PTZ. More attributes like Alarm I/O, email and sms notifications are all at your fingertips making it very hard to not be totally satisfied with this security camera.

Outdoor Ready, Adaptable and Easy to Install:
The unit is ready for your indoor or outdoor surveillance needs. Featuring an IP66 weatherproof rating and extended operating temperature range allows this camera to perform even in the harsh environments. As aforementioned the unit is provided with and utilizes a 24VAC power source like most pro PTZ systems, however its PoE+ single network cable installation when using PoE+ capable switches or injectors can really make things easy for you. Likewise, it includes a wall mount and adapter for standard 1 1/2" pipe thread meaning even local parts from your hardware store could be used to adapt to various install methods and there are many optional accessories for pole mounting to ceiling mounting and beyond. From affordable Linux recorders to third party IP Camera systems, stand-alone operations to even non-security objectives make this unit a solid choice for excellent results.


  • HD Image Sensor: 1/2.8" Starvis CMOS
  • Image Size: 1920(H) x 1080(V), 2 Megapixels
  • RAM/ROM 512M/128M
  • Electronic Shutter: 1/1s~1/30,000s
  • Minimum Illumination: Color: 0.005 Lux @F1.6; B/W: 0.0005 Lux @F1.6, 0 Lux @F1.6 (IR on)
  • S/N Ratio: > 55dB
  • Day / Night Auto (ICR) / Color / B/W
  • BLC Mode: BLC / HLC / WDR (120dB)
  • White Balance: Auto, ATW, Indoor, Outdoor, Manual
  • Gain Control: Auto / Manual
  • Digital Noise Reduction Ultra DNR (2D/3D)
  • Privacy Masking: Up to 24 areas
  • Optical Zoom: 30x / Digital Zoom:16x
  • Electronic Image Stabilization (EIS): Support
  • Defog: Support
  • Wide Dynamic Range: True WDR 120dB
  • 30x Optical Zoom Focal Length: 4.5mm~135mm Max. Aperture: F1.6~ F4.4
  • Focus Control: Auto / Manual
  • HFOV Horizontal Field of View: 67.8° ~ 2.4°
  • Close Focus Range: 100mm~ 1000mm
  • 4 High Powered IR LEDs
  • IR Night Vision Effective Distance up to 150m (492ft)
  • IR Illumination Control On/Off Control, Auto/Manual
  • Pan Range Pan: 0° ~ 360° endless; auto flip 180°
  • Pan Speed Pan: 0.1° ~300° /s
  • Tilt Range Tilt: -15° ~ 90°
  • Tilt Speed Tilt: 0.1° ~200° /s
  • Preset Position supported: 300
  • PTZ Mode: 5 Pattern, 8 Tour, Auto Pan, Auto Scan
  • Intelligent Human-oriented focal Length and speed adaptation
  • Power Up Action Auto restore to previous PTZ and lens status after power loss
  • Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
  • Video Compression: H.265, H.264, MJPEG
  • Video Resolution:
  • 1080P or 2MP (1920×1080)/ 1.3M(1280×960)/ 720P (1280× 720)/ D1(704×576/704×480)/ CIF (352×288/352×240)
  • Video Frame Rate Per Stream:
  • Main stream: 1080P/720P(1~50/60fps), 1.3M(1~25/30fps)
  • Sub stream1: D1/CIF (1 ~ 25/30fps)
  • Sub stream2: 1080P/1.3M/720P/D1/CIF (1~25/30fps)
  • Video Bitrate: H.265/H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps
  • Smart Tracking: Support RS485: 1
  • AI Perimeter Protection Tripwire, Intrusion, Abandoned/Missing, Face Detection
  • Audio Compressions: G.711a / G.711Mu / AAC / G.722 / G.726 / G.729 / MPEG2-L2
  • Audio I/O: 1/1
  • Support IPC Alarm: Yes
  • Alarm I/O: 2
  • Ethernet Connector: RJ-45 (10XBase-T/100Base-TX)
  • Network IT Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
  • Network Interoperability: ONVIF, PSIA, CGI
  • Streaming Methods: Unicast / Multicast
  • Network Max. Users: 20 users
  • Storage NAS (Network Attached Storage), Local PC for instant recording
  • Storage Card: Micro SD card up to 128GB
  • Web Browser: IE, Chrome, Firefox, Safari
  • FREE Management Software: PC and MAC
  • FREE Mobile APP: iPhone, iPad, Android, Windows Phone
  • Certifications CE: EN55032/EN55024/EN50130-4
  • FCC: Part15 subpart, ANSI C63.4- 2014
  • UL: UL60950-1+CAN/CSA C22.2, No.60950-1
  • Power Supply: AC24V 3A (±25%), PoE+(802.3at)
  • Power Consumption: 13W, 23W (IR on)
  • Operating Temperature: -40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH
  • Weatherproof Rating: IP66
  • Dimensions: Φ186.0mm × 309.0mm or Φ7.32" x 12.16"
  • Weight: 8.60 lbs. (Pendant Camera only)

Compare the A2Z PDN59U230H to OEM Dahua Branded version SD59230U-HNI
