Messoa SCB267-HN5 WDR Day/Night Security Camera 700TVL

  • Messoa SCB267-HN5 WDR Day/Night Security Camera 700TVL
  • Messoa SCB267-HN5 Box camera key features

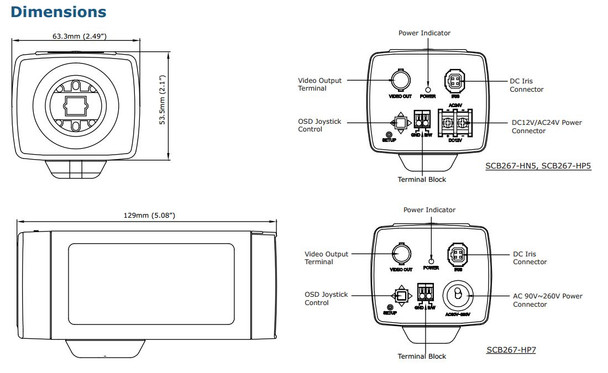

  • Messoa SCB267-HN5 box camera dimensions
Calculated at checkout

Product Description

Messoa SCB267-HN5 Box Style Security Camera is a best in class 700TVL ultra high resolution CCTV Surveillance Camera. The Messoa SCB267-HN5 Box Security Camera is built with the latest Sony 1/3" EXview HAD CCD II for superior resolution and image clarity. The Camera offers true Day/Night operation in combination with premium attributes like WDR (Wide Dynamic Range) for adverse lighting conditions. In addition to Lumii III technology and 12-Bit high image clarity that typical 700TVL security cameras the Messoa SCB267-HN5 also includes DNR (Digital Noise Reduction) for crisp imaging even in low light and High Light Compensation (HLC) for overcoming bright light sources.
The Messoa SCB267-HN5 WDR Day/Night Security Camera is perfect for indoor or outdoor (when used with a security camera housing) surveillance applications. The CCTV Camera supports a variety of lens options with DC Auto Iris Function. Messoa SCB267-HN5 Day/Night CCTV Camera also offers built-in motion detection, privacy mask and features a full OSD menu for camera configurations. The Messoa SCB267-HN5 is a sure choice for professional security camera systems seeking the highest CCTV high resolution video.
Easy installation with dual voltage support also allows simple integration with professional CCTV camera systems.

Messoa SCB267-HN5 Main Features:

  • Sony 1/3" EXview HAD CCD II
  • 700TVL High Resolution
  • Lumii III Technology
  • True Day/Night Operation
  • WDR Wide Dynamic Range
  • DNR Digital Noise Reduction
  • HLC High Light Compensation
  • Supports CS Mount: DC Auto Iris or Manual Iris Lens
  • Features OSD (On Screen Display) Menu
  • Supports Dual Voltage 12VDC or 24VAC 4W

Messoa SCB267-HN5 Specifications:

Signal System NTSC PAL
Image System
 Image Pickup Device SONY 1/3" Exview HAD CCD II
 Effective Pixels(HxV) 976 (H) × 494 (V) 976 (H) × 582 (V)
 Scanning System 2:1 Interlace V: 59.94 Hz , H: 15.734KHz 2:1 Interlace V: 50 Hz , H: 15.625 KHz
 Sync System Internal / line lock
 Horizontal Resolution 700 TV lines
 Lens Mount CS with back focus
 Gamma Correction 0.45
 Minimum Illumination F1.2 color mode:0.02 lux @ 50 IRE , 0.01 lux @ 30 IRE; B/W mode: 0.01 lux @ 50 IRE, 0.05 lux @ 30 IRE
 S/N Ratio More than 50dB (AGC off)
 Iris Control DC & manual lens support
 Gain Control On / Off (selectable)
 White Balance ATW/ Manual/ User/ Push/ Push lock
 Electric Shutter 1/50(1/60)~1/10K sec
 Flickerless On / Off (selectable)
 BLC Off/ BLC/ HLC(High Light compensation) (selectable)
 Day/Night Mode Mechanical (ICR) control (Auto/Color/Forced to BW)
 DNR Yes
 Motion Detection Yes, 4 areas (max)
 Privacy Mask Yes, 8 zones (max)
 High Light Compensation Yes
 ATR=(WDR) On / Off (selectable)
 OSD Yes
 Multi Language English, Japanese, German, French, Russian, Portuguese, Spanish, Simplified Chinese
 Video Output 1Vpp composite output, 75 ohm
Power Supply
 Power Requirement DC 12V & AC 24V ± 10% DC 12V & AC 24V ± 10% AC 90V~260V ± 10%
 Power Consumption 4W (max.) 4W (max.) 5W (max.)
 Operating Temperature -10ºC ~ 50ºC (14ºF ~ 122ºF)
 Operating Humidity 90% MAX
 Storage Temperature -20ºC ~ 60ºC (-4ºF ~ 140 ºF)
 Storage Humidity 70% MAX
 Dimensions(WxHxD) 63.3mm x 53.5mm x 129mm(2.49" x 2.10" x 5.07")
 Weight 500g approx. (1.1 lbs.)
Ordering Information SCB267-HN5 SCB267-HP5 SCB267-HP7
