Messoa DVR100-016 DVR 16ch Digital Video Recorder

  • Messoa DVR100-016 DVR System
  • Messoa DVR100-016 DVR Features

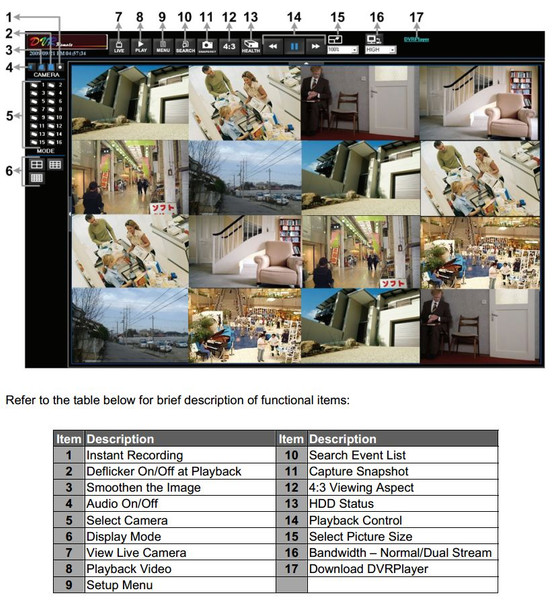

  • Messoa DVR100-016 DVR  remote viewing
  • Messoa DVR100-016 DVR  diagram
  • Messoa DVR100-016 DVR  rear panel
Contact us on 855 376 6699

Product Description

Messoa DVR100-016 DVR 16ch Digital Video Recorder is a high performance Linux based DVR system for reliable, high quality video surveillance and monitoring. The Messoa DVR100-016 DVR provides superb H.264 compression with dual streaming and is capable of video recording in Real-time 480fps or Full D1 Resolution for professional CCTV security camera systems. The unit provides powerful remote and local monitoring capabilities and is able to provide Full 1080P High Definition locally from the DVR. The Messoa DVR100-016 Digital video Recorder also provides CMS software, Client software, Web browser plug-in and mobile viewing applications. Another real benefit of the system is it supports a full 16 channels of Audio including audio output for two way communication.
The Messoa 16ch Digital Video Recorder is equipped with DVD-RW option, supports two SATA Hard Drives and offers convenient back up and export even through USB. The CCTV DVR System further allows integration for multiple external devices like alarm sensors and also offers a relay output. The unit further includes multi-protocol PTZ Camera Support with RS-485 interface for powerful surveillance applications. Various event triggers and on-board detection methods as well as simple to operate yet advance functionality ensure an intelligent CCTV system. The Messoa DVR100-016 is the perfect economic solution for high performance Video Surveillance in professional grade systems.

Messoa DVR100-016 Main Features:

  • Linux Embedded 16ch DVR Digital Video Recorder
  • H.264 Compression with Dual Streaming technology
  • Supports up to 240fps total real-time recording.
  • Supports up to D1 (4CIF) resolution recording.
  • Local Monitoring with VGA or HD High Definition 1080P Output
  • CMS Software, Client Software, Web browser, Mobile Devices and Smart Phones
  • - (IPad, IPhone, Android)
  • Offers 4 channel audio input and 1ch Audio output
  • Includes Two SATA Drive Bays for Storage
  • Allows USB or DVD Writer Export and Back-up
  • RS-485 Interface for PTZ Control
  • RS-232C for POS applications
  • IR Remote Control Included

Specifications for Model DVR100-016:

Operating System Embedded (Linux)
Input BNC×8, 1.0 Vp-p, 75 ohm BNC×16, 1.0 Vp-p, 75 ohm
Resolution NTSC: 720x480, PAL: 720x576 (BNC)
Call Monitor BNC × 1, 1.0 Vp-p, 75 ohm
BNC Output BNC x 1 , NTSC: 720x480, PAL:720x576
Digital Display
Output 1024x768, 1280x1024, 1920x1080p
VGA 1024x768, 1280x1024, 1920x1080p
Picture Refresh Rate NTSC: 30 PPS/per-channel, PAL: 25 PPS/per-channel
 Input  D-SUB × 16, Line-In
Main Audio RCA x1, Line-Out D-SUB × 1, Line-Out
Call Audio RCA x1, Line-Out D-SUB × 1, Line-Out
 Compression Method Proprietary
 Data Rate 8 KB/s, per CH
Compression Method H.264
Recording Mode Schedule, Alarm, Motion Detection
Pre-alarm Support
NTSC 720x480 Max 240 pps
 720x240 Max 480 pps
 360x240 Max 480 pps
PAL 720x576 Max 200 pps
 720x288 Max 400 pps
 360x288 Max 400 pps
Recording Quality 8 Levels Presets, Adjustable
Image Size 1 KB to 22 KB/Picture
Storage Mode Linear / Circular
Data Lifetime Yes (Programmable)
Built-in Storage Interface 2 SATA total (for HDD or DVD+RW)
2 SATA (for HDD) and
1 SATA (for DVD+RW only)
Cartridge / DVDRW Optional
Export 2 USB 2.0 Ports (support Thumb Drive or DVD+RW)
Alarm Input DSUB-25 , 8 x TTL-In DSUB-25 , 16 x TTL-In
Alarm Relay Output DSUB-25 , 1 x N.C.-COM-N.O. , 1.0A / 30 VDC or 1.0A / 120 VAC
Alarm Detection N.C. / N.O., Programmable
Motion Detection 16 × 12 Grid Array, Sensitivity, and Trigger level adjustable
Video Loss Detection Programmable
Network Connectivity RJ45, 10/100/1000 Mbps Ethernet, Supports PPPoE/ DDNS/ DHCP
Remote Control Software CMS supported
Remote Operation Monitoring, Playback, Recording, System setup, Dome
Camera control, Archiving
RS-485 D-SUB
IR Remote Yes
PTZ Dome Camera Control
Protocol DSCP, Pelco P, Pelco D, AD422, Fastrax 2, Panasonic, JVC
Unit Dimension (W × H × D) 437 × 373 × 56 mm (17.2 × 14.69 × 2.2 inches)
Unit Weight 1.5 Kg (3.4 lbs.)
Package Dimensions
(W × H × D) 393 × 139 × 358mm (15.5 × 5.5 × 14.1 inches)
Package Weight 2.5 Kg (5.6 lbs.)
Operating Temperature 0 °C ~ 40 °C (32 °F ~ 104 °F)
Relative Humidity 10% ~ 90%, Non-condensing
Power Consumption &
Input AC 100 ~ 240V, 50-60Hz, 60W adaptor
Order Information
NTSC: DVR100-016-N;
PAL: DVR100-016-P
