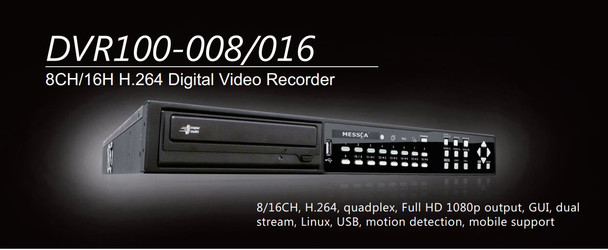

  • Messoa DVR100-008 8  channel DVR Features

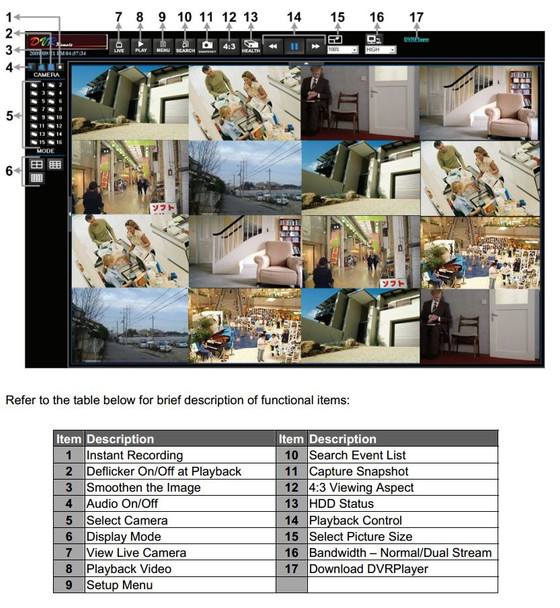

  • Messoa DVR100-008 remote monitoring software

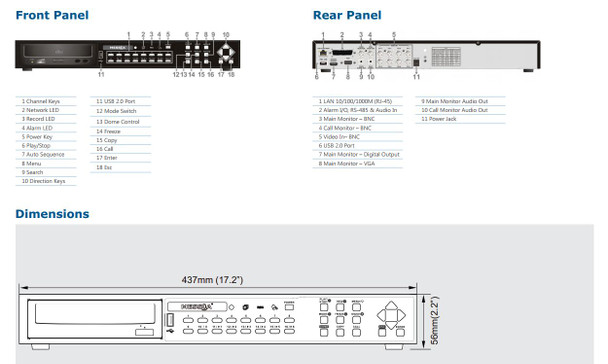

  • Messoa DVR100-008 Front Panel Operation
  • Messoa DVR100-008 rear panel
Contact us on 855 376 6699


Messoa DVR100-008 8 channel DVR is an advanced Linux embedded Digital Video Recorder for professional CCTV Video Security. The DVR100-008 Messoa 8ch DVR offers H.264 compression with dual streaming technology and video frame rates to 120fps in full D1 High Resolution. The Messoa DVR is further more a Linux embedded unit with integrated HD display output for superb high definition local monitoring in full 1080P. The Messoa DVR100-008 8ch Digital Video Recorder is the perfect DVR for medium sized applications and even an excellent solution for multi-site management thanks to advanced remote viewing options. The DVR unit supports CMS Software, Client Software, Web browser interface and Mobile device support for IPhone, IPad and Android. The Messoa DVR DVR100-008 is a feature rich system perfect for all types of surveillance applications.
Messoa DVR100-008 Digital Video Recorder also offers support for Two Way Audio including 8 audio inputs and 1 output. Other professional functions are supported including Digital I/O, PTZ Camera Support with RS-485 and USB export and back-up just to name a few. Convenient export via DVD-RW and network are also possible. The DVR features 2 SATA HDD storage drive bays for excellent on-board video storage capacity.  The Messoa DVR100-008 H.264 DVR is an economic yet features rich Digital Video Recorder for reliable, high quality CCTV Security Camera Systems.

Messoa DVR100-008 Main Features:

  • Linux Embedded 8ch DVR Digital Video Recorder
  • H.264 Compression with Dual Streaming technology
  • Supports up to 240fps total real-time recording.
  • Supports up to D1 (4CIF) resolution recording.
  • Local Monitoring with VGA or HD High Definition 1080P Output
  • CMS Software, Client Software, Web browser, Mobile Devices and Smart Phones
  • - (IPad, IPhone, Android)
  • Offers 4 channel audio input and 1ch Audio output
  • Includes Two SATA Drive Bays for Storage
  • Allows USB or DVD Writer Export and Back-up
  • RS-485 Interface for PTZ Control
  • RS-232C for POS applications
  • IR Remote Control Included

Messoa DVR100-008 Specifications:

Model DVR100-008
Operating System Embedded (Linux)
Input BNC×8, 1.0 Vp-p, 75 ohm BNC×16, 1.0 Vp-p, 75 ohm
Resolution NTSC: 720x480, PAL: 720x576 (BNC)
Call Monitor BNC × 1, 1.0 Vp-p, 75 ohm
BNC Output BNC x 1 , NTSC: 720x480, PAL:720x576
Digital Display
Output 1024x768, 1280x1024, 1920x1080p
VGA 1024x768, 1280x1024, 1920x1080p
Picture Refresh Rate NTSC: 30 PPS/per-channel, PAL: 25 PPS/per-channel
 Input D-SUB × 8, Line-In
Main Audio RCA x1, Line-Out D-SUB × 1, Line-Out
Call Audio RCA x1, Line-Out D-SUB × 1, Line-Out
 Compression Method Proprietary
 Data Rate 8 KB/s, per CH
Compression Method H.264
Recording Mode Schedule, Alarm, Motion Detection
Pre-alarm Support
NTSC 720x480 Max 120 pps
 720x240 Max 240 pps
 360x240 Max 240 pps
PAL 720x576 Max 100 pps
 720x288 Max 200 pps
 360x288 Max 200 pps
Recording Quality 8 Levels Presets, Adjustable
Image Size 1 KB to 22 KB/Picture
Storage Mode Linear / Circular
Data Lifetime Yes (Programmable)
Built-in Storage Interface 2 SATA total (for HDD or
2 SATA (for HDD) and
1 SATA (for DVD+RW only)
Cartridge / DVDRW Optional
Export 2 USB 2.0 Ports (support Thumb Drive or DVD+RW)
Alarm Input DSUB-25 , 8 x TTL-In DSUB-25 , 16 x TTL-In
Alarm Relay Output DSUB-25 , 1 x N.C.-COM-N.O. , 1.0A / 30 VDC or 1.0A / 120 VAC
Alarm Detection N.C. / N.O., Programmable
Motion Detection 16 × 12 Grid Array, Sensitivity, and Trigger level adjustable
Video Loss Detection Programmable
Network Connectivity RJ45, 10/100/1000 Mbps Ethernet, Supports PPPoE/ DDNS/ DHCP
Remote Control Software CMS supported
Remote Operation Monitoring, Playback, Recording, System setup, Dome camera control, Archiving
RS-485 D-SUB
IR Remote Yes
Pan/Tilt/Zoom PTZ Dome Camera Control:
Protocol DSCP, Pelco P, Pelco D, AD422, Fastrax 2, Panasonic, JVC
Unit Dimension (W × H × D) 437 × 373 × 56 mm (17.2 × 14.69 × 2.2 inches)
Unit Weight 1.5 Kg (3.4 lbs.)
Package Dimensions
(W × H × D) 393 × 139 × 358mm (15.5 × 5.5 × 14.1 inches)
Package Weight 2.5 Kg (5.6 lbs.)
Operating Temperature 0 °C ~ 40 °C (32 °F ~ 104 °F)
Relative Humidity 10% ~ 90%, Non-condensing
Power Consumption & Input AC 100 ~ 240V, 50-60Hz, 60W adaptor
Order Information
Model No. NTSC: DVR100-008-N;
PAL: DVR100-008-P
