KTNC K9-A900 9 channel 960H DVR 270fps

Write a Review
  • KTNC K9-A900 9 channel 960H DVR System
  • KTNC K9-A900 960H DVR Front Panel

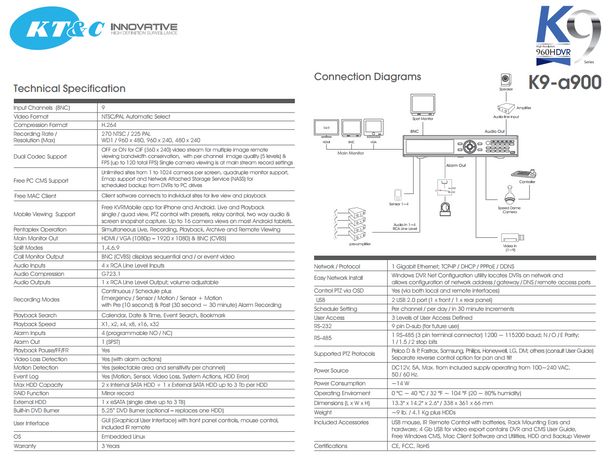

  • KTNC K9-A900 DVR Specifications
No Longer Available - Contact Us


KTNC K9-A900 9 channel 960H DVR from hardware to software achieves the pinnacle in CCTV video surveillance systems. Utilizing the latest H.264 compression and the new high resolution 960H (960x480 pixels) High Resolution this DVR along with 700TVL Security Cameras allows beyond 35% finer image detail compared to traditional D1 or 4CIF DVR solutions. This KTNC K9 DVR is a powerhouse delivering this new high resolution standard in full frame rate of 30fps per CCTV channel or a total of 270fps. The foundation for performance of the digital video recorder is unsurpassed and it is the combination of its other features that set it as an ideal choice for a wide range of security systems.

KTNC 9ch DVR K9-A900 is packed with incredible features that can't be compared to traditional DVR systems. Take for example the free 1024ch CMS software allowing total control and massive multi-site surveillance. Other benefits to the most specific details like complete remote DVR configuration, Free DDNS or extended function mobile viewing with IPhone, IPad and Android are all provided. Locally the units offer a HDMI output for 1080P HD display, total system control via front panel and control devices like USB mouse, keyboards or IR remote. Easy back-up with USB or Built-in DVD-RW, E-map, various recording modes and a long list of more quality attributes make this unit truly stand-alone as a top tier Linux DVR.

On-board functionality is deeply integrated with the video management software allowing all types of advanced security cameras system designs including multi-protocol RS-485 PTZ support, Two Way Audio or I/O communication add-ons. The KP-A900 Digital Video Recorder is also rack-mountable with rack mounts included, offers MAC client for cross OS support and has a 3 year warranty for long lasting satisfaction.

KTNC K9-A900 Main Features:

  • Linux Embedded 9 channel DVR 960H
  • H.264 Hardware Compression (Dual Streaming)
  • 960H (WD1 960 x 480) 270fps Real-time Viewing, Recording and Playback
  • HDMI 1080P HD Display, VGA and BNC monitor options Plus Spot Monitor
  • Pentaplex Operation (i.e. Simultaneous Viewing, Recording, playback, back-up and remote view)
  • Intelligent DVR Surveillance Software with intuitive functions like a graphical display of time versus event trigger
  • Full Featured Professional: Viewing, Search, Playback and Export Functions (Export via USB or DVD option)
  • DVR Graphical User Interface (GUI) is built with Multi-language support
  • Local Mouse Control, Front Panel and IR Remote Controller
  • Complete Remote Monitoring with Mobile Viewing on IPhone, IPad or Android (Live, Playback and PTZ)
  • Professional Free DDNS, Web Server, Windows 1024ch CMS and MAC Client Software
  • Four (4) Channel Audio Input and (1) Channel Output: Two Way Communication
  • Gigabit LAN Ethernet, Multi-Protocol Network Standard Support
  • RS-485 PTZ Control (USB mouse on-screen and front panel control support)
  • Supports 6TB Total via 2 Internal SATA HDD Slots
  • Built-in DVD burner (Optional – replaces one HDD)
  • Includes: USB Mouse, IR Remote and 4G USB Flash Drive
  • 19” Rack mountable – rack ears included
  • 3 Year Warranty
