Samsung SRD-1642 960H DVR H.264 Real-time 16 channel

  • Samsung SRD-1642 960H DVR 16 channel Front View
  • Samsung SRD-1642 960H DVR 16ch 480fps h.264
  • Samsung SRD-1642 960H 480fps Digital Video Recorder 16 channel
  • Samsung SRD-1642 960H rear panel view
  • Samsung iPoLiS Mobile Viewing App
  • Samsung SRD-1642 Rear Diagram

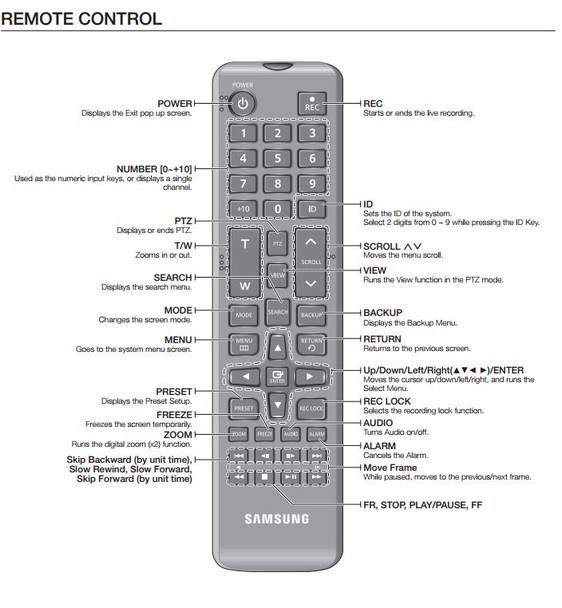

  • Samsung SRD-1642 IR Remote Control
  • Samsung SRD-1642 specifications
No Longer Available - Contact Us

Product Description

Samsung SRD-1642 960H 16ch DVR System is a high performance, new age H.264 Digital Video Recorder for professional CCTV video security. The unit delivers Real-time 480fps monitoring and recording for higher resolution CCTV Security Cameras at the new 960H video standard. Designed to provide the best features, affordable cost and outstanding quality, the new Samsung SRD-1642 Digital Video Recorder is a unit that will not disappoint. Administrators enjoy flexible functionality, users are granted easy viewing options while installers are provided the full range of attributes demanded by today's sophisticated CCTV security systems.

Samsung SRD-1642 DVR Features:

  • Linux Embedded 16 Channel DVR (4 Channel Audio)
  • 960H recording (960 x 480 pixels) over 35% more detail than D1/4CIF
  • 480fps Real-time Recording at Full 960H for up to 30fps per channel with each configurable
  • H.264 Compression for efficient bandwidth and storage management
  • HDMI, VGA and Spot Monitor Support
  • Multiple Recording Modes including in-depth Pre and Post Alarm Settings
  • Multiple Search Modes including Date/Time, Event, Back Up and POS all with Preview
  • Supports Multiple Network IT Protocol Standards and Bandwidth Management
  • Remote Viewing via Webviewer (web browser), SSM, SmartViewer & Net-I (CMS Software)
  • Mobile Viewing via Android and (iOS) iPhone, Ipad - iPoLiS App for Smart Phones and Tablets
  • Supports up to 2 Internal SATA Hard Disk Drives (HDD)
  • 16 Alarm Inputs and 2 Relay Outputs (I/O) Terminals
  • RS-485 for PTZ Cameras (over 13 Leading Protocols) and Joystick System Controllers
  • RS-232 Integration for VSI-pro POS (point-of-sale) Interface which A2Z also supplies
  • 2 USB 2.0 Ports
  • Control via Mouse or Included Remote
  • Low Power Consumption
  • Includes Low Profile Design with Rack Mount Kit
  • 345.0 x 52.0 x 254.8mm (14.76" x 2.05" x 10.03"
  • Weight Approx. 5.25lbs. With Hard Drives


Samsung Superb Performance:
Samsung SRD-1642 is a modern H.264 DVR boasting the latest 960H (960 x 480 pixels) CCTV high resolution recording. This ground breaking format when paired with new higher resolutions Security Cameras like 700TVL, 800TVL and 1000TVL units delivers over 35 percent finer image detail than previous 4CIF or D1 systems. The SRD-1642 Samsung 16ch DVR provides Real-time recording at 480fps, up to 30fps on each channel that is also individually configurable per camera.

Complete Video Monitoring
Local Monitoring to Remote Viewing are all richly provided with all the commonly desired features included for maximum flexibility. Locally the units offer HDMI HD video output, VGA monitor support and even spot monitor with On-screen display. Various other local qualities are built-in like USB export, USB mouse and IR Remote Control to system keyboard/PTZ joystick integration. Remotely the usability is even further expanded with web browser support, CMS Software (SmartViewer and Net-i) to Mobile viewing with Android or iOS (apple) tablets and smart phones. Cleanly developed Software GUI on all levels empowers a variety of easy to navigate full feature system operations like Viewing, Search and Playback. Users can even take advantage of remote PTZ camera control or Two Way Audio as simple examples.

Professional Grade Integration - Easy Installation:
Top to bottom the Samsung SRD-1642 16 channel Digital Video Recorder is an ideal choice for a high grade DVR without the high grade cost. The unit allows integration with System Controllers, PTZ Joysticks, and PTZ cameras via a RS-485 connection as well as POS (point-of-sale) support via RS-252. Sixteen alarm terminal inputs and two relay outputs allow even more connectivity for sensors and added system abilities. Four Channel Audio input, one channel audio output, Multi-language Support to easy navigation all combine making install versatile and simple.

Multiple Hard Drive Selections:


Last Updated November 22, 2014
