KT&C KPC-LP500NH License Plate Capture Camera B/W 600TVL

Write a Review
Calculated at Checkout
  • KT&C KPC-LP500NH High Contrast True License Plate Capture Camera with 600TVL High Resolution.

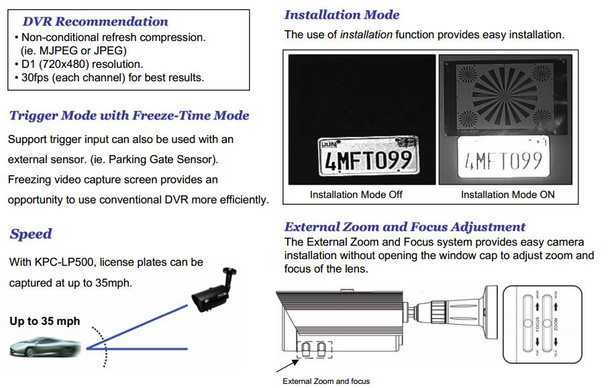

  • KT&C KPC-LP500NH Feature Over-view
  • KT&C KPC-LP500NH key camera features

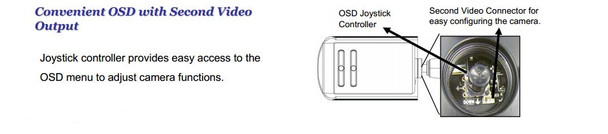

  • KT&C KPC-LP500NH other camera feature diagram

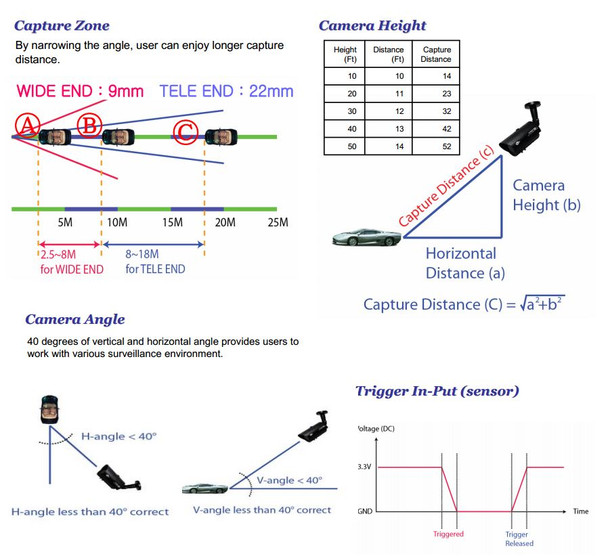

  • KT&C KPC-LP500NH License Plate Camera Installation Guide and Diagram
  • KT&C KPC-LP500NH Camera dimensions


KT&C KPC-LP500NH LPR License Plate Capture Camera is specifically designed to deliver license plate capture in any lighting condition. The unit delivers optimal License Plate capture for true LPR and ANPR Systems. Super Image clarity with 600TVL High Resolution and specialized filter deliver ensure clear plate capture even under headlight glare. The camera delivers exceptional flexibility with an eight to sixty foot capture range and easy adjustment with a 9-22mm lens. KT&C KPC-LP500NH is best suited for close-medium range and medium speed traffic up to 35mph.
KT&C KPC-LP500NH is an innovative camera design offering superior functionality and reliability for optimizing LPR (License Plate Recognition) Systems. The Camera also offers a flexible design with externally adjustable lens, OSD menu and extra service monitor easy setup is certain. The License Plate Cameras also offer a solid IP66 weatherproof outdoor construction with built-in sun-shield and included mounting bracket with universal mounting bracket options. The KT&C KPC-LP500NH also easily adapts to CCTV Camera Systems and LPR Systems power requirements with dual voltage 12VDC or 24VAC input. The KT&C LPR Camera is a sure choice for truly cost effective, true License Plate Capture.

KT&C KPC-LP500NH Main Features:

1/3” Sony Super HAD CCD II
• 600 TVL High Resolution Resolution
• Special filter and IR LED provides maximum legibility under headlight glare
• Plate capture up to 35mph (56Km/H)
• License plate up to 8ft ~ 60ft (2.5M ~ 18.5M)
• Weatherproof (IP66 Rating)
• Sensor Input with Freezing Time Mode
• DC12V / AC24V Dual power

KT&C KPC-LP500NH  Specifications:

Signal System NTSC PAL
Image Color Black and White
Imaging Device 1/3" Sony Super HAD CCD II
Scanning System 2:1 Interlace
Scanning Frequency (V) 59.94 Hz 50 Hz
Scanning Frequency (H) 15.734 KHz 15.625 KHZ
Total Pixels 811(H) x 508(V) 795(H) x 596(V)
Effective Pixels 768(H) x 494(V) 752(H) x 582(V)
Synchronization Internal
Horizontal Resolution 600 TVL
Lens Size 9.0 ~ 22.0 mm Vari-focal Lens
IR LED 850 nm, 20 ea, Up to 30 m (80FT)
Trigger Sensor Input X 1(3.3V DC drop to GND)
Shutter Speed 1/10,000 sec
OSD Built-in
Mode Installation / License plate
Freeze time off / on(3 / 5 / 10 sec)
Negative Image: ON/OFF
IP Rating IP66 (Weatherproof Outdoor)
Operating Temperature -10 °C ~ 50 °C (14 °F ~ 122 °F)
Storage Temperature -20 °C ~ 60 °C (-4 °F ~ 140 °F)
Humidity Less than 80%RH
Weight Approx. 900g
Power Consumption DC12V / AC24V : AC24V ±10% Max 7W, DC12V ±10% Max 700ma
