KT&C KPC-NSP301NU IR Bullet Security Camera 600TVL

Write a Review
Calculated at Checkout
  • KT&C KPC-NSP301NU IR Bullet Camera
  • KT&C KPC-NSP301NU main features

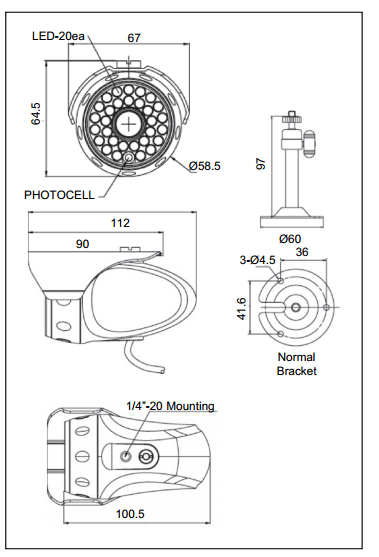

  • KT&C KPC-NSP301NU dimensions

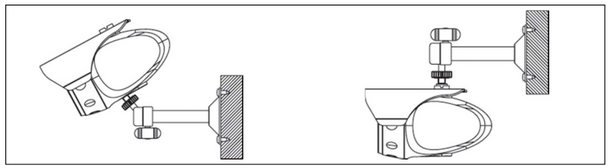

  • KT&C KPC-NSP301NU mounting options


KT&C KPC-NSP301NU IR Bullet Security Camera is a powerful outdoor ready CCTV Infrared Security Camera. The unit features a Sony Exview HAD CCD II with superior 600TVL High Resolution Imaging. The IR Bullet Camera features standard a 3.6mm Fixed Lens and special request models including 2.97mm, 4mm, 6, 8 and 12mm Lens options are available. The KT&C IR Bullet Camera has 20 built-in Infrared LEDs for an effective night vision range of 30m or approximately 80ft. The KT&C KPC-NSP301NU IR Bullet Security Camera is further constructed to IP67 weatherproof standards perfect for harsh weather and environments. The IR Bullet Security Camera is a compact unit featuring a sun-shield and mounting bracket. The unit can be mounted from both bottom and top without losing the sun-shield. This IR Bullet Camera is a perfect high performance unit offering a cost effective solution for both indoor and outdoor security camera system needs.

KT&C KPC-NSP301NU Main Features:

  • Sony 1/3” Super HAD CCD II
  • 600TVL Horizontal Resolution
  • Built-in 20 Infrared IR LEDs 850nm
  • Max. 80ft Long Distances Visibility at Night
  • Fixed Iris IR Corrective Board Lens (3.6mm Standard)
  • IR Reflection Free with Special Front Glass
  • Digital Day & Night
  • Outstanding Durability with IP67
  • DC12V Power

KT&C KPC-NSP301NU Specifications:

Image Device SONY 1/3” SUPER HAD CCD II
Scanning System 2 : 1 Interlace
Scanning Frequency H : 15.734 (KHz), V : 59.94 (Hz)
Total Pixels 811(H) × 508(V)
Effective Pixels 768(H) × 494(V)
Horizontal Resolution 600 TVL
Day and Night Digital Day & Night
Electronic Shutter 1/60 ~ 1/100,000sec Auto
S/N Ratio More than 50dB (AGC Off)
Sensitivity 0 Lux ( IR LED On)
IR Led 850nm, 20ea, up to 30m(80ft)
Gamma Correction r = 0.45
Sync System Internal
IP Rating IP67 (Waterproof)
Video Output Composite 1[Vp-p]75(?) unbalanced
Power Supply DC 12V (±10%) Max 300mA
Operating Temperature: 14°F ~ 122°F (-10°C ~ 50°C)
Storage Temperature -4°F ~ 140°F (-20°C ~ 60°C)
Operating Humidity Less than 80%
Lens Options: Board Lens: 2.97mm,3.6mm,4.3mm, 6.0mm,8.0mm, 12.0mm
