KT&C KPC-DE100NUV17 Dome Security Camera 700TVL

Write a Review
Calculated at Checkout
  • KT&C KPC-DE100NUV17 Dome Security Camera
  • KT&C KPC-DE100NUV17 features
  • KT&C KPC-DE100NUV17 feature
  • KT&C KPC-DE100NUV17 3 axis adjustment
  • KT&C KPC-DE100NUV17 camera size


KT&C KPC-DE100NUV17 Indoor Dome Security Camera is a feature rich CCTV Dome Camera for professional grade Video Surveillance applications. The KT&C KPC-DE100NUV17 CCTV Dome Camera delivers superb 700TVL High Resolution and includes intelligent Image Enhancements like ATR, BLC, HLC, DNR and others for absolute image clarity in a variety of environments. The Dome camera is equipped with a 2.8-12mm Varifocal Auto Iris Lens and 3 Axis Camera Adjustment for easy installation and camera location.
Additional features such as OSD (on screen display) and service monitor output make install of the cameras even easier and more effective. Other benefits of the KT&C KPC-DE100NUV17 Indoor 700TVL CCTV dome cameras include Privacy Masking and Motion Detection. Though the unit is a color dome security camera its DSS feature allows for superior low light operation in as little as 0.0001 Lux. The unit also features Dual Voltage power input allowing the camera to easily adapt to 12VDC or 24VAC Security Camera Systems. The standard unit is provided in black however Ivory color models are available upon request.

KT&C KPC-DE100NUV17 Main Features:

1/3”960H Interline CCD

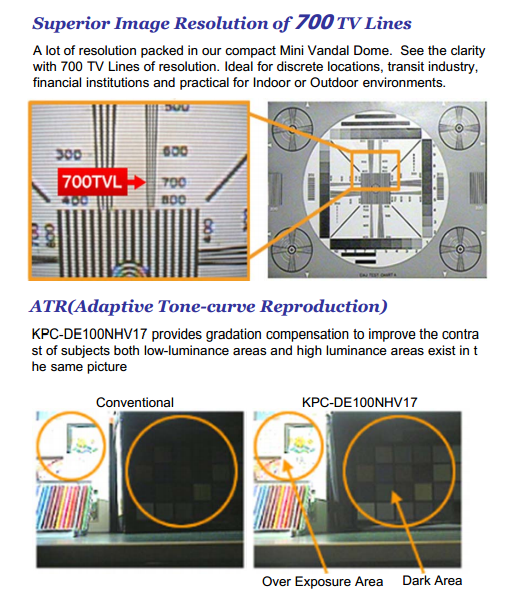

• 700TVL Horizontal Resolution
• Fast Shutter Speed (1/60 ~ 1/100,000 sec)
• 2D Digital Noise Reduction (2D DNR)
• Adaptive Tone-curve Reproduction (ATR)
• Back Light Compensation (BLC)
• Highlight Compensation (HLC)
• 8-Zone Privacy Masking
• 4-Zone Motion Detection
• Mirror /Brightness / Contrast / Sharpness / HUE/ Gain
• On Screen Display (OSD) Menu W/ Multi Language Support
• 12VDC / 24VAC Dual Power
• Multi-Language OSD
• Monitor Output Terminal for Easy Servicing

Signal System NTSC PAL
Image Sensor 1/3“960H Interline CCD
Scanning System 2:1 Interlace
Horizontal Resolution 700TV Lines
Scanning Frequency (H) 15.734 KHz 15.625 KHZ
Scanning Frequency (V) 59.94 Hz 50 Hz
Total Pixels 1020(H) x 508(V) 1020H) x 596(V)
Effective Pixels 976(H) x 494(V) 976(H) x 582(V)
Synchronization Internal
Lens Size Varifocal F=2.8 ~12.0 mm
S/N More than 50dB (AGC Off)
Gamma R=0.45
Min. Illumination 0.0001 Lux / Faceplate
Shutter Speed 1/60 ~ 1/100,000 sec 1/50 ~ 1/100,000 sec
Day & Night N/A
Video Output Level 1Vp-p Composite (75?)
On-Screen Display (OSD) Built-in (Inner Key / Joystick)
2DNR On / OFF (Level Adjustable)
ATR On / OFF (Level Adjustable)
White Balance ATW / Push / User1 / User2 / Anti CR / Manual / Push-lock
Privacy Masking 4 Zones
Mirror On / Off
Motion Detection 4 Zones
Other Function Brightness / Contrast / Sharpness / HUE / Gain
Language Option English / Japanese / German / French / Russian / Portuguese / Spanish
Operating Temperature -10 °C ~ 50 °C (14 °F ~ 122 °F)
Storage Temperature -20 °C ~ 60 °C (-4 °F ~ 140 °F)
Humidity Less than 80%RH
Power Supply DC 12V ±10% (Max. 160mA) / AC 24V ±10% (Max. 2.2W)
