KT&C KPC-VDE101NUV17 Vandal Proof Dome Security Camera

  • KT&C KPC-VDE101NUV17 CCTV Vandal Dome Camera
  • KT&C KPC-VDE101NUV17 Key Features
  • KT&C KPC-VDE101NUV17 High Resolution

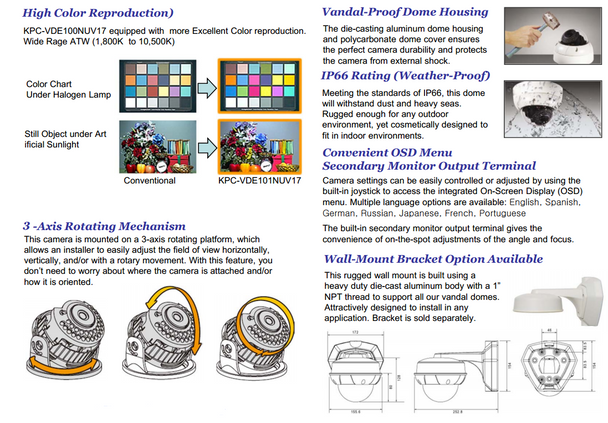

  • KT&C KPC-VDE101NUV17 Additional Features
  • KT&C KPC-VDE101NUV17 diagram
Calculated at checkout

Product Description

KT&C KPC-VDE101NUV17 Color Vandal Proof Dome Security Camera is a professional grade CCTV Dome camera suitable for outdoor applications and environments where the cameras security is at risk. The KT&C KPC-VDE101NUV17 Vandal Proof Dome Security Camera employs the latest 1/3" Interline CCD for a stunning 700TVL High resolution output. The Vandal Dome camera is further equipped an assortment of intelligent image enhancements such as ATR, HLC and DNR for superior image processing. The unit is further built with a variety of image adjustments and includes an OSD (on screen display) for easy setup.
The KT&C KPC-VDE101NUV17 CCTV Vandal Dome Security Camera also features an integrated 2.8-12mm Varifocal Lens and 3 Axis Camera bracket for easy adjustment and adaptability. The cameras rugged design is built to withstand tough conditions. It has an IP66 weatherproof rating and its vandal proof construction can endure high impact assaults. The KT&C KPC-VDE101NUV17 Vandal Dome Camera further supports dual voltage input for 24VAC or 12VDC systems. The Camera is a rugged solution with superior performance and the latest features to ensure maximum benefit to Professional security camera systems.

KT&C KPC-VDE101NUV17 Main Features:

1/3”960H Interline CCD
• 700TVL Horizontal Resolution
• Vandal-Proof & Weather-Proof (IP66)
• Varifocal (2.8 ~12.0mm)
• Fast Shutter Speed (1/60 ~ 1/100,000 sec)
• 2D Digital Noise Reduction (2D DNR)
• Adaptive Tone-curve Reproduction (ATR)
• Back Light Compensation (BLC)
• Highlight Compensation (HLC)
• 4-Zone (Privacy Masking / Motion Detection)
• Mirror /Brightness / Contrast /
Sharpness / HUE/ Gain
• On Screen Display (OSD) Menu
W/ Multi Language Support
• DC 12V / AC 24V Dual Power
• Multi-Language OSD
• Monitor Output Terminal for Easy Servicing


Signal System NTSC PAL
Image Sensor 1/3“ 960H Interline CCD
Scanning System 2:1 Interlace
Horizontal Resolution 700TV Lines
Scanning Frequency (H) 15.734 KHz 15.625 KHZ
Scanning Frequency (V) 59.94 Hz 50 Hz
Total Pixels 1020(H) x 508(V) 1020H) x 596(V)
Effective Pixels 976(H) x 494(V) 976(H) x 582(V)
Synchronization Internal
Lens Size Varifocal 2.8 ~12.0 mm
S/N More than 50dB (AGC Off)
Gamma R=0.45
Min. Illumination 0.0001 Lux / faceplate
Shutter Speed 1/60 ~ 1/100,000 sec 1/50 ~ 1/100,000 sec
Day & Night N/A
Video Output Level 1Vp-p Composite (75?)
IP Rating IP66 (Water Repellent)
On-Screen Display (OSD) Built-in (Inner Key / Joystick)
2DNR On / OFF (Level Adjustable)
ATR On / OFF (Level Adjustable)
White Balance ATW / Push / User1 / User2 / Anti CR / Manual / Push-lock
Privacy Masking 4 Zones
Mirror On / Off
Motion Detection 4 Zones
Other Function Brightness / Contrast / Sharpness / HUE / Gain
Language Option English / Japanese / German / French / Russian / Portuguese / Spanish
Operating Temperature -10 °C ~ 50 °C (14 °F ~ 122 °F)
Storage Temperature -20 °C ~ 60 °C (-4 °F ~ 140 °F)
Humidity Less than 80%RH
Power Supply DC 12V ±10% (Max. 160mA) / AC 24V ±10% (Max. 2.2W)

Optional Models:

KPC-VDE101NUV17 (standard)
KPC-VDE101NUV7 (9-22mm lens option)
