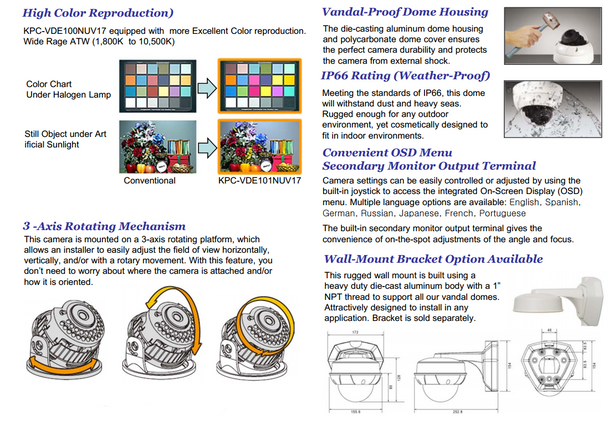

  • KT&C KPC-VNE101NUV18 features

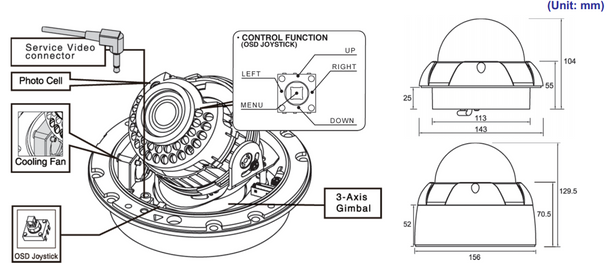

  • KT&C KPC-VNE101NUV18  diagram


KT&C KPC-VNE101NUV18 Vandal Proof IR Dome Security Camera is a full feature and high grade outdoor dome CCTV camera for uncompromising Video surveillance. The KT&C IR Vandal Dome Cameras feature the latest interline CCD with stunning 700TVL high resolution and are equipped with a selection of intelligent video enhancements. Selectable Image functions include DNR, ATR, HLC, BLC, AGC, AWB and more. Further benefits include True Day/Night operation with 30 integrated Infrared (IR) LEDs for absolute night vision and IR range to 100ft. The KT&C KPC-VNE101NUV18 Vandal IR Dome Cameras are truly professional grade dome security cameras with attributes such as built in motion detection, privacy masking and OSD (on screen display) for simple and effective camera setup.

The unit is built with a 2.8-12mm Varifocal DC Auto Iris Lens and offers 3 axis camera adjustment difficult installation requirements. Truly a rugged dome camera the unit provides a high impact polycarbonate dome cover and metal casing. Weatherproof rating meets IP66 standards making the camera ideal for install into harsh environments. Dual Voltage input for 12VDC or 24VAC allow easy addition to existing professional security camera systems or flexible design for future surveillance systems. The KT&C KPC-VNE101NUV18 is a class leading CCTV Dome camera that is certain to deliver the highest quality video security.

KT&C KPC-VNE101NUV18 Main Features:

• 1/3”960H Interline CCD
• 700TVL Horizontal Resolution
• Vandal-Proof & Weather-Proof (IP66)
• Varifocal (2.8 ~12.0mm)
• True Day & Night (ICR) W Built-in 30 IR LEDs
• Fast Shutter Speed (1/60 ~ 1/100,000 sec)
• 2D Digital Noise Reduction (2D DNR)
• Adaptive Tone-curve Reproduction (ATR)
• Back Light Compensation (BLC)
• Highlight Compensation (HLC)
• 4-Zone (Privacy Masking / Motion Detection)
• Mirror /Brightness / Contrast /
Sharpness / HUE/ Gain
• On Screen Display (OSD) Menu
W/ Multi Language Support
• DC 12V / AC 24V Dual Power
• Multi-Language OSD
• Monitor Output Terminal for Easy Servicing


Signal System NTSC PAL
Image Sensor 1/3“ 960H Interline CCD
Scanning System 2:1 Interlace
Horizontal Resolution 700TV Lines
Scanning Frequency (H) 15.734 KHz 15.625 KHZ
Scanning Frequency (V) 59.94 Hz 50 Hz
Total Pixels 1020(H) x 508(V) 1020H) x 596(V)
Effective Pixels 976(H) x 494(V) 976(H) x 582(V)
Synchronization Internal
Lens Size Varifocal - 2.8-12mm
S/N More than 50dB (AGC Off)
Gamma R=0.45
Min. Illumination 0 Lux (IR LED On)
Shutter Speed 1/60 ~ 1/100,000 sec 1/50 ~ 1/100,000 sec
Day & Night True Mechanical Day & Night (ICR)
IR LED 30 IR LED’s, 850nm (IR Wavelength), Max. 100ft (IR Distance)
IR LED Operation On : 1 Lux, Off : 3 Lux
Video Output Level 1Vp-p Composite (75?)
IP Rating IP66 (Water Repellent)
On-Screen Display (OSD) Built-in (Inner Key / Joystick)
2DNR On / OFF (Level Adjustable)
ATR On / OFF (Level Adjustable)
White Balance ATW / Push / User1 / User2 / Anti CR / Manual / Push-lock
Privacy Masking 4 Zones
Mirror On / Off
Motion Detection 4 Zones
Other Function Brightness / Contrast / Sharpness / HUE / Gain
Language Option English / Japanese / German / French / Russian / Portuguese / Spanish
Operating Temperature -10 °C ~ 50 °C (14 °F ~ 122 °F)
Storage Temperature -20 °C ~ 60 °C (-4 °F ~ 140 °F)
Humidity Less than 80%RH
Power Supply DC 12V ±10% (Max. 450mA) / AC 24V ±10% (Max. 5.5W)
