KT&C KPC-LV40NU Vandal Proof Mini Dome Security Camera

Write a Review
Calculated at Checkout
  • KT&C KPC-LV40NU Vandal Proof Mini CCTV Dome Camera

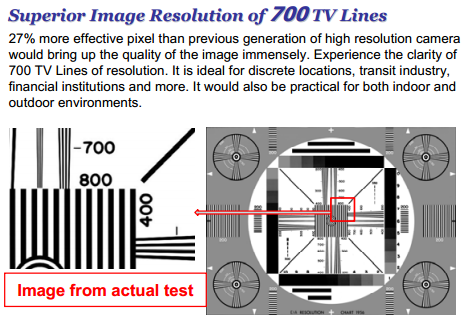

  • KT&C KPC-LV40NU 700TVL High Resolution
  • KT&C KPC-LV40NU Other Advancements
  • KT&C KPC-LV40NU diagram


KT&C KPC-LV40NU Vandal Proof Mini Dome Security Camera is a highly advanced low profile and rugged CCTV Dome Security camera. The unit features the latest Double Scan Super HAD CCD II for superior 700TVL High Resolution and WDR (Wide Dynamic Range) function. The KT&C KPC-LV40NU Vandal Mini Dome Camera is ultra-compact yet feature packed with attributes such as DSS (Digital Slow Shutter) for ultra-low light operation and 3D DNR (Digital Noise Reduction) for additional image clarity. In addition to the stunning high resolution 700TVL and advanced image processing technology the mini rugged dome camera includes support for Digital Zoom, Privacy Masking and motion detection for a best in class unit.
The unit is equipped with a 3.7mm Fixed wide angle lens but optional lenses include a 2.45mm super wide Lens or the more telephoto 6mm lens. The units low profile design is further improved with support for both 12VDC and 24VAC CCTV camera system power. The mini dome camera also includes a service monitor output and OSD for easy setup. The KT&C KPC-LV40NU Vandal Proof Mini Dome Security Camera is a rugged dome camera with an IP66 weatherproof rating. The unit is the perfect solution for all types of security camera systems and surveillance installations with an ability to adapt to a variety of needs.

KT&C KPC-LV40NU Main Features:

• 1/3" 960H Double Scan Super HAD CCD II
• 700TVL Horizontal Resolution
• Wide Dynamic Range (WDR)
• 3D Digital Noise Reduction (3DNR)
• Digital Slow Shutter up to x256 (DSS)
• Digital Zoom up to x3
• 15 zone Privacy Masking
• Area & Level adjustable Motion Detection
• 3.6mm Board Lens
• Fast Shutter Speed (1/60 ~ 1/100,000 sec)
• Vandal-Proof & Weather-Resistant (IP66)
• DC12V / AC24V Dual Power

Signal System NTSC PAL
Image Sensor 1/3? 960H Double Scan Super HAD CCD II
Scanning System 2:1 Interlace
Horizontal Resolution 700TV Lines
Scanning Frequency 15.734KHz(H), 59.94Hz(V) 15.625KHz(H), 50Hz(V)
Total Pixels 1020(H) x 508(V) 1020H) x 596(V)
Effective Pixels 976(H) x 494(V) 976(H) x 582(V)
Synchronization Internal
Lens Option f = 2.45mm, 3.7mm, 6mm Board Lenses
S/N Ratio More than 50dB (AGC Off, 3DNR ON)
Gamma: =0.45
Min. Illumination
0.1 Lux
0.000001 Lux (DSS ON)
Electronic Shutter Speed 1/60 ~ 1/100,000 sec 1/50 ~ 1/100,000 sec
Day & Night Digital Day & Night
Video Output Level 1Vp-p Composite (75O)
IP Rating IP66 (Water Repellent)
On-Screen Display (OSD) Built-in with Joystick
BLC ON / OFF (Level adjustment, Area selection)
HLC ON / AUTO / OFF (Level adjustment)
Digital Zoom Ratio 3x
Digital Slow Shutter OFF, 2 ~ 256 Field
Privacy Masking 15 Zones (Area adjustment)
WDR ON / OFF (Level adjustable)
Motion Detection 4 Zones (Level adjustable, Area adjustment)
AGC OFF, 6 ~ 36dB
Flickerless ON / OFF
2D / 3D DNR ON / OFF (Level adjustable)
Operating Temperature: -10 °C ~ 50 °C (14 °F ~ 122 °F)
Storage Temperature: -20 °C ~ 60 °C (-4 °F ~ 140 °F)
Power Supply
DC12V ±10% Max. 140mA (Input Voltage: DC8V ~ 15V)
Dual: DC12V ±10% Max. 190mA / AC24V ±10% Max.2.5W
Weight & Dimension 500g / 139mm(H) x 49mm(W) x 134mm(D)
