KT&C KPC-N601NU IR Bullet Security Camera 700TVL

  • KT&C KPC-N601NU INfrared Bullet Cameras
  • KT&C KPC-N601NU Key Features

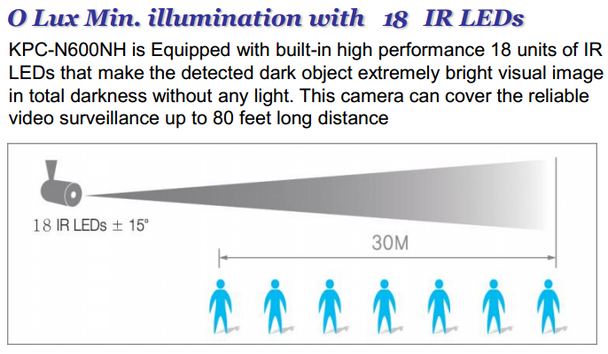

  • KT&C KPC-N601NU IR Infrared DIstance

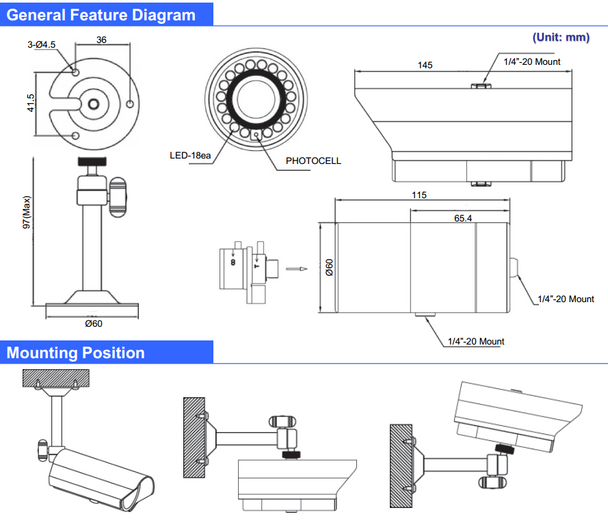

  • KT&C KPC-N601NU measurements and mounting
Calculated at checkout

Product Description

KTNC KPC-N601NU IR Bullet Security Camera is a cost effective outdoor Infrared Security Camera that delivers all of the best features. The IR Camera is equipped with the latest Sony Exview HAD CCD II sensor and produces razor sharp 700TVL High Resolution Video Surveillance. The KT&C IR Bullet Camera KPC-N601NU is a true day/night camera with 18 integrated IR LEDs for absolute night vision up to 80ft. The Camera includes a built-in varifocal 2.8-12mm lens perfect for general surveillance applications. Another key feature is the cameras have IP67 weatherproof construction making them ideal for even tough environmental conditions. The KT&C KPC-N601NU IR Bullet Security Cameras are available in both 12VDC KPC-N601NU-DC12V and model KPC-N601NU-AC24V for 24VAC power options. The standard model is available in Black but optional Ivory colored is available upon request. The KT&C KPC-N601NU is a high grade CCTV surveillance camera perfect for professional Security Camera Systems and Surveillance Installations.

KT&C KPC-N601NU Main Features:

  • 1/3" 960H SONY EXview HAD CCD II
  • Ultra-High Resolution of 700TVL
  • Min. Illumination of 0 Lux (IR LED On)
  • True Day & Night with ICR Mechanism
  • 18 units IR LED with Max. (80ft)
  • 2.8-12mm Varifocal DC Auto Iris Lens
  • Dual Window Structure (DWS)
  • Service Video Connector
  • Outstanding Durability with IP67
  • KPC-N601NU-DC12V
  • KPC-N601NU-AC24V

W for white version

KPC-N601NU Specifications:

Image Device: 1/3" 960H SONY EXview HAD CCD II
Scanning System: 2 : 1 Interlace
Scanning Frequency: NTSC: 15.734 KHz(H), 59.94 Hz(V) / PAL: 15.625 KHz(H), 50 Hz(V)
H. Resolution: 700 TVL
Total Pixels: NTSC: 1020(H) x 508(V) / PAL: 1020(H) x 596(V)
Effective Pixels: NTSC: 976(H) x 494(V) / PAL: 976(H) x 582(V)
S/N Ratio: More than 50dB (AGC Off)
Min. Illumination: 0 Lux (IR LED On)
Sync. System: Internal
Gamma: r = 0.45
Video Output: 1.0 Vp-p Composite (75?)
Lens: Varifocal Auto IRIS & DN Lens Built-in
Electronic Shutter: NTSC: 1/60 sec / PAL: 1/50 sec
Aspheric Varifocal DC IRIS Lens (ICR):
Focal Length Lens Options: 2.8 ~ 12mm
Aperture with Lens options: F1.2 ~ 360
Day & Night: True Day & Night with ICR Mechanism
IR LED: 850 nm, 18 ea., up to 20m
IR LED Operation: On (1 Lux), Off (3 Lux)
IP Rating IP67 (Water Proof)
Operating Temperature: 14°F ~ 122°F (-10°C~ + 50°C)
Storage Temperature: -4°F ~ 140°F (-20°C~ + 60°C)
Power Consumption:
DC12V : DC12V ±10% Max. 350 mA
Dual : DC12V ±10% Max. 450 mA / AC24V ±10% Max. 5.6 W
Dimensions: (mm)60F x 115
Weight: Approx. 497 g


DC12V / AC24V Dual Voltage

Optional Colors

Black / Ivory
