KTNC

KT&C KPC-N751NUB High Power IR Bullet Security Camera 700TVL

Write a Review
SKU:
KPC-N751NUB
  • KT&C KPC-N751NUB infrared bullet camera
  • KT&C KPC-N751NUB features

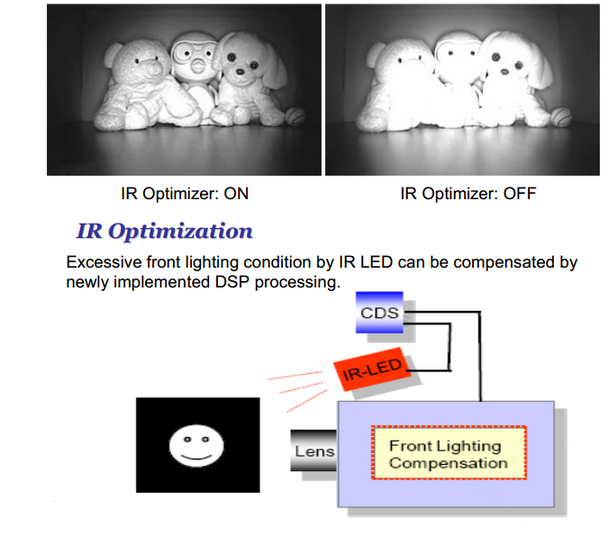

  • KT&C KPC-N751NUB IR Infrared Optimization

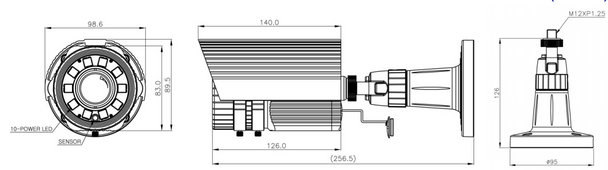

  • KT&C KPC-N751NUB measurements
Contact Us for Replacements

Description

NOTICE: This product has been discontinued or is EOL and therefore in most cases no longer available - Please contact our Experts or search the category link below or other related categories.

https://www.a2zsecuritycameras.com/cctv-security-cameras.html

KT&C KPC-N751NUB IR Bullet Security Camera is a powerful outdoor ready Infrared CCTV Bullet Camera delivering the latest in professional features. The KT&C KPC-N751NUB Infrared Bullet Camera provides razor sharp 700tvl High Resolution with a superior Sony Exview HAD CCD II Image sensor. The KPC-N751NUB KT&C Bullet also includes True Day Night with 10 high powered integrated IR LEDs for absolute night vision up to 70m or about 230ft! The unit further includes intelligent IR Optimizer function which uses the cameras DSP to optimally correct LED over illumination. Other image enhancements such as ATR, BLC and HLC are also built-in for superior Video Surveillance in challenging lighting conditions. Also on-board is a 5-50mm varifocal lens allowing the KT&C KPC-N751NUB IR Bullet Security Camera to adapt to a variety of short range and long range surveillance needs.
The unit is built to withstand harsh weather and environments with a weatherproof IP67 rating, cable feed through mount, sun-shield and optional heater for extended operating range. Everything from OSD to specialized functions like dead pixel correction, motion detection and privacy masking are simply further benefits of this superb Infrared CCTV Bullet Camera. The KT&C KPC-N751NUB IR Bullet Security Camera is absolutely a professional choice delivering the latest advancements in CCTV Security Camera Systems.

KT&C KPC-N751NUB Main Features:

Superior High Resolution 700TVL
• 10 Units of High Power LEDs, up to 230ft (70m)
• Smart IR (IR Optimization)
• Focus Adjustment Helper (Focus Adjust Window)
• Varifocal Auto IRIS Lens f=5~50mm (F1.4)
• Second Video Output Terminal for Easy Servicing
• Waterproof (IP67) with Dual Window Structure
• Adaptive Tone-curve Reproduction (ATR)
• Back Light Compensation (BLC)
• Highlight Compensation (HLC)
• Privacy Masking (Transparency and Mosaic)
• Motion Detection (Available in 4 Different Colors)
• Compensation [White Dot (Dead Pixel) Compensation]
• Mirror Mode Available
• 12VDC / 24VAC

KPC-N751NUB Specifications

Image Device: 1/3" 960H SONY EXview HAD CCD II
Scanning System: 2 : 1 Interlace
Scanning Frequency: NTSC: 15.734 KHz(H), 59.94 Hz(V) / PAL: 15.625 KHz(H), 50 Hz(V)
H. Resolution: 700 TVL
Total Pixels: NTSC: 1020(H) x 508(V) / PAL: 1020(H) x 596(V)
Effective Pixels: NTSC: 976(H) x 494(V) / PAL: 976(H) x 582(V)
S/N Ratio: More than 50dB (AGC Off)
Min. Illumination: 0 Lux (IR LED On)
Sync. System: Internal
Gamma: r = 0.45
Video Output: 1.0 Vp-p Composite (75?)
Lens: Varifocal Auto IRIS & DN Lens
Electronic Shutter: NTSC: 1/60 sec / PAL: 1/50 sec
BLC: OFF / BLC / HLC
White Balance: ATW / PUSH / MANUAL / PUSH-LOCK
2DNR: On / Off (Level Adjustable)
ATR: On / Off (Level Adjustable)
Motion Detection: Zone 4ea
Privacy Masking: Zone 4ea
Language: ENGLISH, CHINESE, RUSSIAN, SPANISH, GERMAN, FRENCH, PORTUGUESE, JAPANESE
Day & Night: True Day & Night with ICR Mechanism
OSD: Built-in
IR LED: 850 nm, High Power LED 10 ea., up to 70 m
IP Rating: IP67 (Water Proof)
Operating Temperature: 14°F ~ 122°F (-10°C ~ +50°C) / Heater On: -40°F ~ 122°F (-40°C ~ +50°C)
Storage Temperature: -4°F ~ 140°F (-20°C~ + 60°C)
Power Consumption
DC12V(±10%) Max. 850mA, 1.1A (Heater On)
AC24V(±10%) Max. 10W, 21W (Heater On)
Dimensions (mm) 99(W) x 83(H) x 126(D)
Weight Approx. 1.4 kg
Options RS-485, (Heater Optional Special Order)
