KT&C KPC-BSP6300NU Day/Night Security Camera 700TVL

Write a Review
Calculated at Checkout
  • KT&C KPC-BSP6300NU Day/Night Security Camera 700TVL
  • KT&C KPC-BSP6300NU Key Features
  • KT&C KPC-BSP6300NU feature overview

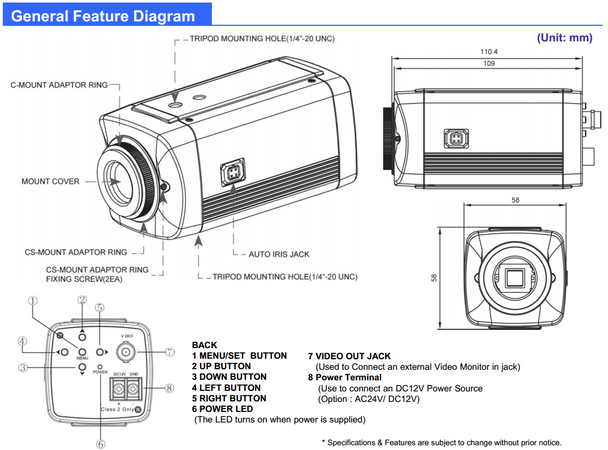

  • KT&C KPC-BSP6300NU diagram


KT&C KPC-BSP6300NU Day/Night Security Camera is a professional grade CCTV Box style Surveillance Camera loaded with the latest in advanced features. The Security Camera is a True Day/Night camera with 700TVL High Resolution Imaging. In addition to superb resolution the camera offers a variety of advanced image processing selections like DNR, ATR and HLC for challenging lighting conditions. The KT&C KPC-BSP6300NU Box Security Camera supports CS or C mount style lens for both DC and manual Iris models.
KT&C KPC-BSP6300NU Day/Night Security Camera is able to be used indoors or outdoors (with a weatherproof camera housing) and provides excellent surveillance around the clock. The Security Camera also has feature like Privacy Masking, Motion Detection and OSD (on screen display) for easy configuration. The KT&C KPC-BSP6300NU CCTV Cameras also support 12VAC or 24VAC dual voltage input making it easily adaptable to a variety camera systems and needs.

KT&C KPC-BSP6300NU Main Features:

• 1/3” 960H Interline CCD
• 700TVL Horizontal Resolution
• True Day & Night (ICR)
• C/CS Mount Lens
• Fast Shutter Speed (1/60 ~ 1/100,000 sec)
• 2D Digital Noise Reduction (2D DNR)
• Adaptive Tone-curve Reproduction (ATR)
• Back Light Compensation (BLC)
• Highlight Compensation (HLC)
• 4-Zone Privacy Masking
• 4-Zone Motion Detection
• Mirror /Brightness / Contrast / Sharpness / HUE/ Gain
• On Screen Display (OSD) Menu W/ Multi Language Support
• DC 12V / AC 24V Dual Power
• Multi-Language OSD

KT&C BSP6300NU Specifications:

Signal System NTSC PAL
Image Sensor 1/3“ 960H Interline CCD
Scanning System 2:1 Interlace
Horizontal Resolution 700TV Lines
Scanning Frequency (H) 15.734 KHz 15.625 KHZ
Scanning Frequency (V) 59.94 Hz 50 Hz
Total Pixels 1020(H) x 508(V) 1020H) x 596(V)
Effective Pixels 976(H) x 494(V) 976(H) x 582(V)
Synchronization Internal
Lens C/CS Mount
Lens Type Manual/ DC
S/N More than 50dB (AGC Off)
Gamma r = 0.45
Min. Illumination 0.0001 Lux / Faceplate
Shutter Speed 1/60 ~ 1/100,000 sec 1/50 ~ 1/100,000 sec
Day & Night True Mechanical Day & Night (ICR)
Day & Night Function Auto/Color/BW
Video Output Level 1Vp-p Composite (75?)
On-Screen Display (OSD) Built-in
2DNR On / OFF (Level Adjustable)
ATR On / OFF (Level Adjustable)
White Balance ATW / Push / User1 / User2 / Anti CR / Manual / Push-lock
Privacy Masking 4 Zones
Mirror On / Off
Motion Detection 4 Zones
Other Function Brightness / Contrast / Sharpness / HUE / Gain
Language Option English / Japanese / German / French / Russian / Portuguese / Spanish
Operating Temperature -10 °C ~ 50 °C (14 °F ~ 122 °F)
Storage Temperature -20 °C ~ 60 °C (-4 °F ~ 140 °F)
Humidity Less than 80%RH
Power Supply DC 12V ±10% (Max. 180mA) / AC 24V ±10% (Max. 2.9W)
