Geovision GV-VD1530 1.3MP IR Vandal Dome IP Camera Super Low Lux

Write a Review
Calculated at Checkout
  • Geovision GV-VD1530 1.3 MegaPixel IR Vandal Dome IP Camera IP67
  • Geovision GV-VD1530 IR Vandal Dome IP Camera IP67 Super Low Lux
  • Geovision GV-VD1530 Internal Dome Overview Diagram

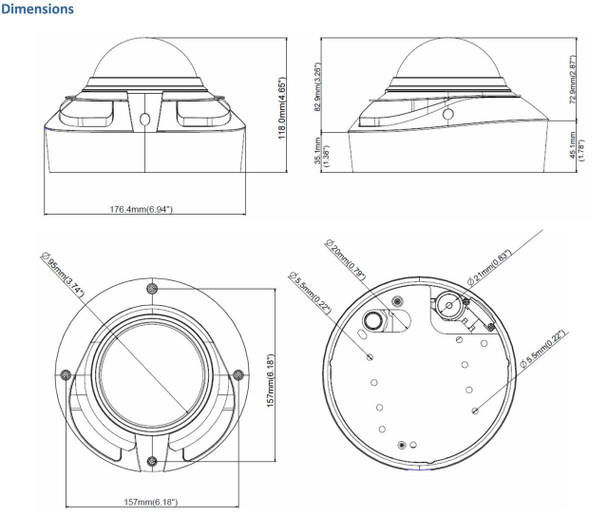

  • Geovision GV-VD1530 dome dimensions

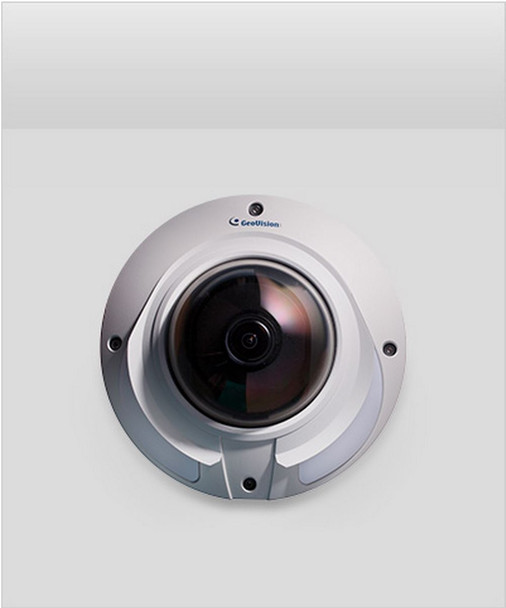

  • Geovision GV-VD1530 Top view Vandal Proof Dome Series II
  • Geovision Electrical Power Box Dome Adapter
  • Geovision Vandal Dome In-Ceiling Mounted
  • Geovision Wall Pendant Mount

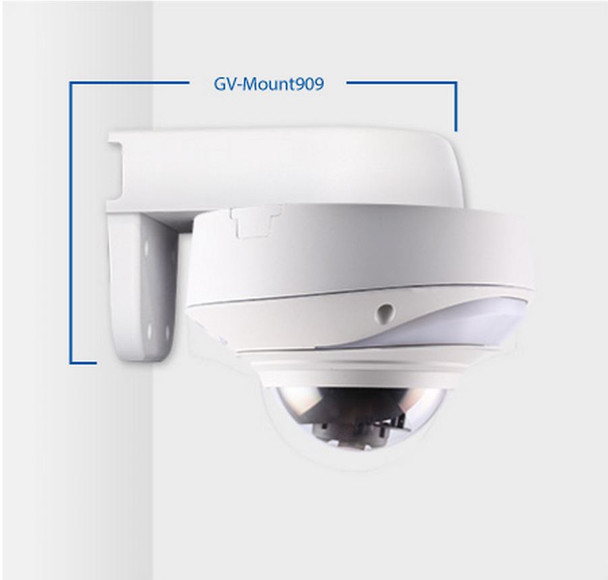

  • Geovision Vandal Dome with L-Type Wall Bracket
  • Geovision Vandal Dome with Mini Pendant Wall Bracket
  • Geovision Vandal Dome with Ceiling Mount Straight Tube Pendant Mount with Box
  • Geovision Vandal Dome with Ceiling Mount Straight Tube Pendant Mount

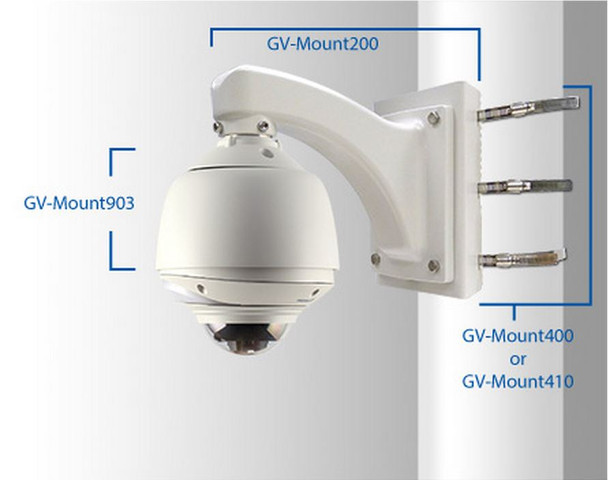

  • Geovision Vandal Dome Wall Pendant Mount with Pole Mount Adapter

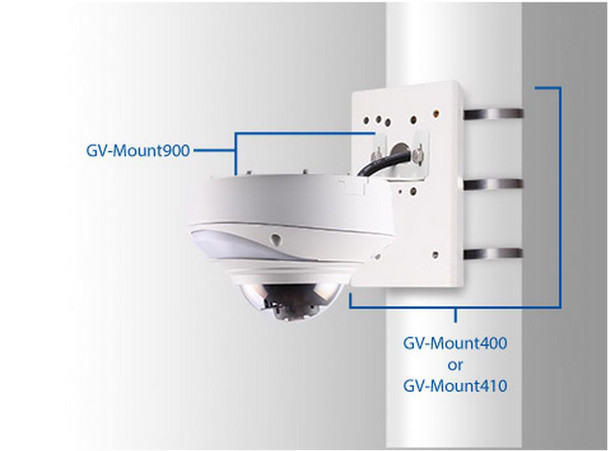

  • Geovision Vandal Dome Wall L-Bracket with Pole Mount Adapter

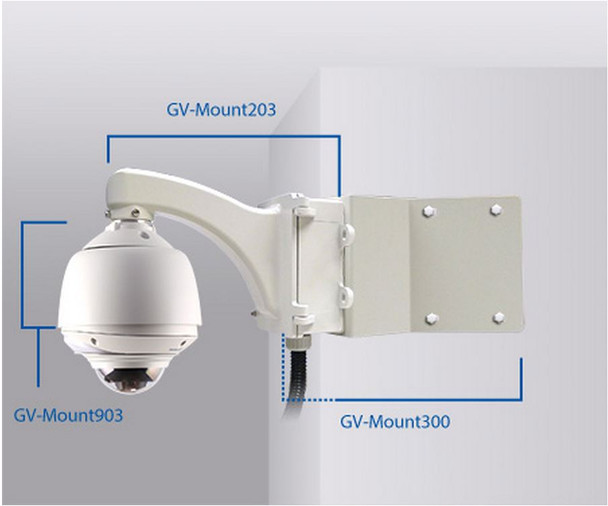

  • Geovision Vandal Dome Convex Corner Wall Pendant Mount with Box

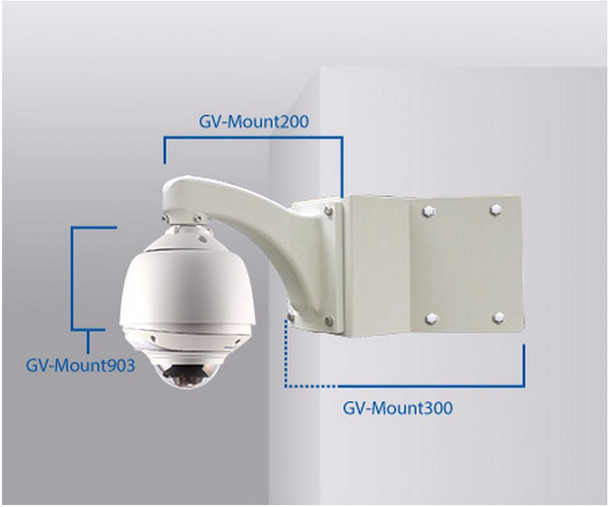

  • Geovision Vandal Dome Convex Corner Wall Bracket and Pendant Mount
  • Geovision Vandal Dome Concave Corner Wall Pendant Mount


Geovision GV-VD1530 1.3 Megapixel Vandal Proof IR Dome IP Camera unveils a new generation of innovative designs for outdoor dome security cameras. This model yields a 1.3MP super low light sensor that despite having an IR Cut-filter for true day/night is able to produce vivid color imaging in extremely low lux conditions. When it comes to low light or even no light, the new line of Geovision Vandal Proof Dome IP Cameras include a unique high power array of specially built IR LED for best in class Infrared illumination and subsequently superior night vision. Countless benefits including Dual Streaming with H.264, Audio, Alarm I/O, and Motion Detection to Local Recording via SD card are all included. Superior Image performance with WDR and DNR are also realized while an easily navigated and feature rich web interface promises you will be satisfied in all aspects. Dozens of other advantages can be found such as ONVIF support, but 3 Axis adjustment, IP67 weatherproof, IK10 high impact ratings plus triple power input selection assure easy integration with nearly any security camera system.


Geovision GV-VD1530 Main Features:

  • 1/3” progressive scan 1.3MP HD CMOS Sensor
  • Dual video streams, individually configured H.264 or MJPEG
  • Real-time 30fps at Full 1.3 Megapixel HD (1280 x 1024)
  • Varifocal megapixel lens 3-9mm DC Iris
  • 3-axis adjustment (pan/tilt/roll)
  • Super Low Lux plus IR-cut filter for True Day/Night with Color or B/W at 0.01 Lux
  • Six High Power Case Mounted IR LEDs, Infrared Range of 30m (100 ft.)
  • Intelligent IR counters over exposure for detailed Night Vision
  • Wide Dynamic Range (WDR), 3D noise reduction (DNR), Defog
  • Motion detection, Tampering alarms and Privacy masking
  • Diverse Network Functions: IP address filtering, RTSP, FTP, QoS, UPnP, HTTPs, DynDNS, more
  • Two way audio with external Microphone Input and Speaker Output
  • Alarm I/O for Sensor Input and Relay Output
  • TV-out support for composite display
  • On-board Recording with micro SD card slot (SD/SDHC)
  • ONVIF (Profile S) conformance
  • Supports iPhone, iPad, Android & 3GPP mobile viewing
  • Support for 31 languages on Web interface and comprehensive monitoring controls
  • Outdoor ready, Weatherproof IP67 and Vandal Resistant, High Impact IK10+ rated
  • Operating Temperature: -30°C ~ 50°C (-22°F ~ 122°F)
  • Dimensions: ø 176.5mm x 118mm (6.9" x 4.6")
  • Weight: 1.76 kg (3.88 lbs.)
  • 12VDC, 24VAC or PoE+ (IEEE 802.3at)


Unmatched IP Surveillance:
The latest Geovision Vandal Proof IR Dome IP Cameras promise a best in market design with their unique externally mounted IR LED arrays. Built into the body of the Vandal Proof Dome security camera is a set of high powered IR LEDs that offer superior IR illumination. They deliver an improved distribution of IR lighting but also eliminates issues like internal IR Reflection often experienced by traditional styles. Intelligent IR further enhances your video security with IR night vision that will not over expose the subjects. In addition to this, the Geovision GV-VD1530 Vandal IR Dome IP Cameras also offer extremely low light color viewing enabling you to achieve all sorts of IP Surveillance demands. This unit enables up to 30fps, Real-time 1.3 Megapixel (1280 x 1024) video streaming with optional H.264 or MJPEG compression. Multiple streams and image settings can also be established to help reach many bandwidth and storage requirements. Video performance is exceptional in nearly any situation you can derive as WDR (Wide Dynamic Range) and DNR (Digital Noise Reduction) along with a variety of user configurable video settings guarantee diverse adaptability.


Smart Design, Intelligent Functions:
All around the Geovision GV-VD1530 IR Vandal Dome Security Cameras deliver a solid solution for your IP Surveillance System requirements be it a large multi-camera deployment or a stand-alone video security project. The units offer on-board intelligence from tamper to motion detection and Local SD Card recording to FTP upload. These Rugged Dome Security Cameras likewise grant access to a wide set of supported IT functions and network protocols such as DynDNS, HTTPs, RTSP, QoS, UPnP, 3GPP/ISMA or the highly popular ONVIF compliance. A highly functional web interface also promises in-depth control of live monitoring directly from the camera with Digital PTZ, Picture in Picture, Alarm I/O and Two Way Audio as just a few of the possible actions. Many other integrated advancements like Defog or visual automation to a local TV video output simply expand the possibilities even further.


Rugged Construction, Innovative Design:
The Geovision GV-VD1530 1.3M Super Low Lux Vandal IR Dome IP Cameras are an all-around great line of IP Security Cameras for professional installation. Outfitted with a three axis adjustment and Varifocal 3-9mm DC Iris lens not to mention countless optional mounting adapters these Vandal Dome IP Cameras can easily adapt to nearly any indoor or outdoor install requirement. The device is built to operate as well in harsh temperatures such as down to -22°F or to withstand the harshest weather with an environmental rating of IP67 weatherproof. The units are equally rugged, boasting an IK10 High Impact, Vandal Resistant rating able to withstand even violent attacks. Another beneficial attribute is these Vandal Dome Security Cameras allow triple power input with 12VDC, 24VAC or PoE+ (High PoE IEEE 802.3at) support for easy flexibility with any kind of security system installation.


Last Updated March 29, 2015
