Geovision GV-EDR1100 1.3MP Vandal IR Dome IP Camera

Write a Review
Calculated at Checkout
  • Geovision GV-EDR1100 Rugged MIni Dome IP Camera
  • Geovision GV-EDR1100 Rugged MIni Dome IP Camera Front View

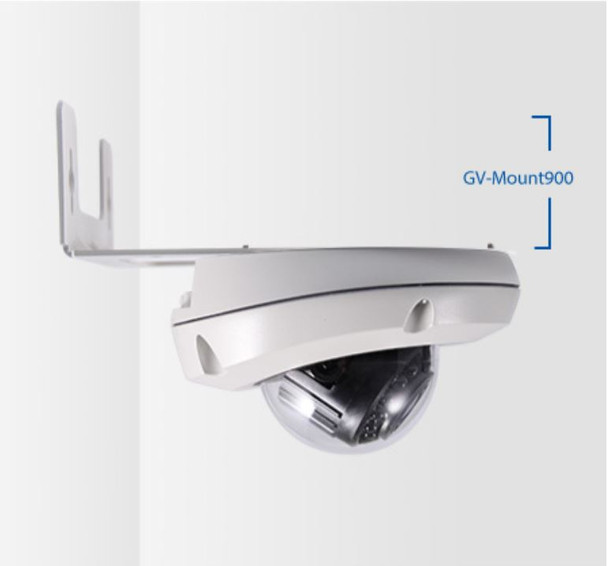

  • Geovision GV-EDR1100 Rugged MIni Dome IP Camera Wall Bracket
  • Geovision GV-EDR1100 Rugged MIni Dome IP Camera feed through Wall Bracket
  • Geovision GV-EDR1100 Rugged MIni Dome IP Camera


Geovision GV-EDR1100 1.3MP IR Vandal Dome IP Camera is the latest addition to the Target series network security cameras. This compact, low profile mini dome camera includes powerful Low Light performance with Day/Night operation and Intelligent IR night vision. The units provide real-time 1.3 Megapixel resolution and dual streaming with H.264 or MJPEG codecs. Ultra Rugged these Mini IP Dome Security Cameras feature a superb weatherproof design and vandal resistant, high impact construction. Smart features and functions are found in all aspects from highly configurable video to numerous networking capabilities. ONVIF Compliance ensures universal support and PoE promises easy installations. Geovision GV-NVR software is available free with the purchase of Geovision IP cameras and this units low cost simply equals up as a top notch choice.

Geovision GV-EDR1100 Main Features:

  • 1/3" progressive scan low lux CMOS
  • Dual streaming with H.264 or MJPEG compressions
  • Up to 30 fps at 1280 x 1024 (1.3 Megapixel)
  • Intelligent IR Avoids Over Exposure 15m (50ft) Infrared Range
  • Megapixel Lens: GV-EDR1100-2F 3.8mm or GV-EDR1100-0F 2.8mm
  • Day/Night Automatic IR-cut filter
  • Vandal Resistant, High Impact (IK10 for metal casing)
  • Rugged Weatherproof Rating IP67
  • 2-axis mechanism (pan / tilt)
  • Wide Dynamic Range (WDR) for High Contrast Scenes
  • On-Board Intelligence Defog, Motion detection, Tampering alarm, Text overlay and Privacy mask
  • IP address filtering, HTTPs, DynDNS, FTP, NTP, QoS, RTSP, SNMP, SMTP, UPnP
  • NAS Recording via GV-Edge Recording Manager (Windows, Mac version)
  • Supports iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF (Profile S) conformance
  • 12VDC or PoE (IEEE 802.3af) Power Input
  • Dimensions: ø 114mm x 62.8mm (4.49’’ x 2.47”)
  • Weight: 600 grams (1.32 lbs)


High Performance Video Surveillance:
Real-time 30fps 1.3 Megapixel Resolution with dual streaming (MJPEG or H.264) and individually configurable video streams allows customized bandwidth management. The units include a 1/3" progressive scan CMOS equipped with a mechanical IR Cut-filter plus Smart Infrared (IR) illumination for perfect night imaging. The unit likewise includes in-depth image controls with the addition of functions like WDR (Wide Dynamic Range) for applications with challenging lighting conditions. Available with a standard 3.6mm or wide angle 2.8mm lens, overall these units produce crystal clear general IP video security in nearly any environment.

Intelligent Functions:
Despite its ultra-low profile design the Geovision GV-EDR1100 Target Series 1.3MP IR Vandal Mini Dome is a highly advanced IP security cameras. It is outfitted with various on-board technologies including Tamper and Motion Detection, Privacy Masking to security features like IP address filtering. Numerous IT network protocols are also supported including UPnP, QoS, RTSP, FTP, SNMP and many more. Not only will users benefit from a well-developed security camera, but the wide range of Geovision software solutions included at no extra cost. Applications like GV-NVR to GV-Edge Recording Manager or even Mobile Viewing Apps ensure complete IP Security System deployments, with maximum professionalism yet minimal cost.

Professional Build:
Geovision's products have a history for long life expectancy and quality performance at a reasonable cost. The GV-EDR1100 Megapixel Mini Rugged Dome IP cameras are undoubtedly a best in class solution for a wide range of indoor or outdoor security system needs. Their IP67 weatherproof rating and IK10 vandal proof design ensure continued operation in even the harshest conditions. These units allow both 12VDC or PoE (Power over Ethernet) power sources and a variety of mounting accessories to help easily customize to exact project requirements. The web interface is easily managed and loaded with configurable options and even supports over thirty languages. ONVIF compliance is just one more of many unmentioned factors that make the Geovision GV-EDR1100 a great choice for nearly any IP security camera system.



Included in the Box:

Target Mini Fixed Rugged Dome
Screw x 2
Screw Anchor x 2
Focus Adjustment Clip
Installation Sticker
Conduit Converter
RJ-45 Connector
Waterproof rubber set (for RJ45) & Waterproof rubber set (for RJ45 and DC12V)
Torx Wrench
Silica Gel Bag x 2 & Sticker (for Silica Gel Bag) x 2
Concave hexagon Wrench
Screw for Conduit Converter x 2
GV-IPCAM H.264 Quick Start Guide
GV-IPCAM H.264 Software DVD
GV-NVR Quick Start Guide
GV-NVR Software DVD

Optional Mounting Accessories:

GV-Mount900 Wall Mount Bracket
GV-Mount909 Wall Mount Bracket (Feed Through Cable)
GV-Mount910 Power Box Mount Bracket
GV-Mount913 Power Box Mount Bracket

Optional Models:

GV-EDR1100-0F 2.8mm
GV-EDR1100-2F 3.6mm

Last Updated March 22, 2015
